INSTALLATION
13
INSTALLATION
12
Connect the Computer
4. Using the VGA cable (Belkin part number F1D9100-XX), connect the
male end of the cable to the VGA port of the computer, and the
female end to the VGA port of the KVM Switch labeled “VGA1”.
See Fig. 6.

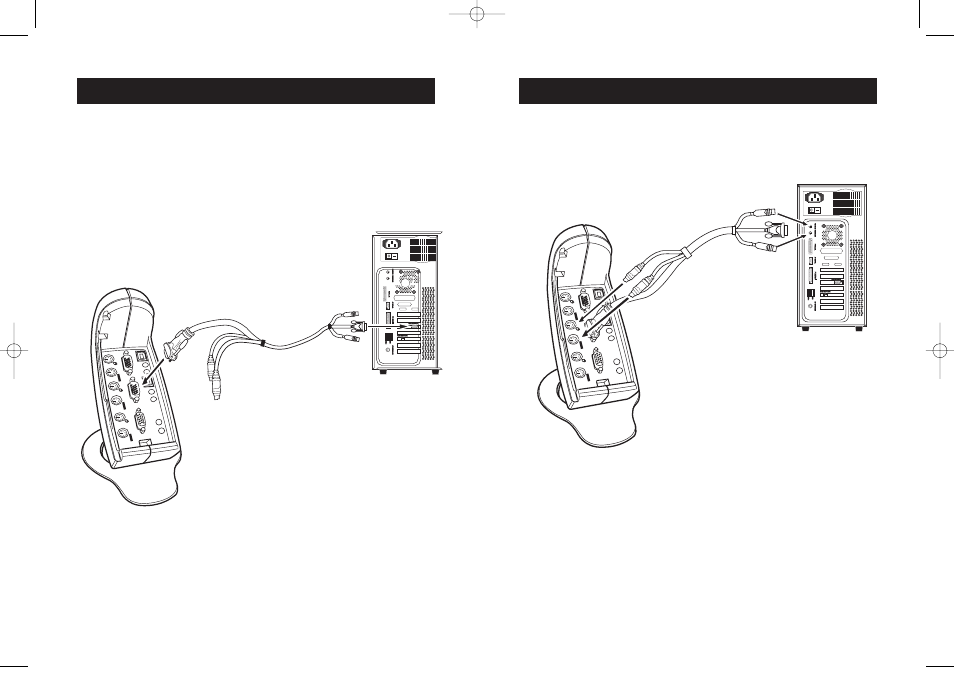

Fig. 6
5. Connect the PS/2 keyboard and PS/2 mouse cables (Belkin part
number F1D9100-XX), to the appropriate ports on the KVM Switch.
See Fig. 7.
6. Repeat steps 4 and 5 for each additional computer you wish
to connect.
Fig. 7
