Steele Products SP-GG350 - Manual (Page 51)

3250W Generator

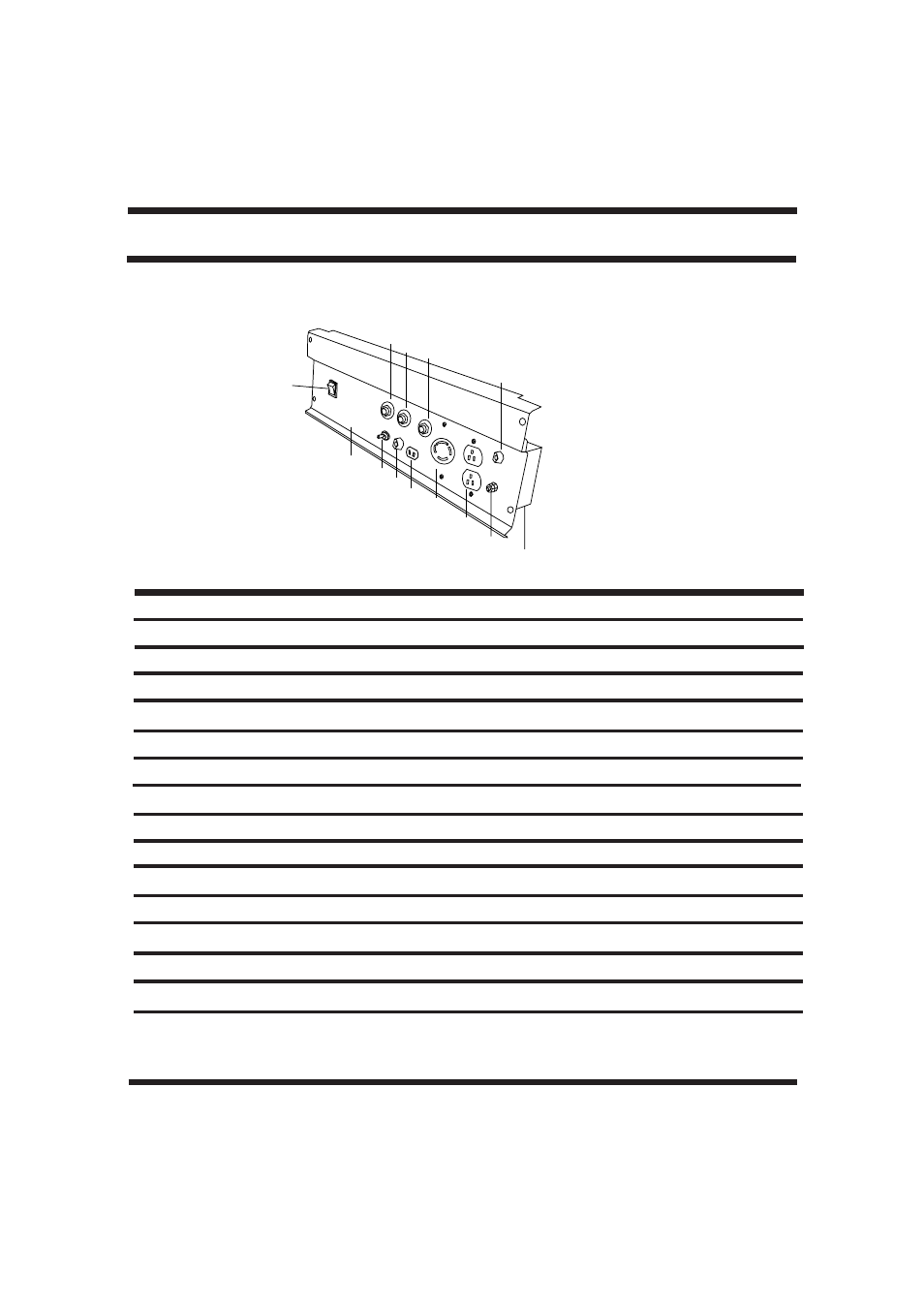

Control box assy.
APA Part No. Description Part. No
Q
SP-GG350-Q-01-JD ENGINE SWITCH ASSY. JD3000-1-Q-01
SP-GG350-Q-02-JD CONTROL PANEL COMP. JD3000-1-Q-02
SP-GG350-Q-03-JD VOLTAGE SWITCH JD3000-1-Q-03
SP-GG350-Q-04-JD OIL ALERT LAMP JD3000-1-Q-04
SP-GG350-Q-05-JD DC 12V OUTPUT JD3000-1-Q-05
SP-GG350-Q-06-JD 120V/240V RECEPTACLE JD3000-1-Q-06
SP-GG350-Q-07-JD 120V RECEPTACLE JD3000-1-Q-07
SP-GG350-Q-08-JD EARTH TERMINAL SCREW JD3000-1-Q-08
SP-GG350-Q-09-JD CONTROL PANEL BACK BOX JD3000-1-Q-09
0 1 - Q - 1 - 0 0 0 3 D J R O T A C I D N I D J - 0 1 - Q - SP-GG350
SP-GG350-Q-11-JD CIRCUIT PROTECTOR(10A) JD3000-1-Q-11
SP-GG350-Q-12-JD CIRCUIT PROTECTOR(13A) JD3000-1-Q-12
