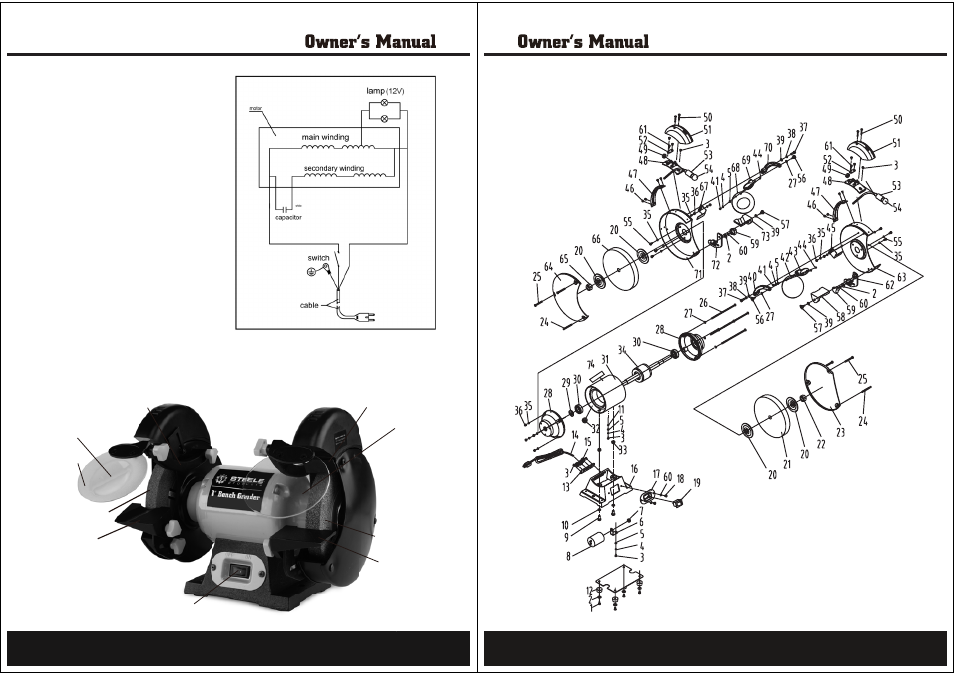

WIRING DIAGRAM

KNOW YOUR BENCH GRINDER

10

Eye Shield

ON/OFF Switch

Coarse Grinding

Wheel (36 Grit)

Medium Grinding
Wheel (60 Grit)

Right Tool Rest

Right Spark Guard

Eye Shield

Left Tool Rest

Eye Shield Mounting Bracket

Magni

łer

PARTS

11
