Always disconnect the bench grinder from the power source before performing
any assemblyguard.or adjustment. Failure to do so could result in accidental starting and possible
serious personal injury.

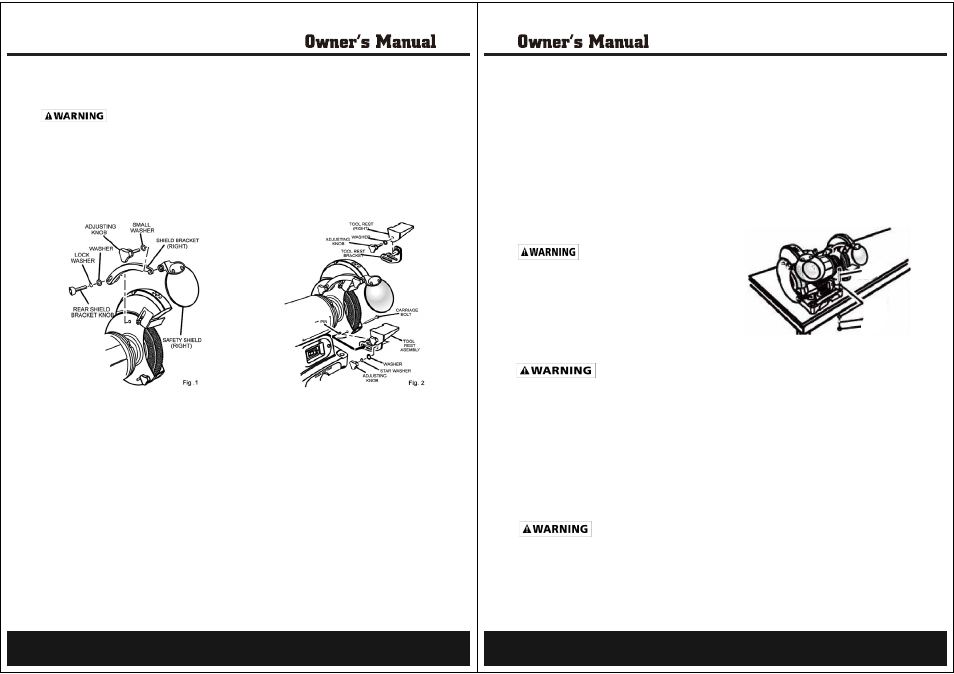

Eyeshield Assembly (Fig 1)
1. Fasten the safety shield to the shield bracket using the adjusting knob and small washer.
NOTE: The slotted part of the safety shield bracket must face towards the grinding wheel guard.
2. Attach the safety shield assembly and bracket to the work wheel guard using a washer, lock washer
and rear shield bracket knob.
ASSEMBLY AND INSTALLATION
Tool rest assembly (Fig 2)
3. Remove the adjusting knob, star washer, and washer from the carriage bolt on the lower portion
of the wheel. (Fig. 2)
4. Using the slotted screw, star washer, washer and adjusting knob, attach the tool rest bracket to
the inside of the wheel guard as shown.
NOTE: The grooved tool rest mounts on the left side.
NOTE: the tool rest bracket’s lower slot must be positioned over the pin on the guard.
With the remaining adjusting knob, install the tool rest to the bracket.
NOTE: Adjust the distance between the wheel and the tool rest to maintain 1/16 in. or less separation
as the diameter of the wheel decreases with use.
6
INSTALLATION (Fig. 3)
Mounting Grinder To a Work Bench
If grinder is to be used in a permanent location, it should be fastened securely to a firm supporting
To be efficient and work as designed, your tools should
accidents. Bench Grinders are ideal for sharpening tools
and for removing rust or corrosion.
Never sharpen or grind anything made of aluminum.
1. Use 1/4 in. bolts, washers, and nuts (not included). The bolt length should be 1-1/2 in. plus the
thickness of the workbench .
1. Eyeshield Adjustment
2. Locate and mark the holes where the grinder is to be mounted.
The see-through eyeshield allows users to see operation clearly and work precisely. Eyeshields can
3. Drill four 3/8 in. diameter holes through workbench.
2. Tool Rest Adjustment
4. Place grinder on workbench, aligning holes in base with holes drilled In workbench.
The appropriate adjustment of tool rests provides the correct working angle to do efficient grinding.
5. lnsert four 1/4 in. diameter bolts, flat washers, lock washer and attach hex nuts securely.
This adjustment can be done by regulating its related adjusting knob. Due to normal wear of the
grinding wheel, it is necessary to adjust the tool rest.
3. Speed Adjustment
Fig.3 Mounting grinder to the workbench.
The grinder is equipped with a variable speed control knob. When the variable speed control knob
is positioned to the furthermost left position (counter clockwise), the RPM is 2000. The rotation
increases as the knob is turned clockwise. RPM is 3450.
MAINTENANCE
When servicing, use only identical replacement parts. Use of any other
part may create hazard or cause product damage.
General
Keep the bench grinder clean. Frequently remove dust from working parts and beneath the grinder.
Make sure the bench grinder operates properly Frequently check screws , nuts, and bolts for tightness.
OPERATION
Always wear safety goggles
NOTE: This bench grinder has made sufficiently lubricated at the factory, therefore, the bench
or safety glasses with side shields during
power tool operation or when blowing dust.
grinder does not need any additional lubrication during the lifetime of the grinder.
If operation is dusty, wear a dust mask.
If operation is dusty ,wear a dust mask.
ASSEMBLY AND INSTALLATION
7
surface, such as a workbench.
be adjusted up and down.
be kept sharp. Dull tools can and will cause
such as chisels, planer blades, scissors, etc.,
Hex Bolt
Hex Nut
Washer
Washer
Lock
Washer
