Owner’s Manual
Compressor (cont’d)
COMPRESSOR CONTROLS
Power Button: This switch turns the compressor power ON and OFF.
Pressure Switch: This switch turns on the compressor. It is operated automatically
when the power switch is in the ON position, it allows the compressor to start up or
shut down automatically, without warning, depending upon air demand.
Pressure Relieve Valve: If the pressure switch does not shut down the motor when
pressure reaches the preset level, this valve will pop open automatically to prevent
over pressurization. To operate manually, pull the ring on the valve to relieve air
pressure in the tank.
Pressure Gauge: This gauge measures the pressure level of the air stored in
the tank. It is not adjustable by the operator, and does not indicate line pressure.
Air Pressure Regulator: This air pressure regulator enables you to adjust line
pressure to the tool you are using.
Air valve swicth: Releases air to the air tank
Petcock: Used to releases moisture from tank.

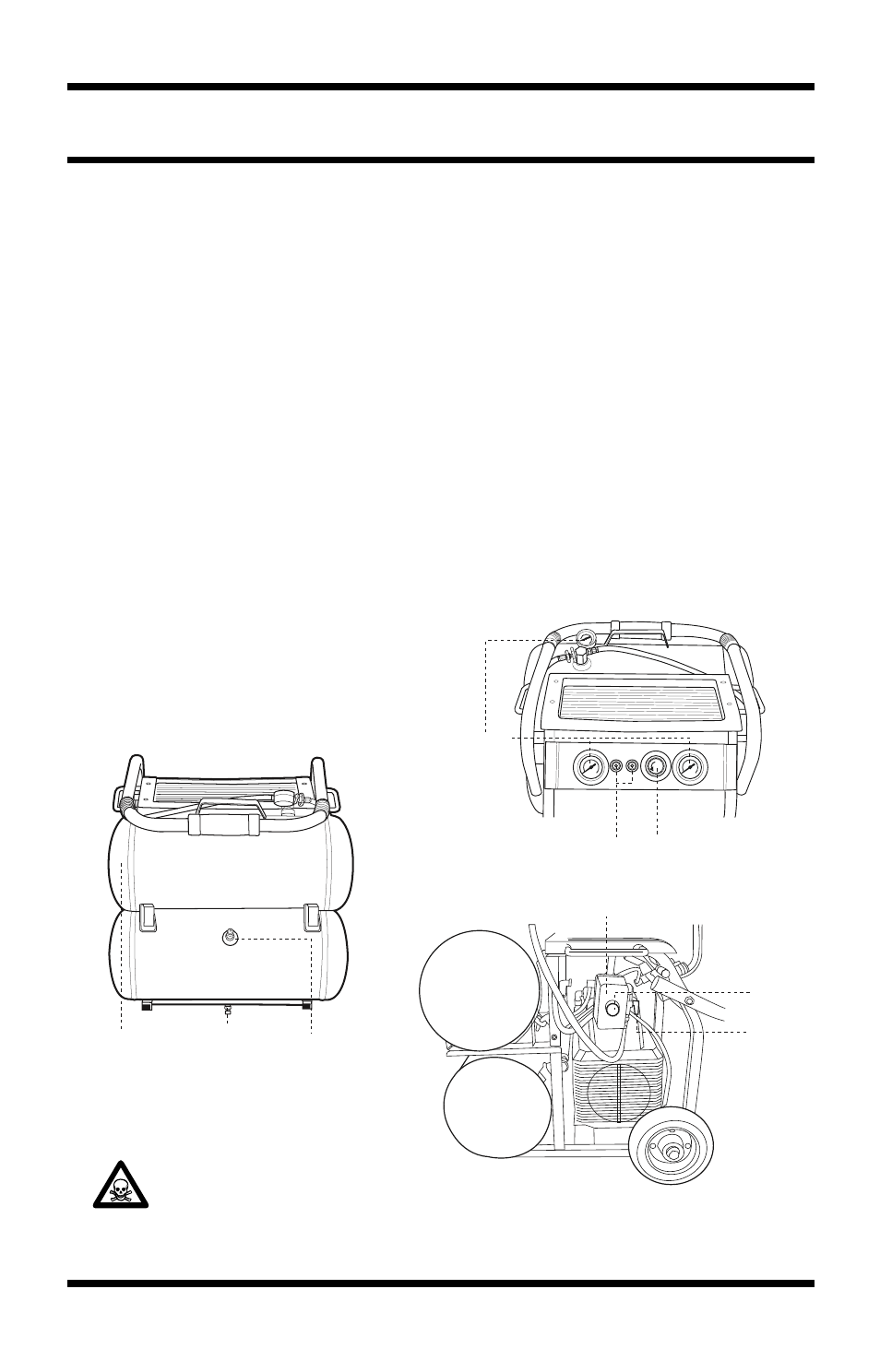

Air Pressure
Regulator Quick-Connect
Outlets
WARNING! Never exceed the maximum working pressure of the tool. Turn
the knob clockwise to increase pressure, and counterclockwise to decrease
pressure.
Air
Pressure
Gauges
Petcock
Pressure
Release
Valve
Detachable
Air Tank
ON/OFF
Button
Air Valve
Switch
Pressure Switch
