6. Remove the guard from body side. Drill the six holes out to 9/32”.
Note: A small pilot drill bit is recommended for accuracy.
7. Re-install the guard. Put Neoprene washers on three of the M6x25 stainless button head

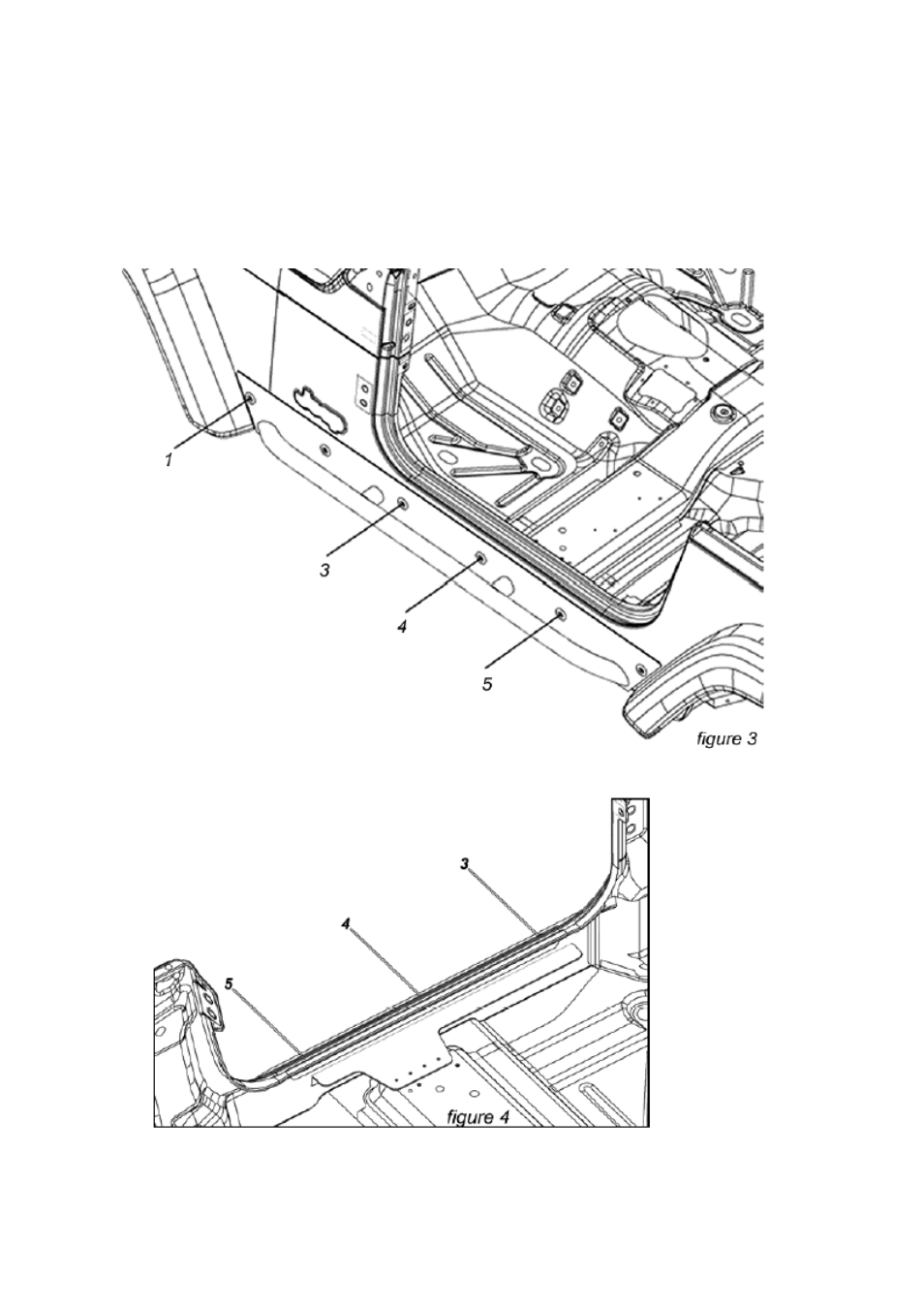

screws, potion them through holes #3, 4 & 5 (Fig. 3). Unsnap and pull carpet away, then
place the appropriate internal bracket (Fig. 4) and install three M6 flat washers, and the
three M6 Nyloc nuts. Tighten until the neoprene is compressed and the bolt is tight.
Note: It is best to tighten the nut, and hold with the hex head Allen wrench.
