ARB 4420110 - Manual (Page 3)

Last Rev Date: 05/05/2009 Page 3 of 3 Fitting instructions# 3783245
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

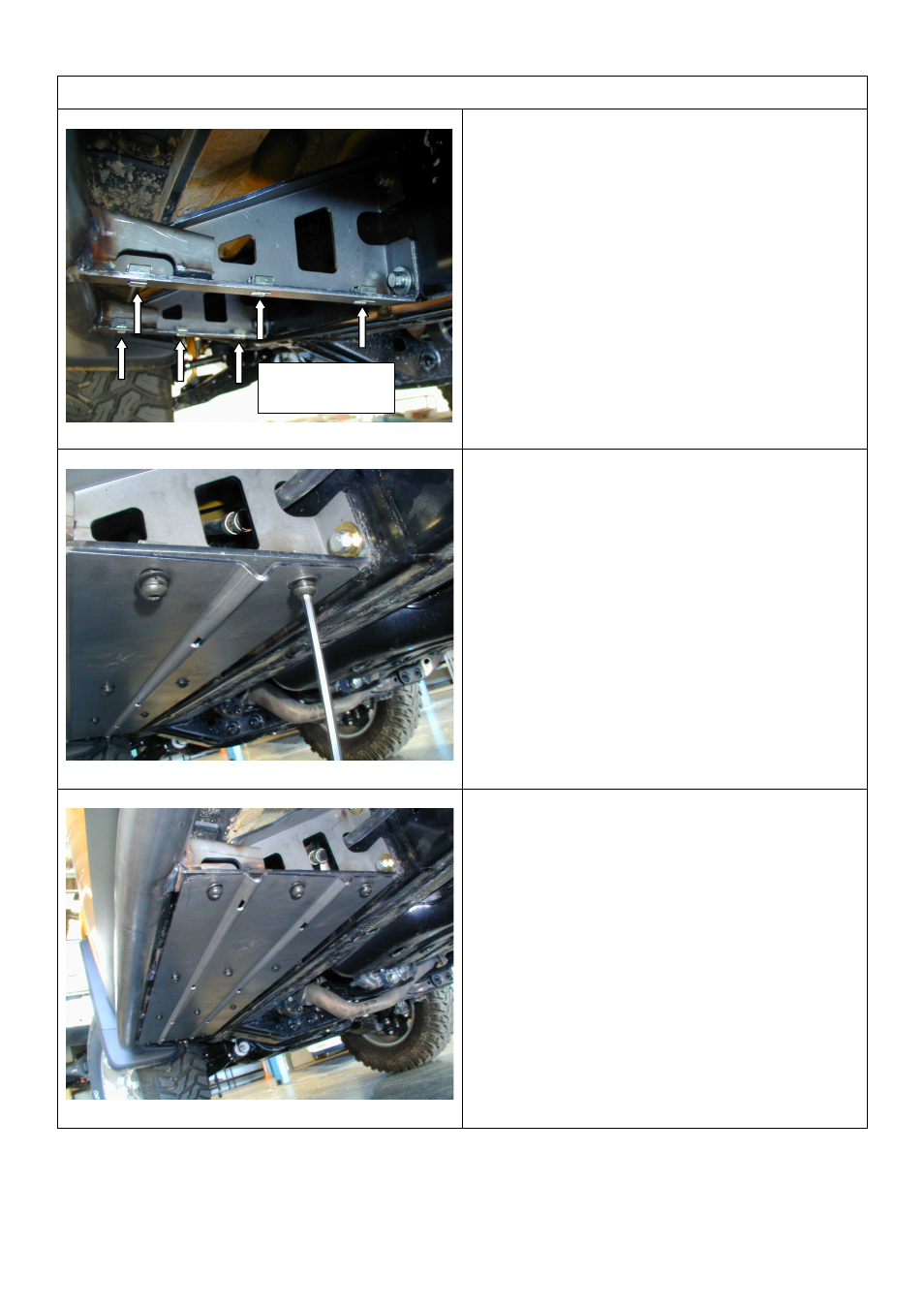

FITTING PROCEDURE
1. Fit the 24 cage nuts into the square
holes in the chassis brackets of the
rocker rails.
2. Fit the skid plates to the rocker rails
using the M8 x 20mm button head
socket screws, M8 flat black washers
and M8 black spring washers.
3. Repeat for the other side and tighten all
screws.
Fit 12 cage nuts
to each side.
