05/01/04 Page 9 of 9 3783077

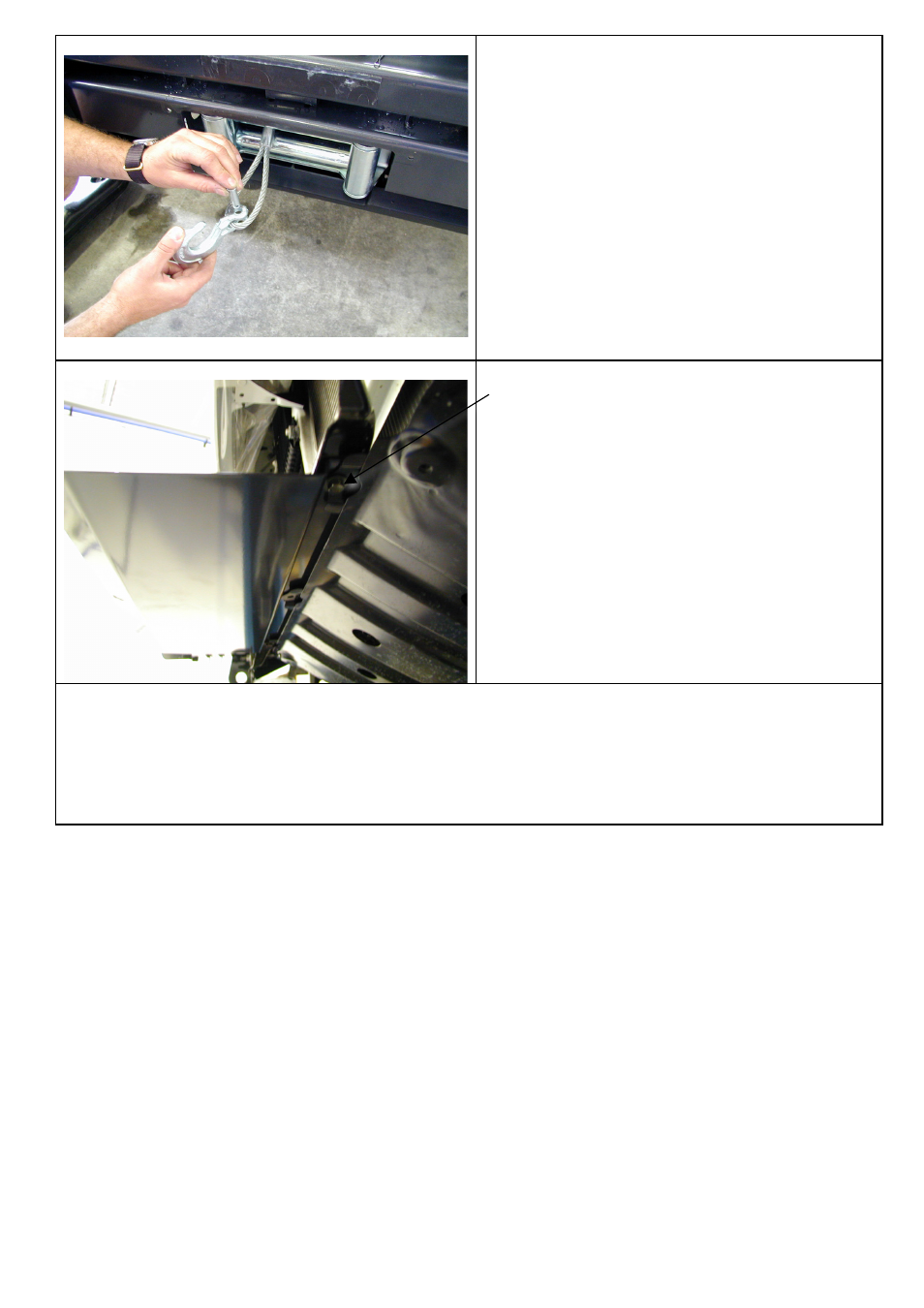

22. (If fitting with winch)
34. Feed the winch cable through the roller fair
lead. Mount the hook to the end of the cable.
23.
35. Undo the three front pan bolts and loosen the
two rear ones.
36. Position splash pan between the body and the
original pan and loosely fasten with original
bolts.
37. Connect splash pan to underside of bar using
the M8 x 16mm bolts and flange nuts.
38. Tighten all bolts
24. (If fitting with winch)
Connect the long winch + & - cables to the vehicle after the bar is installed.
Refer to the Warn winch manual for vehicle wiring instructions.
Ensure that these cables are installed well clear of sharp, hot or moving objects. Secure the winch
cables to the vehicle and winch bumper with the supplied cable ties.
