13/6/08 Page 6 of 11 3786950
IF NOT FITTING WINCH

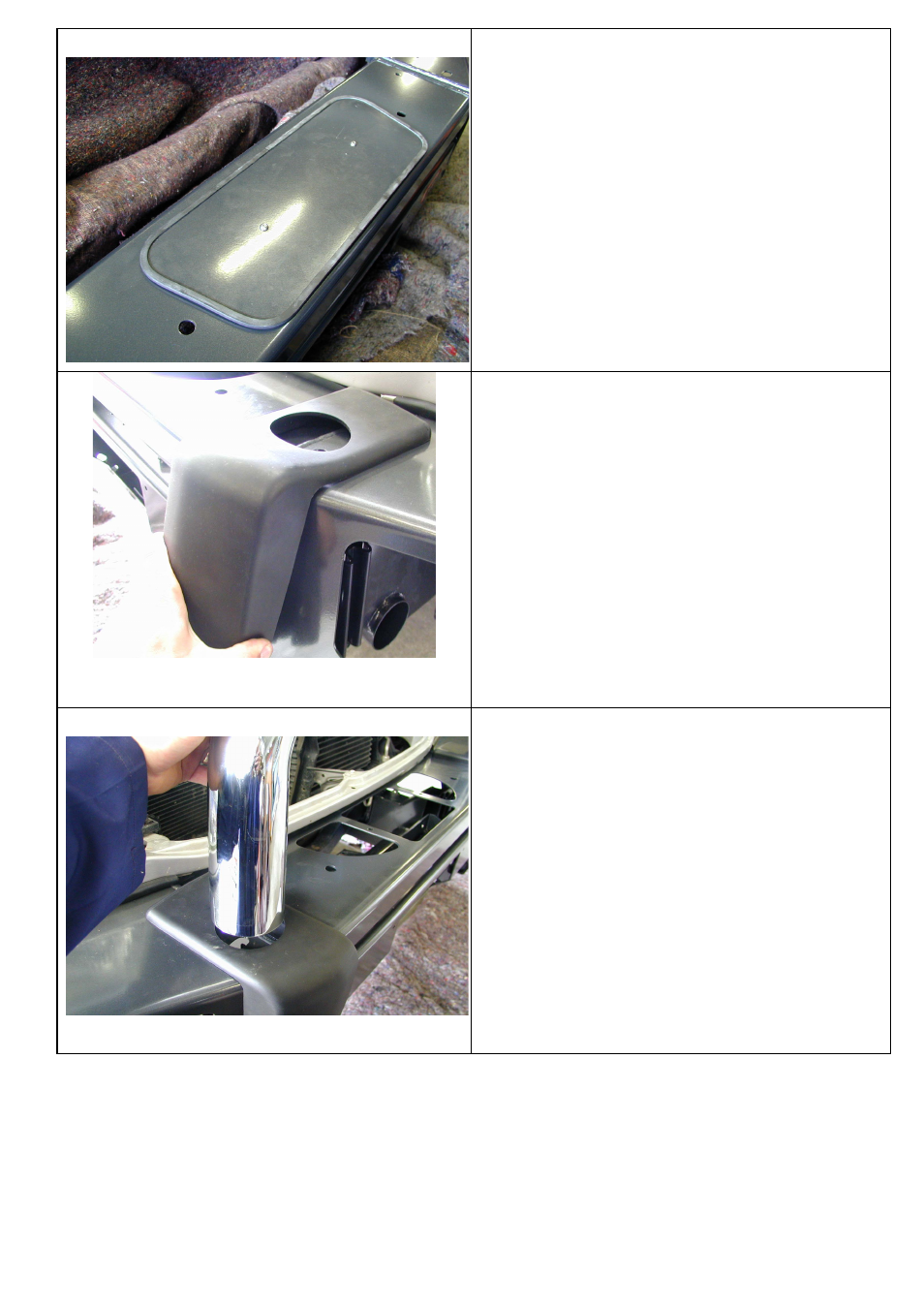

11. Wrap rubber extrusion around winch cover.
12. Place washers over the winch cover fixing
holes located on the top middle face of the
bar.
13. Place the winch cover on top of the bar inline
with the mount holes.
Bolt together using the M6 button head
stainless steel screws and M6 nuts.
14. Fit buffers to bar using 6mm hardware.
IMPORTANT
1. Sahara Bumper has no large top hole
2. If fitting Sahara Bumper go to step 16
15. Fit the top tube through the hole in the top of
the buffer and secure from underneath using
M12 x 40mm bolt, spring washer and flat
washer.
NOTE This step for Sahara Bar only
