FITTING THE BULL BAR TO THE VEHICLE
10. Remove the bumper from the vehicle.

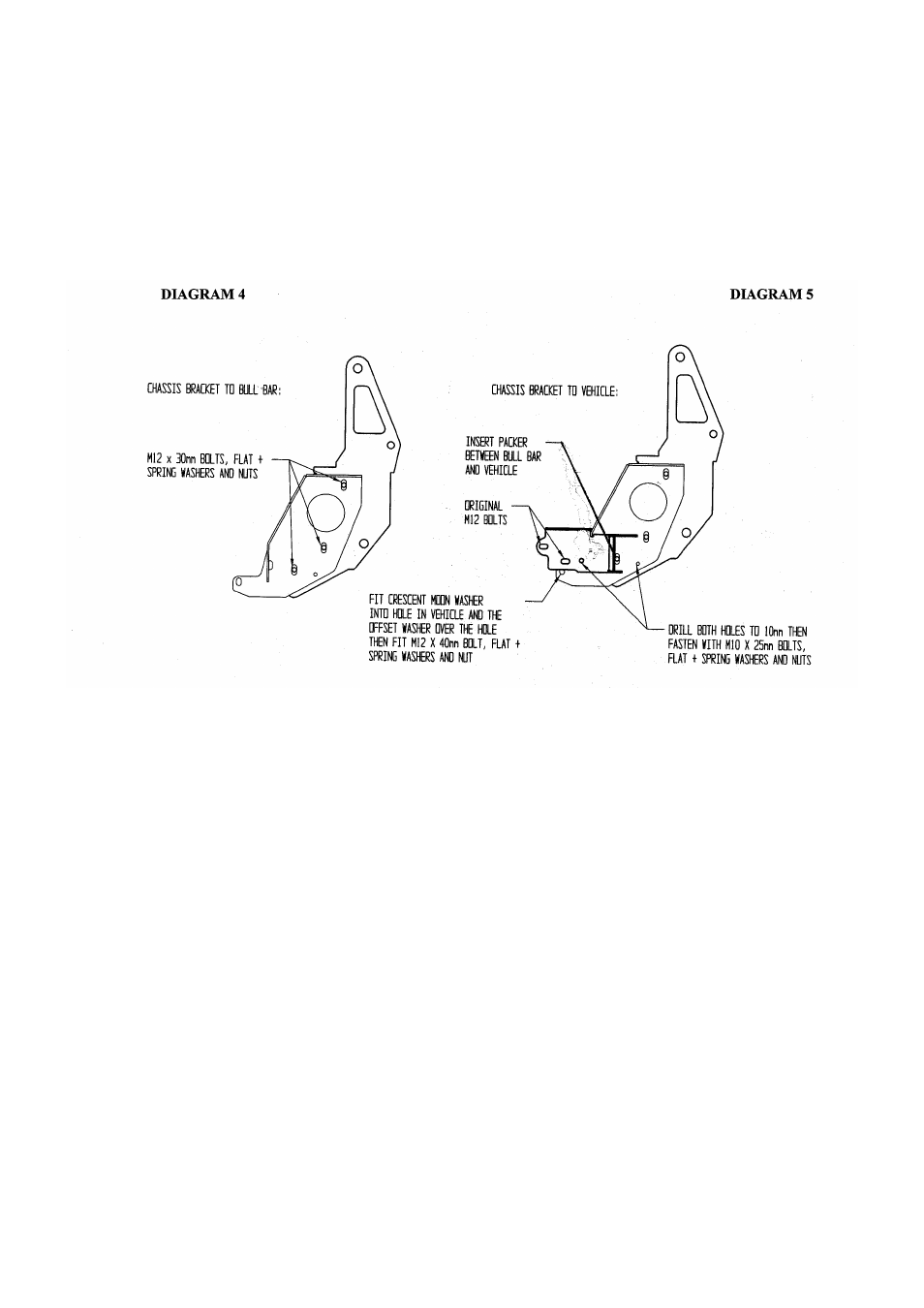

11. Fit the chassis brackets (Part No. 3751747 L&R) to both sides of the vehicle using two M10 x 25mm bolts and four M12 x
40mm bolts, crescent moon washers, offset washers, flat washers, spring washers and nuts. (Refer to diagram 4.) Fit two
6mm spacers between inside of chassis bracket and on outside of vehicle chassis rail and align with 12mm captive nut and
secure using 12mm hardware. Finger tighten only
12. Assemble the two buffers on to the bull bar using the four M8 flange nuts supplied.
13. Lift the bull bar between the chassis bracket and bolt up using the M12 x 30mm bolts, flat washers, spring
washers and nuts. Align the bar horizontally and vertically. Make sure there is a gap between 20 and 25mm
between the bull bar and the vehicle grill and guards.
14. When correctly aligned, tighten all the bolts firmly.
15. Drill and pin using the M10 x 25mm bolts, flat washers, spring washers and nuts. (Refer to diagram 5.)
16. Fit the number plate to the bull bar using the two M6 x 16mm bolts, flat washers and flange nuts.
17. Fit the indicators into the cut outs in the bull bar and connect the indicator looms to the existing indicator loom.
NOTE: Fitting the indicators will be accessed from underneath the bar. Test to ensure the indicators function
correctly.
