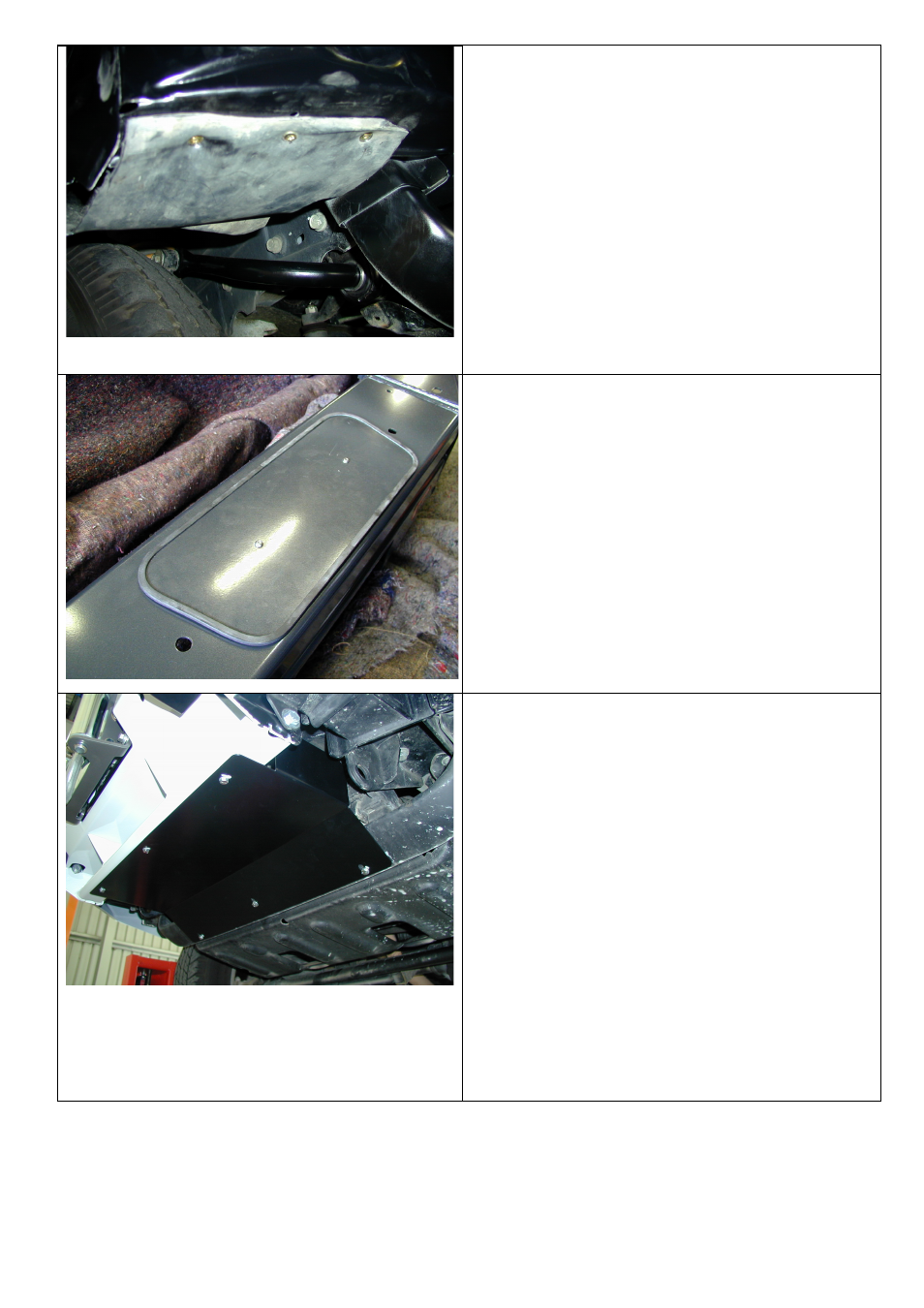

44. Notch out plastic inner guard panel level with
bottom of bar return, fold upward against bottom of
vehicle crossmember and secure using self tapping
screws.
45. If bar is to be a non winch bar, bolt cover panel to
bar using 6mm hardware.
46. The air deflector is mounted beneath the bull bar
using three of the existing bash plate bolts and three
M6 bolts and hardware supplied in kit.
