ASSEMBLY SEQUENCE FOR BULL BAR INSTALLATION.

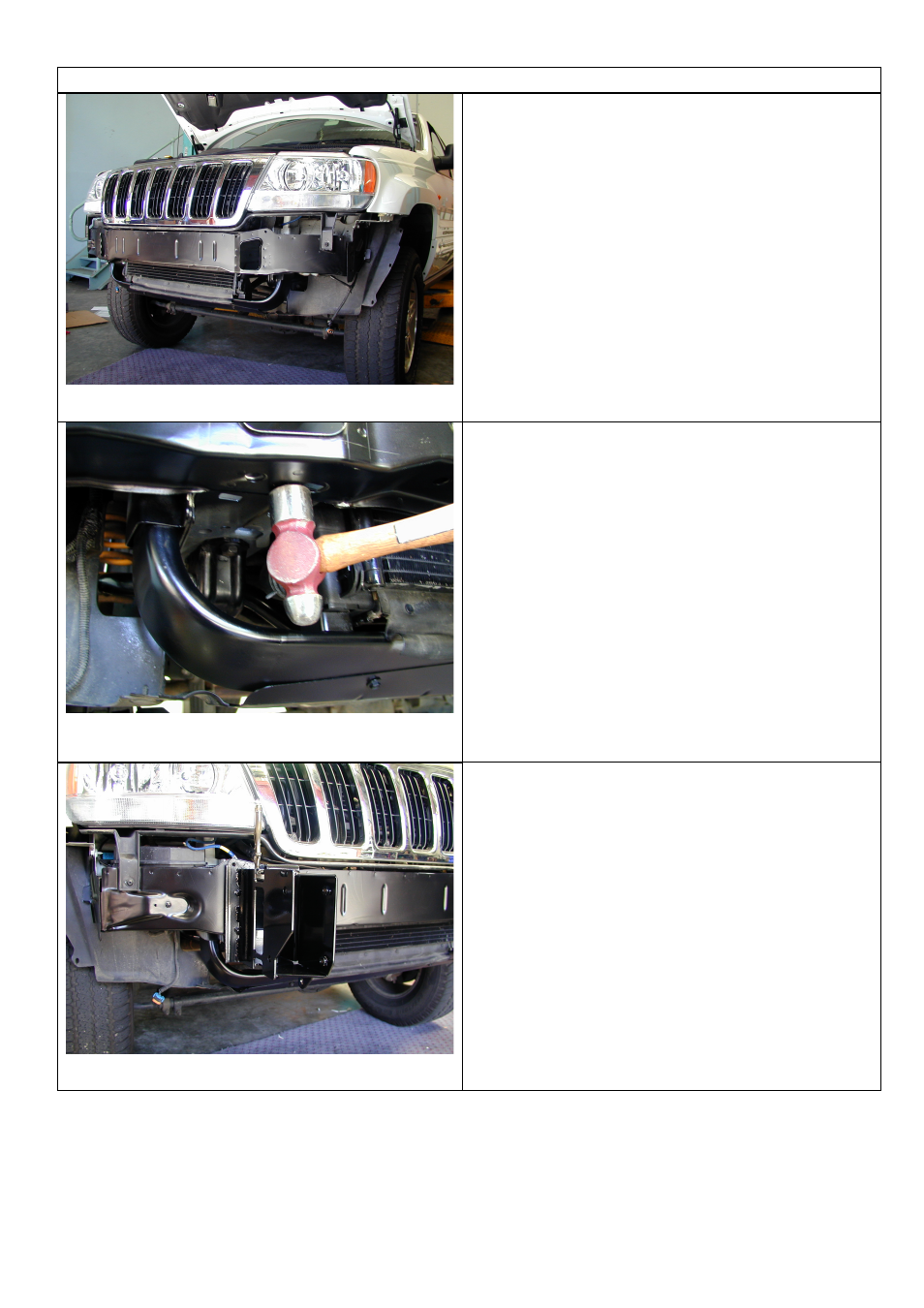

1. Remove bumper bar and tow bracket from the
vehicle.
2. Cherokee Grand Limited has grille and bumper as
one piece, where Laredo has a chrome grille and
separate bumper bar.
3. If your vehicle is the Limited, your choice is to
either, separate grille from bumper bar by cutting
with a keyhole saw, or purchasing a Laredo
grille, part no. 55155921AA.
4. Photos supplied for cutting grille apart (refer page
6).
5. Once front of vehicle is stripped, spray paint satin
black using a pressure pak can. This is done to
hide vehicle colour that shows when bar is fitted
to vehicle.
6. Using a hammer, flatten lip over under front
crossmember on both sides of vehicle so impact
absorbers can be mounted flush against chassis of
vehicle.
7. Remove three bolts securing air deflector and
place aside. Remove two forward most bolts
securing bash plate to body.
8. Position impact absorber over aperture of front
crossmember and temporarily clamp to vehicle
using vice grips.
