BAR FITTING
1. Remove original bumper and the two triangular shaped brackets
from the top of the chassis. Do not remove the original brackets
from the side of the chassis. If fitted, remove any tow hooks
.
2. Drill out the original bumper mount holes to ½” (8 holes)

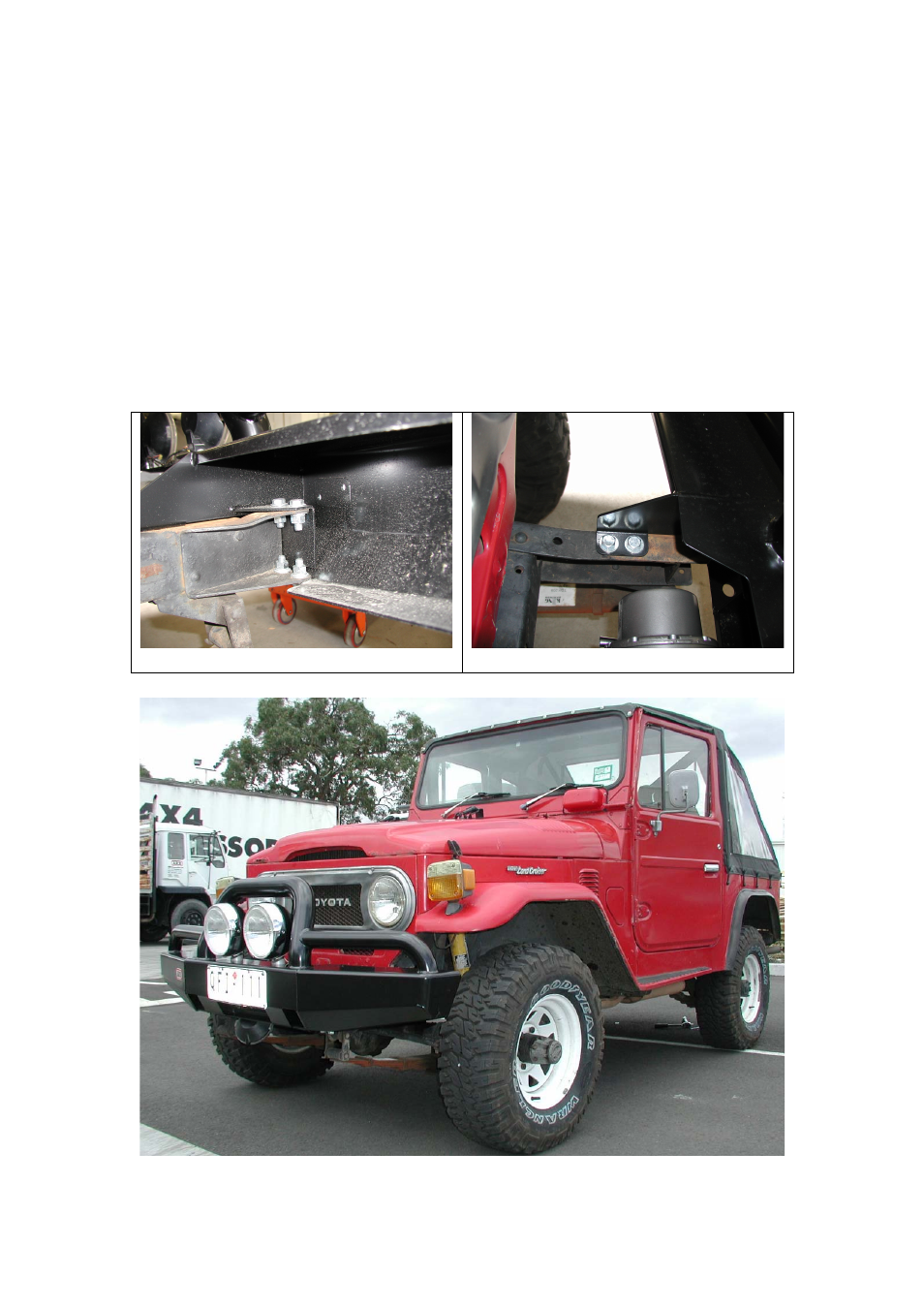

3. Lift bullbar into position and secure using 8 ½” bolts nuts and
washers for the chassis side brackets and 4 ½” bolts nuts and
washers on top of the chassis as shown below.
