WINCH FITTING
1. If fitting a winch, it is recommended to do so prior to fitting the
bull bar. However, winches can also be fitted with the bar on the
vehicle.

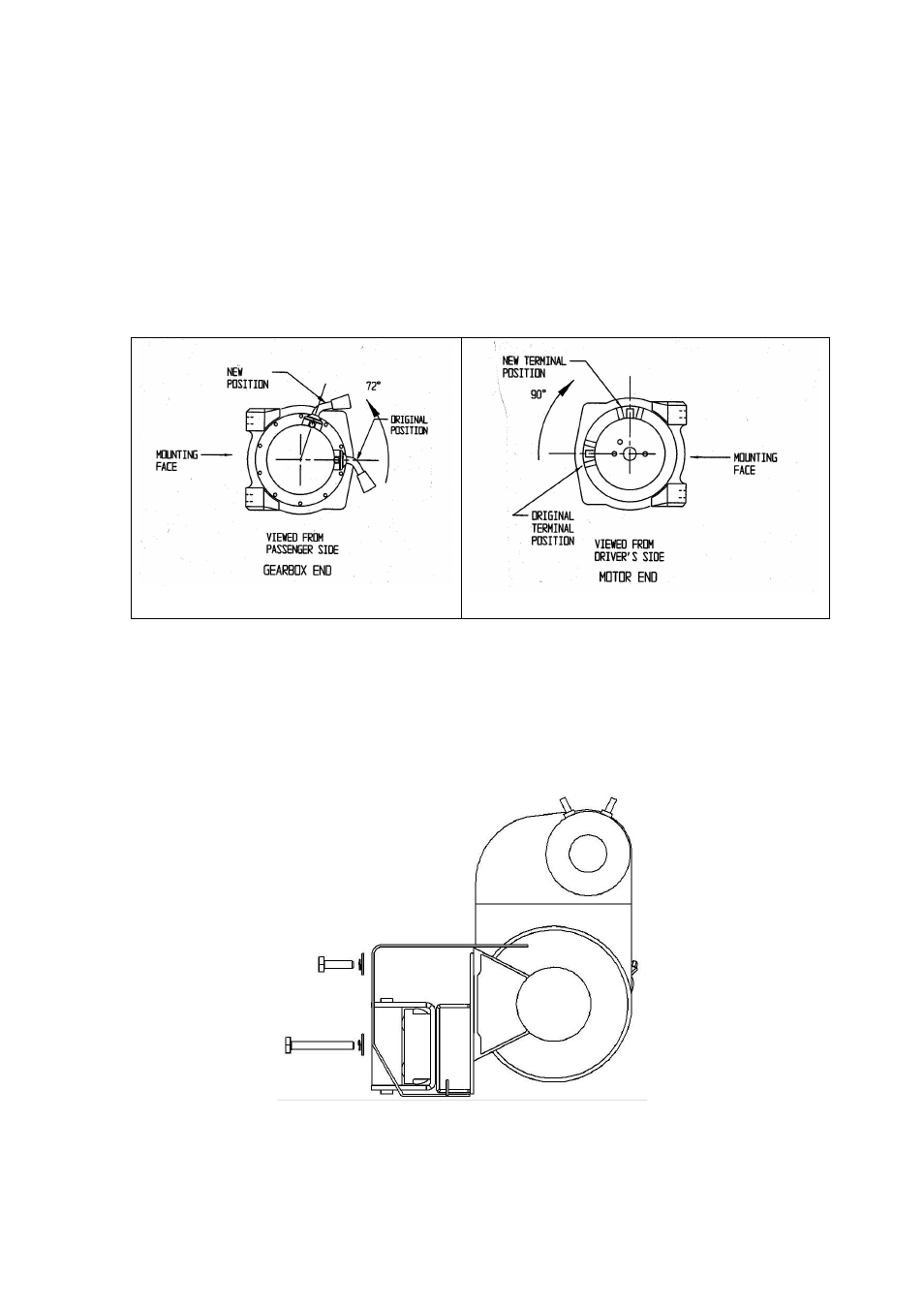

2. For 9000lb winches, it may be necessary to rotate the motor and/or
gearbox for easier access to terminals and the clutch handle.
3. Using the two upper mounting points only, secure the winch to the
bar with hardware supplied with the winch
4. Position the roller fairlead and secure the two lower mounts using
the longer 7/16 bolts and washers supplied in the kit. The vertical
rollers may need to be removed when fitting these lower bolts.
5. Wire up the winch as per winch manual.
