4 Installing the Air Locker
15
4.6
Drilling the Diff Housing for Seal Housing Tube
A hole must be drilled through a tab inside the diff housing to cable tie
the seal housing tube to for support.

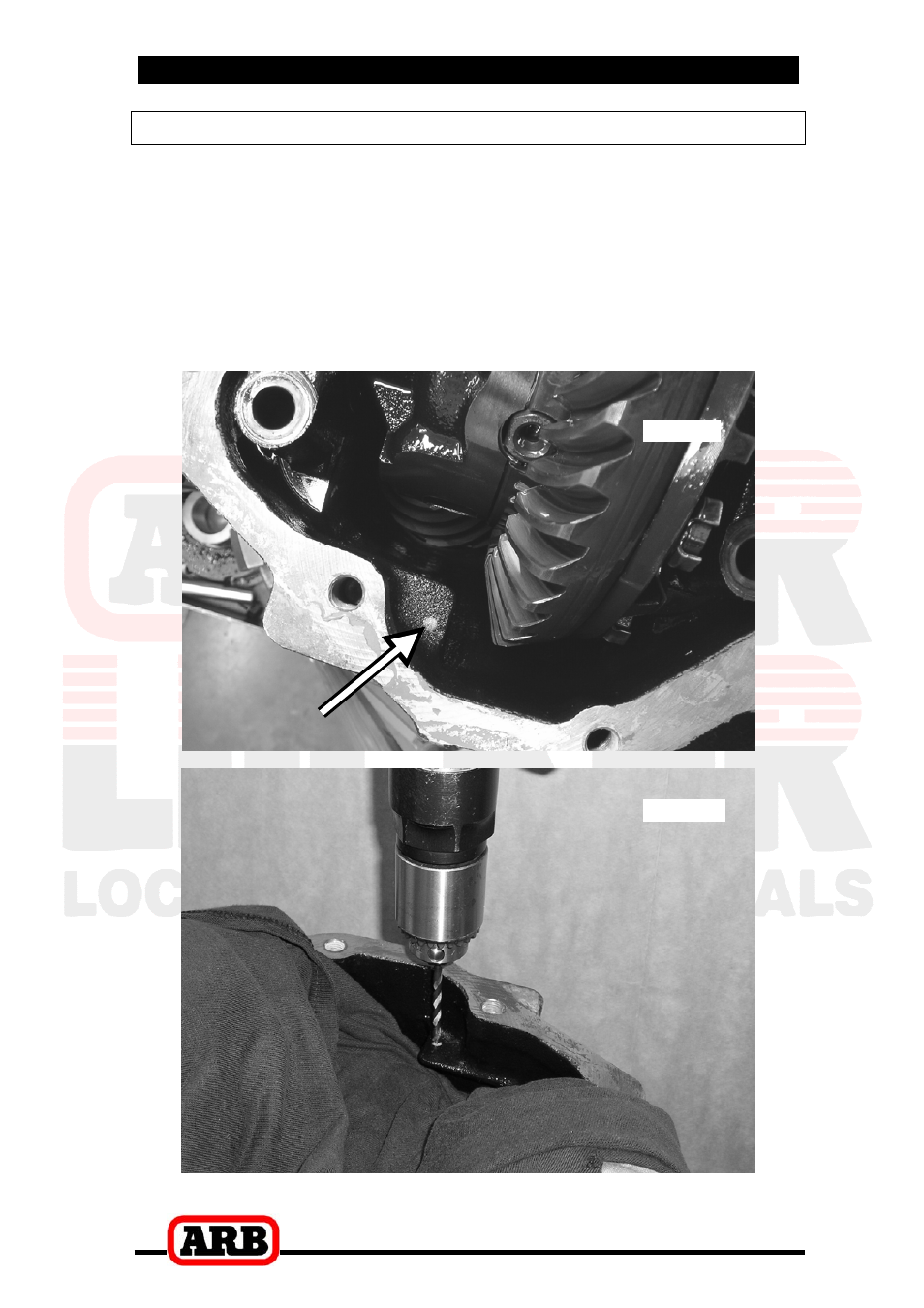

Mark a spot on the tab as shown in Figure 7.
Cover the drive pinion with rags to protect it from any metal filings
and drill a 5mm hole through the tab (Fig. 8.)
Debur the hole and remove the rags, ensuring not to get any metal
filings in the drive pinion.
Figure 7.
Figure 8.
