5 mounting & connecting the electrical system, Wiring the actuator system, Connection to an arb air compressor – ARB RD145 User Manual
Page 26
5 Mounting & Connecting the Electrical System
24
5.2
Wiring the Actuator System
5.2.1
Connection to an ARB Air Compressor

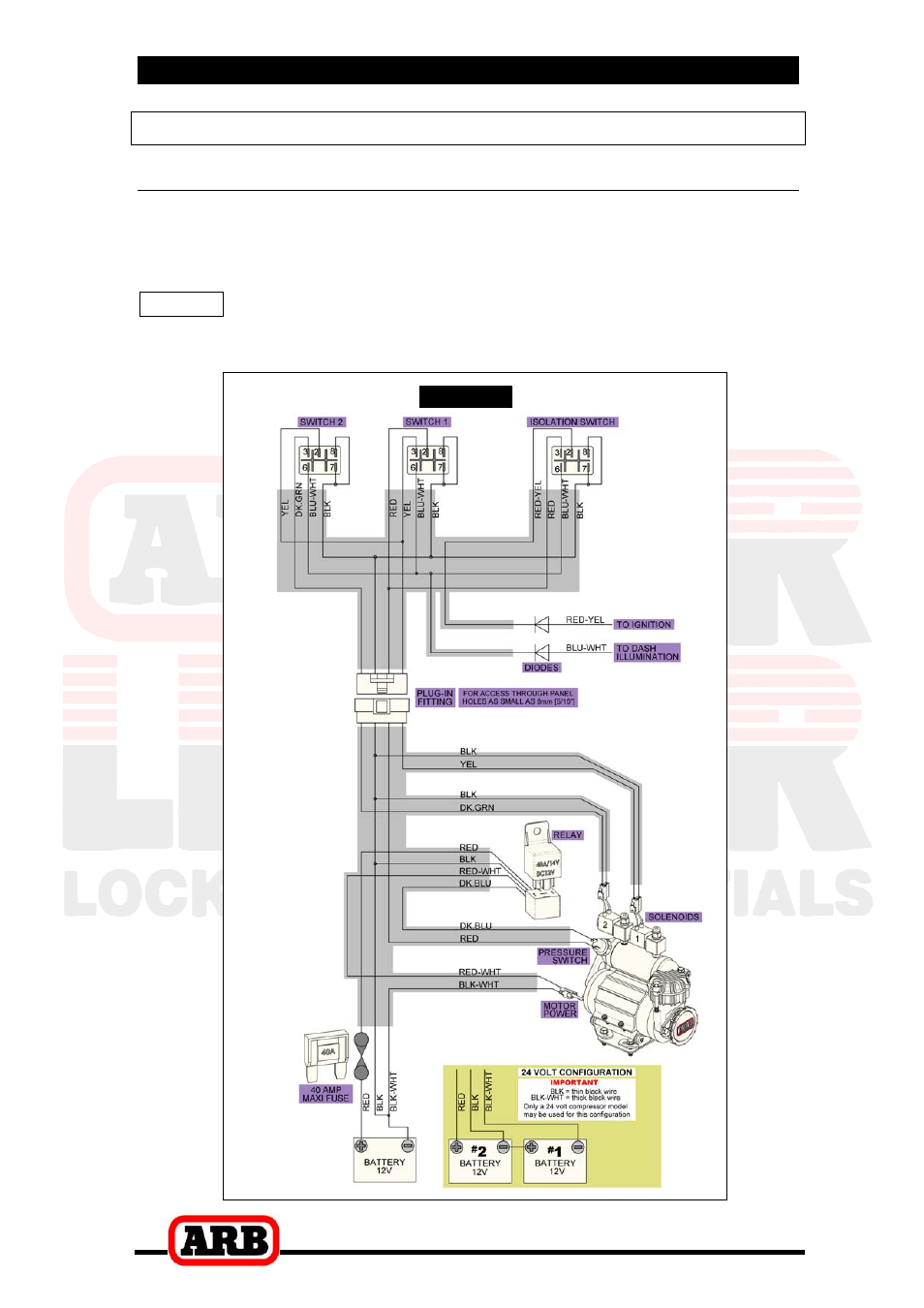

When wiring the Air Locker actuator switch(es) and solenoid(s) to an
ARB Air Compressor, all connections can easily be set up directly from
the supplied wiring loom. (Fig. 17.)
NOTE :
180409 model loom shown for reference only. Refer to
your ARB Air Compressor Installation Guide for
details on configuring your installation.
Figure 17.
