4 Installing the Air Locker

15

4.4

Assembling the Differential Carrier


c Relieve all tension on the housing spreader.

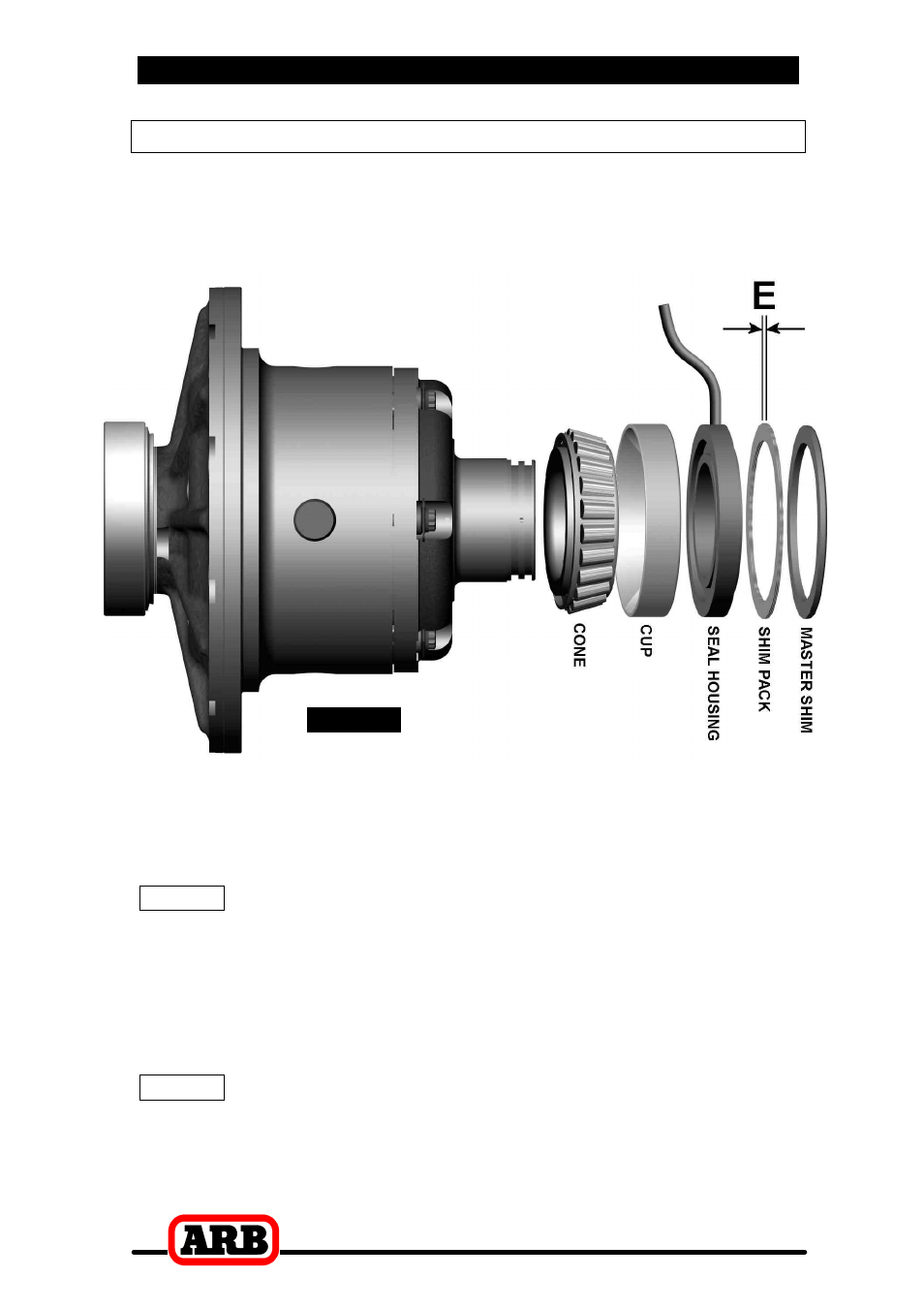

c Place the bearing cup over the bearing cone (Figure 8.).



















Figure 8.




c Slide the seal housing into place against the bearing cup (stepped

side out).

NOTE : The grooves in the bearing journal under the seal

housing, will house the O-rings in the final assembly
but they will not be installed now to avoid damage to
the O-rings.

c Install the supplied master shim onto the seal housing.

NOTE : The shim pack cannot be installed at this time as the

required thickness (shown as ‘E’ in Figure 8.) has yet
to be determined.
