5 Mounting & Connecting the Electrical System
39
5.2.2.2 Dual Air Locker System
c If two Air Lockers are to be installed in the system, ARB
recommends that the switches and solenoids be wired according to
figure 30. For safety reasons, this configuration allows SOLENOID
2 to be actuated only if SOLENOID 1 is already on.
c Attach the “REAR AIR LOCKER” switch cover to SWITCH 1, and
the “FRONT AIR LOCKER” switch cover to SWITCH 2.
NOTE : Refer to Figure 28. for the correct switch terminal
identification and switch orientation.
c Configure SOLENOID 1 as the air line leading to the rear axle Air
Locker, and SOLENOID 2 as the air line leading to the front axle Air
Locker.

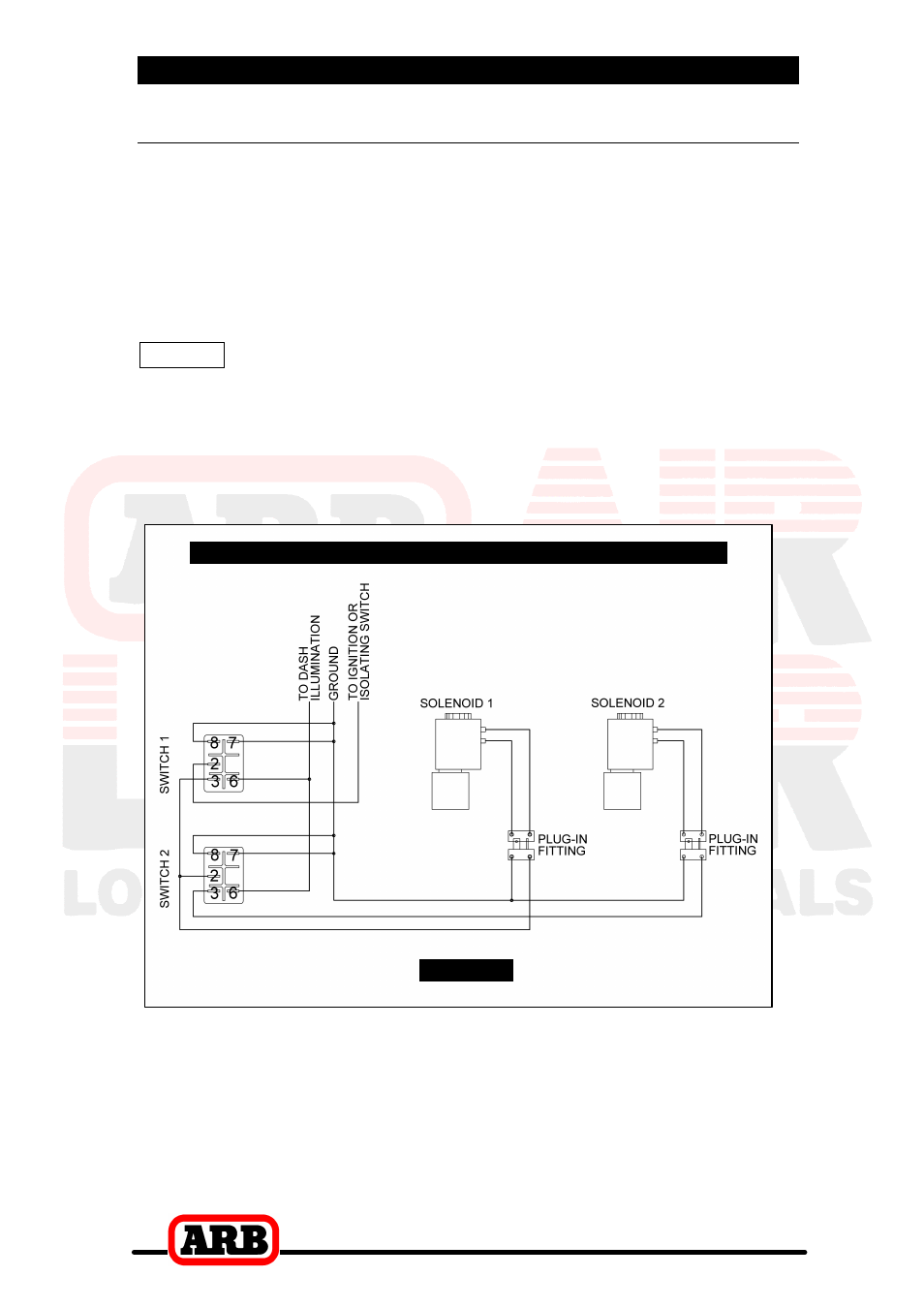

Figure 30.
DUAL Air Locker SYSTEM
