Gradall 524D LoPro - Manual (Page 151)

6
3
1
2
4
5
VIEW A-A
7
8
VIEW B-B
PARK BRAKE
9136-30
FORK
TILT DOWN
240
100
F
E
80
0
16
10
TEMP
FUEL OIL
VOLTS
- +
DRIVE 4X4
4X2 ALT
ON
OFF 0 0 0 0 0 0
QUARTZ
LK
OPTIONAL EQUIPMENT

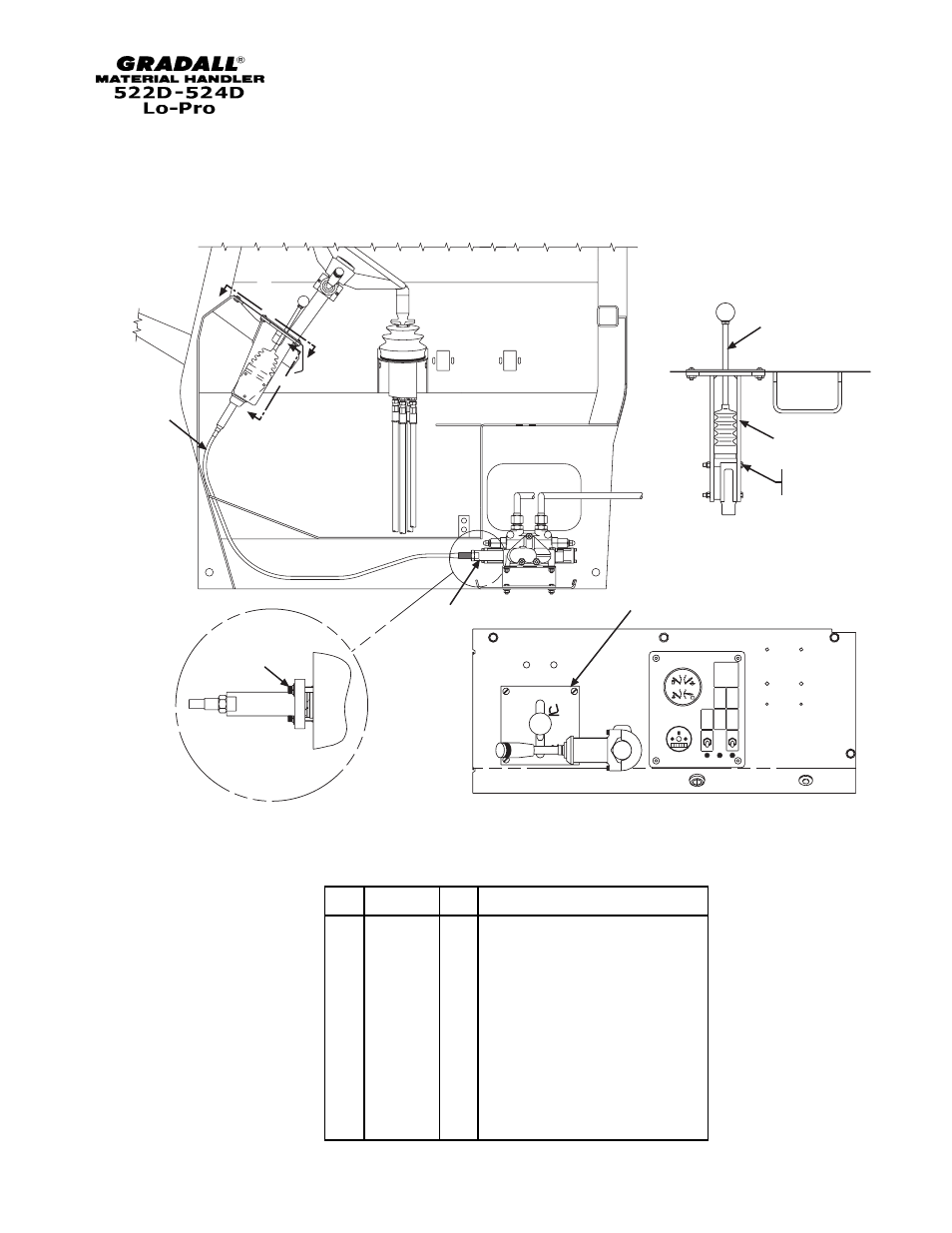

(9148-5012) L.H. Tilt Assembly
Starting Serial No. 0191001
Original Issue 6-01
Item Part No. Qty. Description Of Part
9148-5012 1 L.H. TILT ASSEMBLY, (includes all
items)
9134-5010 1 REMOTE VALVE CONTROL
ASSEMBLY, (includes items 1 thru 5)
1 9130-3019 1 REMOTE VALVE CONTROL
2 9136-6007 1 LEVER BRACKET
3 9136-3043 1 CONTROL CABLE
4 8820-1012 3 HEX HD CAPSCREW, 1/4-20X2-3/4,
GR5
5 8852-1304 3 HEX LOCKNUT, 1/4-20
6 9112-3062 1 CABLE ADAPTER BONNET
7 8821-1044 2 SOCKET HD CAPSCREW,
1/4-20X1-1/2, GR8
8 9136-3040 1 TILT GUIDE PLATE
13-16
A
A
B
B
