BEA Sliding Door Lock With Wizards - Manual (Page 6)

DWG NO SIZE
SHEET SCALE
CAGE CODE
A
PH: (412) 249-4100 FAX: (412) 249-4101
B.E.A., Inc.
100 Enterprise Drive, Pittsburgh, PA 15275
DATE:
NONE 1 OF 1
FILE OF: DRAWN BY:
JED
REV
01 ENG'G
02 JAN 04
24 VAC
TRANSFORMER
WHITE BLACK RED
BLUE
RED
BLACK
115 VAC
Com-
WHITE
GREEN
Safety
Com
WIZARD
PRESENCE
INTERFACE
BLUE
DOOR CONTROL
GREEN BROWN BLUE
BROWN
WIZARD INTERIOR
WIZARD EXTERIOR
BLACK
RED
BROWN
WHITE GREEN
Activation
80.0006
We open up New Horizons

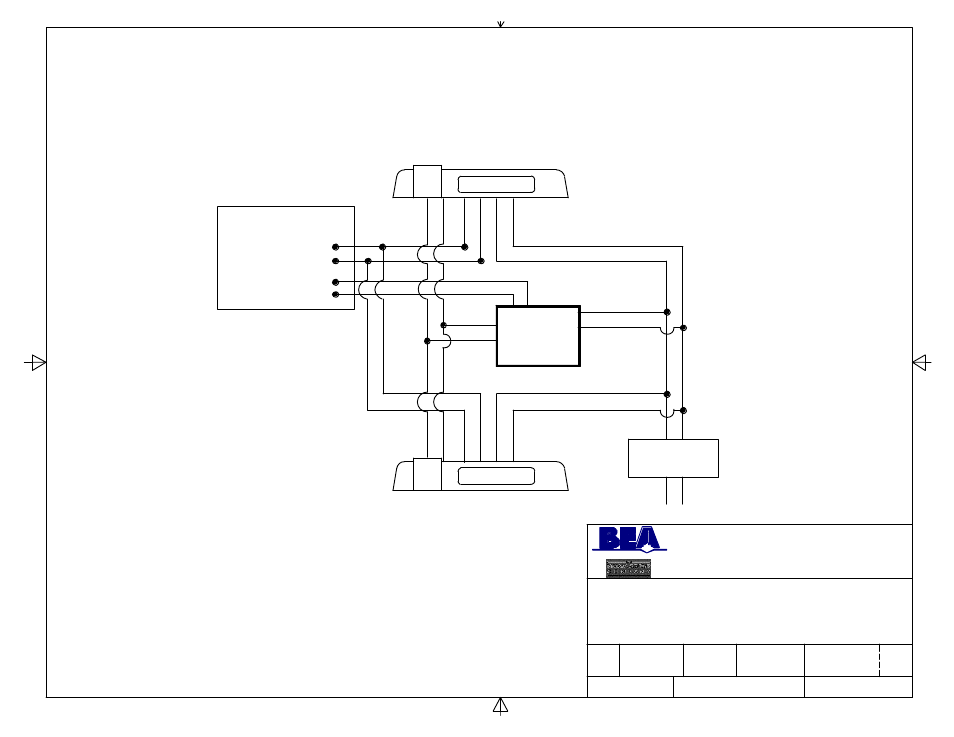

TITLE: WIZARD SYSTEM WITH
INTERFACE FOR ANALOG DOOR CONTROLS
MOTION & PRESENCE SEPERATED
MOTION AND PRESENCE SEPARATED
