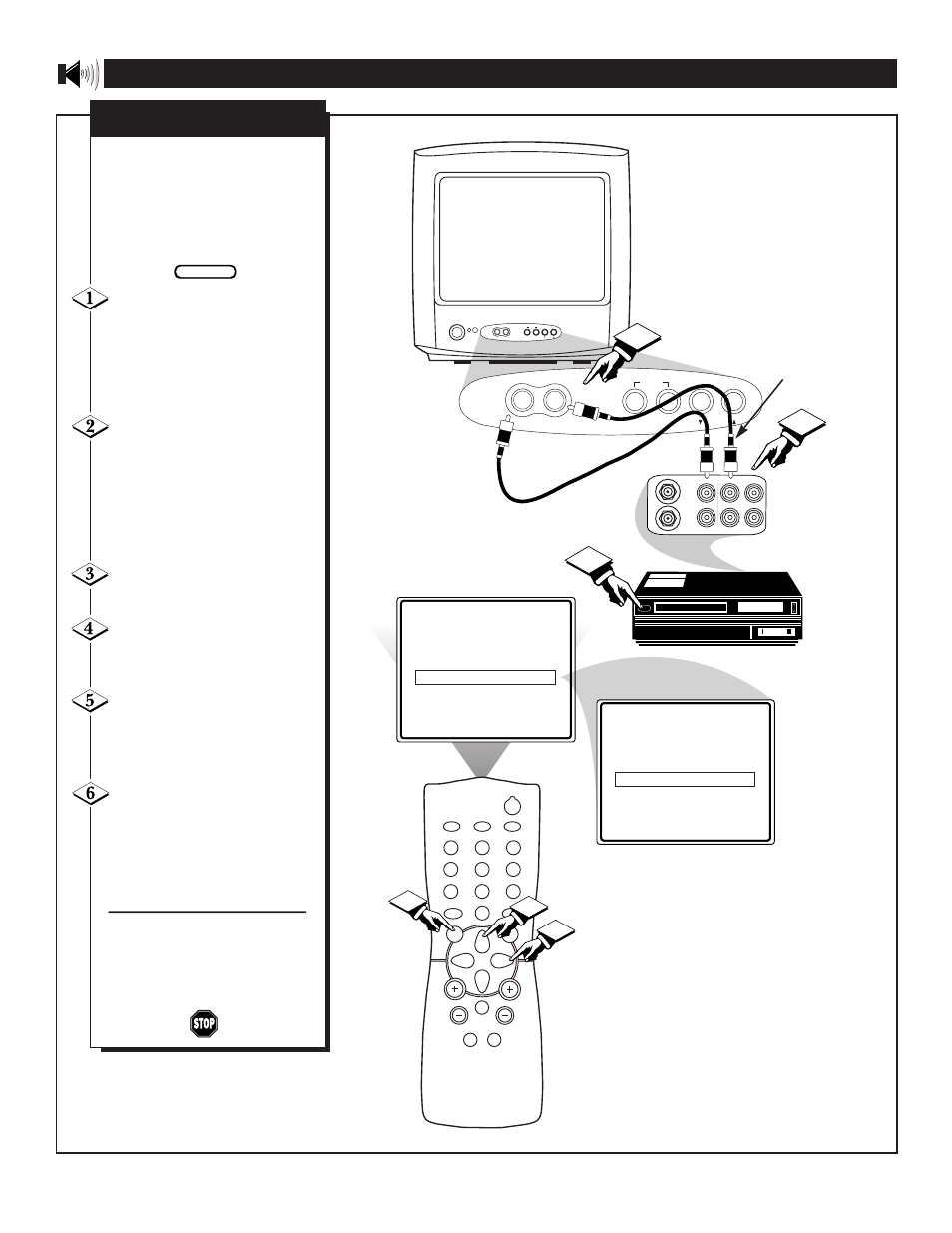

The TV’s Front Audio/Video Input
jacks are for direct picture and
sound connections between the
TV and a VCR , Camera (or simi-
lar device) that has Audio/Video
Output jacks.
Connect the VIDEO (yellow)
CABLE to the VIDEO IN jack
on the front of the TV. Then con-
nect the AUDIO (white) CABLE
to the AUDIO IN jack on the
front of the TV.
Connect the VIDEO (yellow)
CABLE to the VIDEO OUT jack
on the back of the accessory
device. Then connect the AUDIO
(white) CABLE to the AUDIO
(white) OUT jack on the rear of
the accessory device.
Turn the accessory device
and the TV ON.
Press the MENU button on
the remote to display the
onscreen menu.
Press the CURSOR UP ▲ or
CURSOR DOWN ▼ buttons
until the word INPUT is high-
lighted.
Press the CURSOR RIGHT
ᮣ or CURSOR LEFT ᮤ button
to display the picture/sound menu
(ANTENNA, EXT 1). Use the
CURSOR UP ▲ or DOWN ▼
buttons to select.
Now your ready to place a prere-
corded video tape in the VCR and
press the PLAY
ᮣ button or view a
recording from your Video Camera.
AUDIO IN
(WHITE)
VCR OR ACESSORY
(EQUIPPED WITH
VIDEO AND AUDIO
OUTPUT JACKS)
VIDEO IN
(YELLOW)
H
OW TO
U
SE THE
I
NPUT
C
ONTROL
(F
RONT
A/V I
NPUTS
)
