Connecting the Acoustimass ® module to the Lifestyle ® media center
Note: To extend the length of the cables, use the supplied 50-foot extension cable (shown in
the dotted line above). This cable connects between the 30-foot audio input cable and the 3-
foot FIX adapter cable.

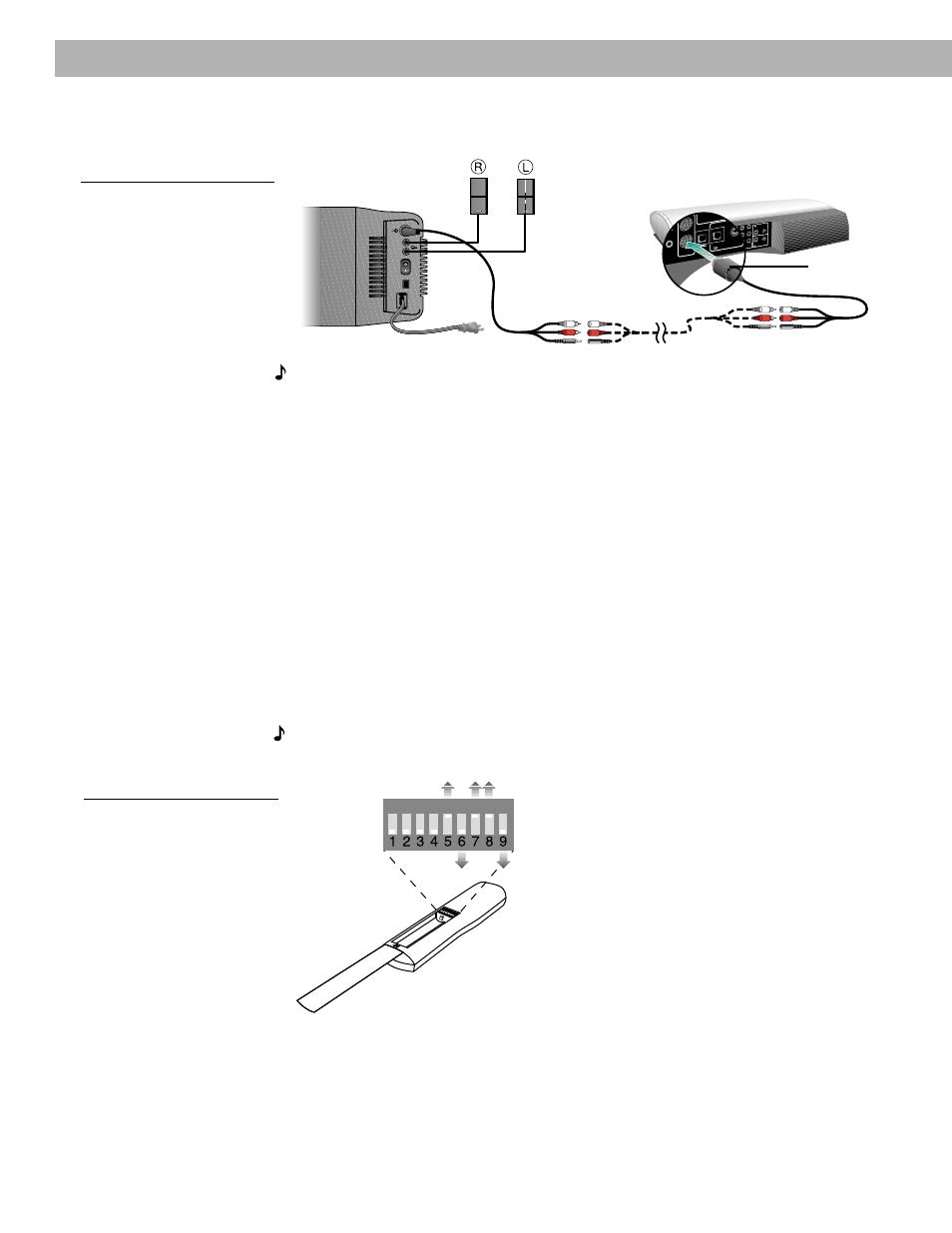

To connect the Acoustimass 5 or 20 powered speakers to your system (Figure 13), follow
these steps:
1. Using the supplied 30-foot audio input cable, insert the DIN connector into the
Acoustimass module, and the RCA plugs into the supplied 3-foot adapter cable labeled
FIX on the single-connector end.
2. Attach the end of the 3-foot FIX adapter cable to the ZONE 2 output jack on the rear of the
Lifestyle ® media center.
Setting up the remote control
You need to set up a second remote control to operate the ZONE 2 output.
1. Remove the remote control battery cover and locate the miniature switches (Figure 14).
2. Make sure that the house code settings (switches 1, 2, 3, and 4) match those on your first
remote.
3. Make sure switches 5, 7, and 8 are up, and 6 and 9 are down.
Note: Refer to your Lifestyle ® system owner’s guide for more information on operating your
system in more than one room.
Figure 13
Connecting the speakers to
your Lifestyle
® media center
OFF POWER ON
RIGHT OUTPUTS TO CUBE SPEAKERS LEFT
AUDIO
INPUT
OPTIC AL OPTIC AL
DIGITA L
R
L L L L L
R R R R
DIGITA L DIGITA L DIGITA L DIGITA L
INPUT OUTP UT AUDIO OUTP UTS AUDIO INPUT S
ANTEN NA
SPEAK ER ZONE S 2
1
VIDEO INPUT S
POWE R
TV SENSO R
IR EMITT ER
SERIA L DATA
FM AM
RECO RD TAPE AUX VCR TV
COMP OSITE S-V IDEO
VIDEO OUTP UTS COMP OSITE S-V IDEO
75
33V DC 1.1A
OPTIC AL
OPTIC AL
DIGITA L
R R
INPUT OUTP UT
AUDIO OUTP UTS
ANTEN NA
SPEAK ER
ZONE S
2
1
R
R
L
FM AM 75
FIX
ON
Figure 14
Setting up a Zone 2 remote
control
Setting Up
