8
December 20, 2001
AM262838_00_V.pdf
Which Lifestyle
®
system center do you own?
Identifying multi-room interface systems

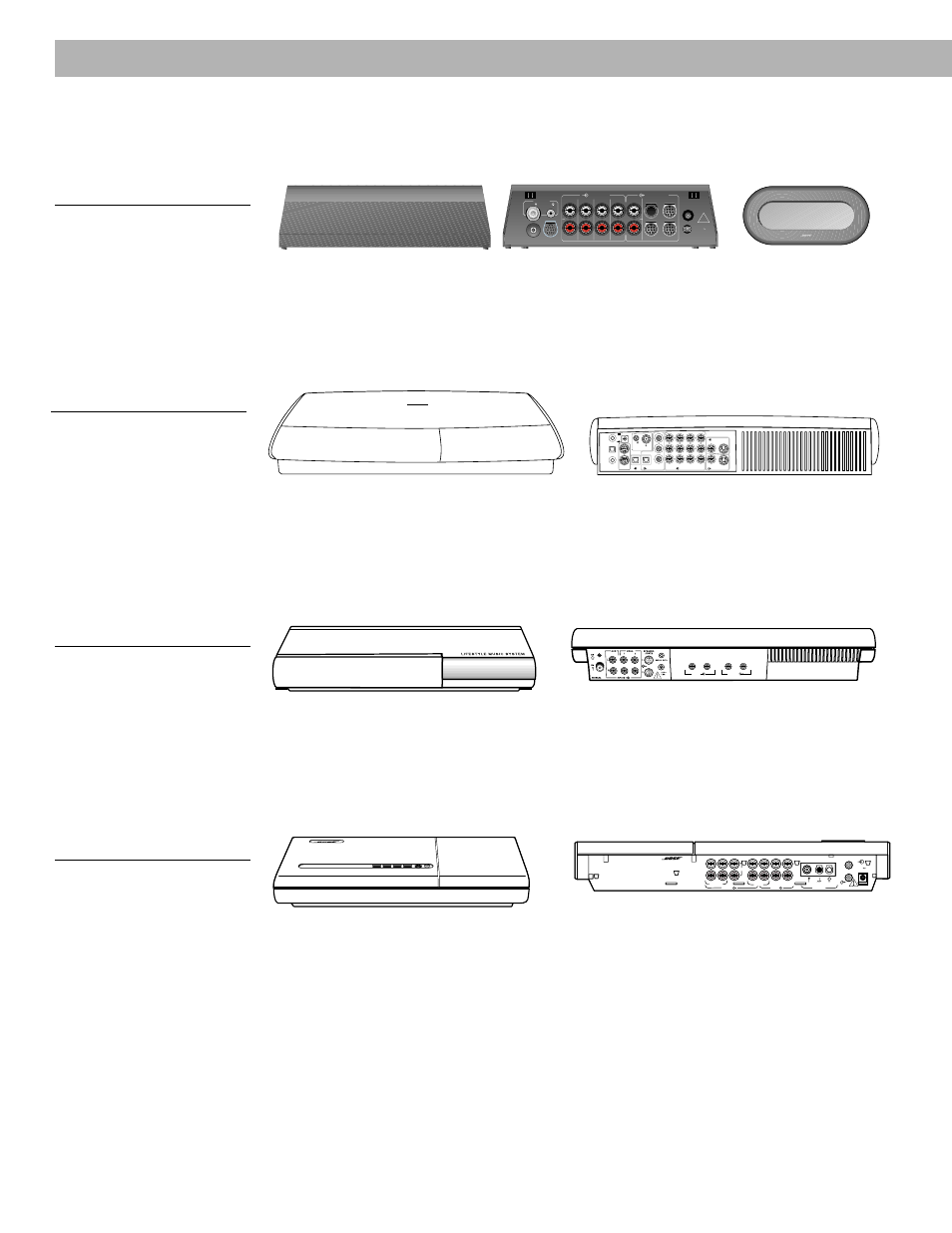

Figure 7
Front and rear of the multi-room
interface and Personal
®
music
center
The multi-room interface allows you to connect up to four rooms or listening areas with
additional speakers. These systems are operated using a Personal music center. To connect
additional speakers to a multi-room interface, see “Connecting the Acoustimass
®
module to multi-room interface systems” on page 9.
Identifying systems with the Lifestyle
®
media center
OPTICAL
OPTICAL
DIGITAL
R
L
L
L
L
L
R
R
R
R
DIGITAL
DIGITAL
DIGITAL
DIGITAL
INPUT
OUTPUT
AUDIO OUTPUTS
AUDIO INPUTS
ANTENNA
SPEAKER
ZONES
2
1
VIDEO INPUTS
POWER
TV
SENSOR
IR
EMITTER
SERIAL
DATA
FM
AM
RECORD
TAPE
AUX
VCR
TV
COMPOSITE S-VIDEO
VIDEO OUTPUTS
COMPOSITE S-VIDEO
75
Ω
33V
DC
1.1A
The Lifestyle
®
media center includes a single-disc DVD/CD player and two mini-DIN speaker
output jacks labeled ZONE 1 and ZONE 2 on the rear panel. To connect additional speak-
ers to a Lifestyle
®
media center, see “Connecting the Acoustimass module to the
Lifestyle
®
media center” on page 12.
Identifying systems with the Model 20 music center
Figure 9
Front and rear of the Model 20
music center
The Model 20 music center includes a six-disc CD player and two mini-DIN speaker output
jacks, labeled ZONE 1 and ZONE 2, on the rear panel. To connect additional speakers to a
Model 20 music center, see “Connecting the Acoustimass module to the Model 20
music center” on page 14.
Identifying systems with the Model 5 music center
Figure 10
Front and rear of the Model 5
music center
The Lifestyle
®
5 music center includes a single-disc CD player and three RCA pairs of speaker
output jacks, labeled A, B, and FIXED, on the rear panel. To connect additional speakers to
a Model 5 music center, see “Connecting the Acoustimass module to the Model 5
music center” on page 15.
!
L
R
A
B
SPEAKERS
OUTPUT
TAPE
REC
PLAY
FIXED
INPUT
L
R
AUX
VIDEO
SOUND
ANTENNA
1
2
SYSTEM
CONTROL
SEE INSTRUCTION MANUAL
POWER
12VAC IN
1.0A
AM LOOP
FM 75
Ω
LIFESTYLE® MODEL 5 MUSIC CENTER
BOSE CORPORATION, FRAMINGHAM, MA 01701-9168 MADE IN U.S.A
COVERED BY U.S. PATENT D339,606
MANUFACTURED:
®
®
L
R
TAPE IN
L
R
TAPE OUT
ANTENNA
FM
AM
LOCATE
MUSIC
CENTER
BOSE CD
AUX
VIDEO 1
VIDEO 2
TAPE IN
OUT
L
L
L
L
L
R
R
R
R
R
RECORD
ROOM A
(PRIMARY)
ROOM B
ROOM D
ROOM C
POWER
SERIAL
DATA
!
SEE USER’S
GUIDE
12V AC
1.6A
AUDIO INPUT
AUDIO OUTPUT
Setting Up
!
Figure 8
Front and rear of the Lifestyle
®
media center
