7
75 ⍀
75 ⍀
OR
OUT TO TV IN FROM ANT.
1
2

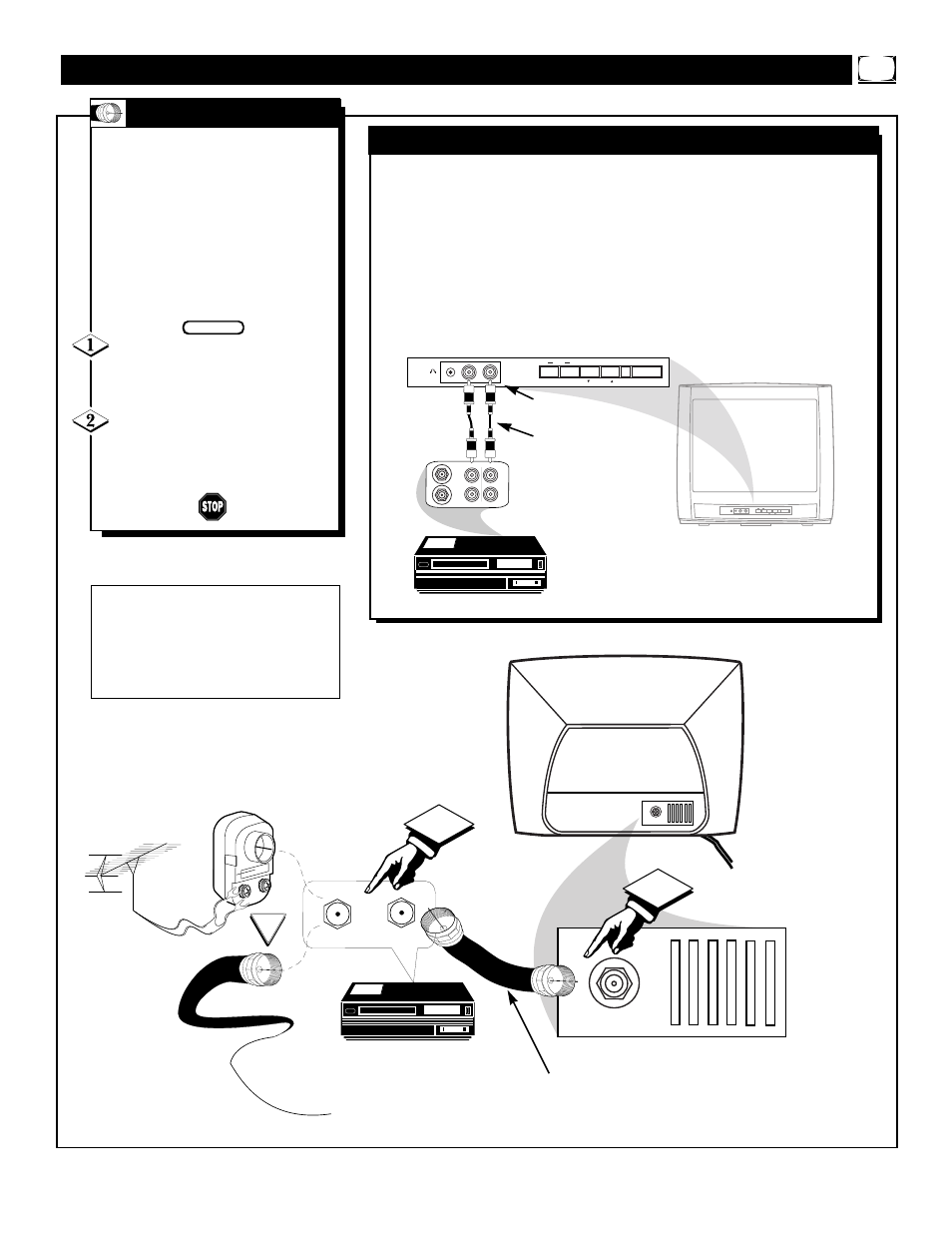

T he basic Antenna, or Cable
TV, to VCR to TV connection
is shown below. For more infor-
mation on other hookups (possi-
ble when Cable
Converter/Descrambler boxes are
included) refer to your accessory
Device and Cable Converter
Owner's Manual for details.
Connect your Antenna or Cable
TV signal to the IN FROM
ANT(enna) plug on the Accessory.
Connect the OUT TO TV plug
on the VCR to the 75
Ω
plug on the
TV (connecting cable supplied with
the Accessory Device.)
B
ASIC
TV
TO
VCR (& F
RONT
A/V I
NPUT
) C
ONNECTIONS
BEGIN
TV
TO
VCR
Round Cable
75
Ω
Supplied with VCR
Outdoor
VHF/UHF
Antenna
300 to 75
Ω
Ohm Adapter
Cable TV signal
Back of TV
ANTENNA OUT
ANTENNA IN
VIDEO AUDIO
IN IN
OUT OUT
– VOLUME +
MENU
AUDIO
VIDEO
– – VOLUME + VOLUME +
MENU MENU
AUDIO AUDIO VIDEO VIDEO
CHANNEL
CHANNEL CHANNEL
POWER
POWER POWER
This television is equipped with Mono Audio and Video input jacks
located in the front of the TV’s cabinet just left of the Channel and
Volume buttons. These inputs can be used to view the video from a
Camcorder, VCR, or other accessory device. When an accessory device
is plugged into these inputs, use the remote to tune one channel below
the lowest available channel in your TV’s memory. This channel is
labeled as AV. When tuned to the AV channel, the signal coming through
the front Audio/Video Inputs can be seen and heard.
F
RONT
A
UDIO
/V
IDEO
I
NPUTS
Front Control Panel of TV
Front Audio/Video Inputs
Yellow and White
Audio/Video Cables
Rear Jackpanel of VCR
(Mono VCR shown)
VCR, Camcorder, DVD, or an accessory
device with Audio and Video Outputs
VCR, Camcorder, DVD,
or an Accessory Device
If no Video Signal is present, the TV will
display a “BLUE” screen and shut itself off
in about five minutes. If the TV is tuned to
the AV channel and there is no Video
Signal present, the screen will remain
black, then the TV will shut itself off in
about five minutes.
