English
11
FM Antenna
1
2
●
For better FM stereo reception, connect an
outdoor FM antenna to the FM ANTENNA
terminal.

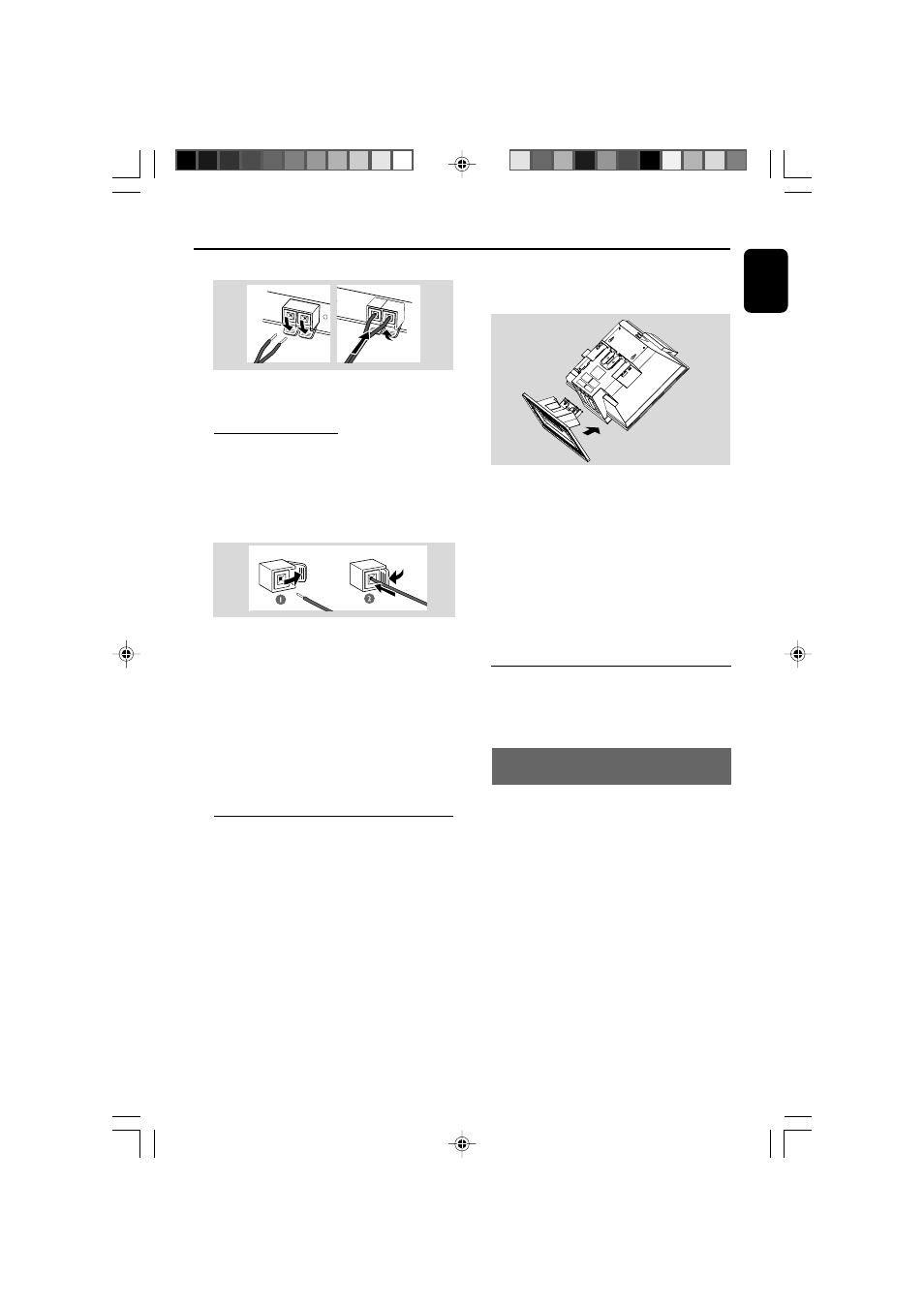

C Speakers Connection
Front Speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "RIGHT" and left
speaker to "LEFT", colored (marked) wire to "+"
and black (unmarked) wire to "-".
●
Fully insert the stripped por tion of the speaker
wire into the terminal as shown.
Notes:
– For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
Placing the set and speakers
With the supplied detachable stands and wall
mounting kit, you can either place the main set
and speakers on desktop or mount them onto
wall. Desktop installation is taken for example
here. For how to mount the system onto wall,
please refer to Appendix and the attached Wall
Mounting Instructions.
Preparations
1
Align the side marked PRESS
4 of the larger-
size stand with the slots at the bottom of the
main set.
2
Push the stand down into the slots until you
hear a click.
3
Attach the two smaller-size stands to the
speakers in the same way.
4
Place the main set and speakers upright on the
desktop with the suppor t of the stands.
Note:
– To remove the stand from the main set or either
speaker, while pressing down PRESS
4, pull the
stand out from the slots.
Optional connection
The optional equipment and connecting cords are
not supplied. Refer to the operating instructions
of the connected equipment for details.
Connecting other equipment to your
system
Connect the audio left and right OUT terminals
of a TV, VCR, Laser Disc player, DVD player or
CD Recorder to the AUX/CDR IN terminals.
Note:
– If you are connecting equipment with a mono
output (a single audio out terminal), connect it to
the AUX left terminal. Alternatively, you can use a
“single to double” cinch cable (the output sound
still remain mono).
