SERVICE (cont.)

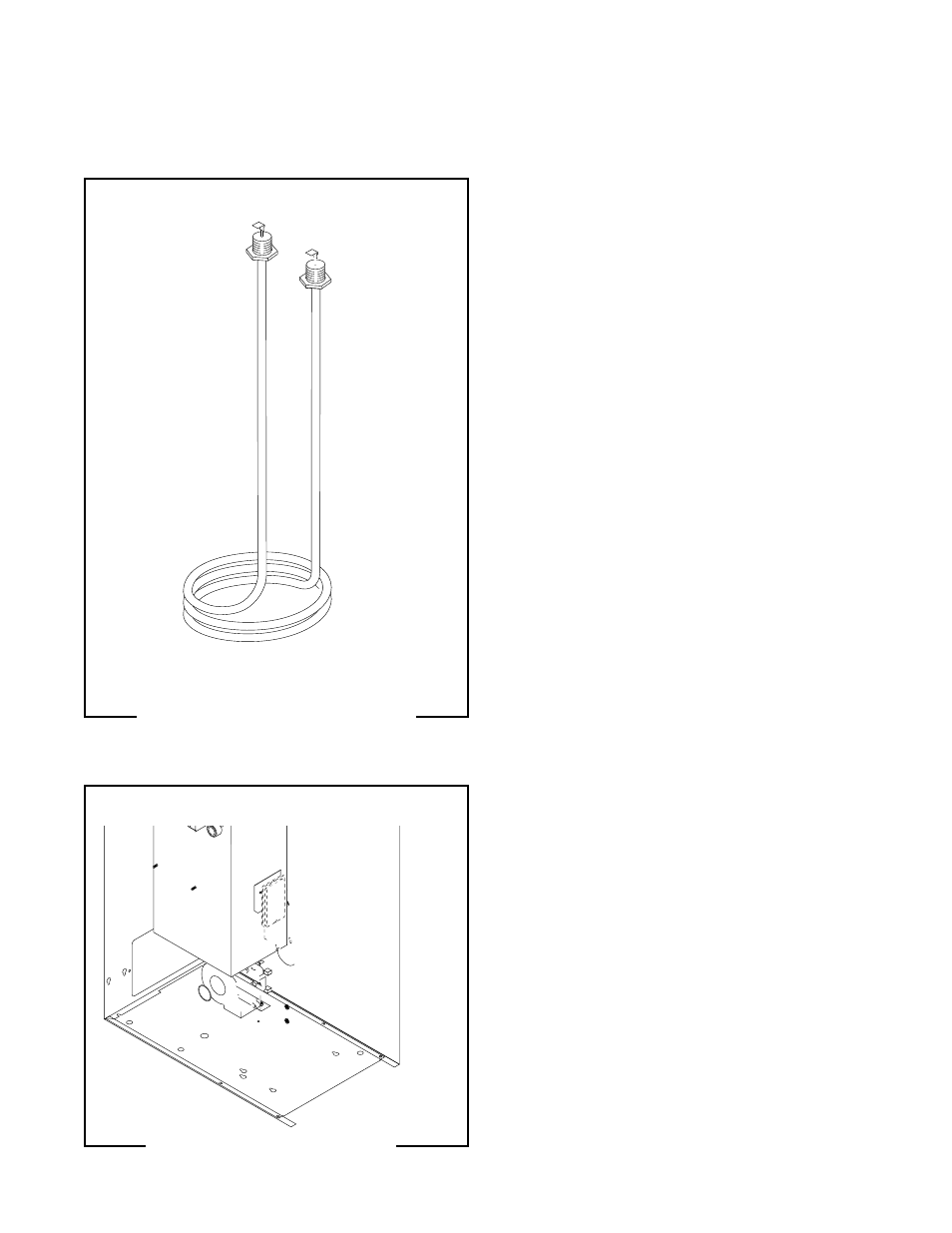

14. Refer to Fig. 29 when reconnecting the wires to the
tank heater.
TANK HEATER (cont.)
FIG. 29 TANK HEATER TERMINALS
P1218
FIG. 30 TANK HEATER SWITCH
TANK HEATER SWITCH
P1505
