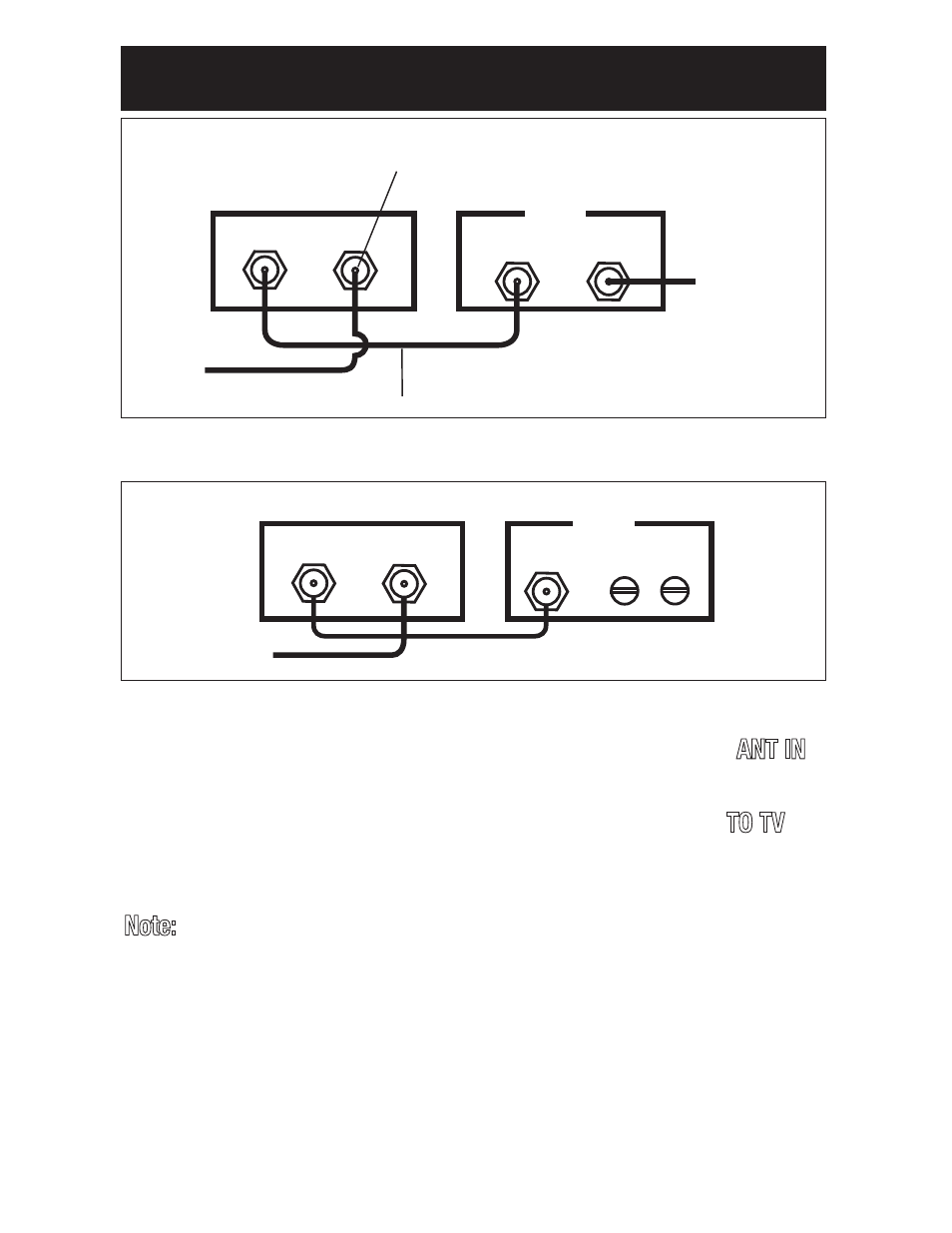

Option 2: If your TV is not already connected to another VHF source:
a. Disconnect the current CATV/antenna cable from the 75-ohm input
terminal of your TV, and reconnect it to the RF Modulator’s ANT IN
terminal.
b. Then add a 75-ohm coaxial cable connected between the TO TV
terminal of the RF Modulator and the 75-ohm VHF input terminal on
your TV.
Note: If your TV has only 300-ohm VHF screw terminals, use a 75-ohm-
to-300-ohm matching transformer to complete the connection.
4. Plug the RF Modulator’s power cord into a standard AC outlet.
CONNECTIONS
continued
75 Ohm 75 Ohm
OUT IN
CATV
VHF
Add this cable
Reconnect
here
RF Modulator VCR
ANT IN TO TV
TO TV
