CONTROLS POWER SUPPLY
TOP AND FRONT PANEL
1 Source selector - to select source of sound:
CD-RADIO-TAPE and also the POWER OFF
switch
2 VOLUME - to adjust volume level
3 DBB - Dynamic Bass Boost: for a more vivid
bass response
CASSETTE RECORDER:
4 PAUSE
; - to interrupt recording or playback
STOP•OPEN
9 / - to stop the tape and to
open the cassette holder
SEARCH
5 or 6 - to fast wind/rewind the
tape
PLAY
1 - to start playback
RECORD
0 - to start recording
5 Cassette compartment
CD PLAYER:
6 CD Display - to show the CD functions
7 PLAY•PAUSE
2; - to start or interrupt CD play
STOP
9 - to stop playback or erase a
programme
CD MODE - to select a different play mode,
e.g. SHUFFLE/REPEAT; to programme and
review programmed track numbers
SEARCH
∞ or § - to skip or search a
passage/ track backwards or forward
8 LIFT TO OPEN - to open/ close the CD door
RADIO:
9 BAND - to select FM/MW wave band
0 Tuning dial pointer
! TUNING - to tune to radio stations
BACK PANEL
@ Battery door - to open the battery
compartment
# BEAT CUT switch - to eliminate any whistle
tones during MW recordings
$ Telescopic aerial - to improve FM
reception
% p - 3.5 mm stereo headphone socket
Note: Connecting headphones will switch off the
loudspeakers
^ AC MAINS - socket for mains lead

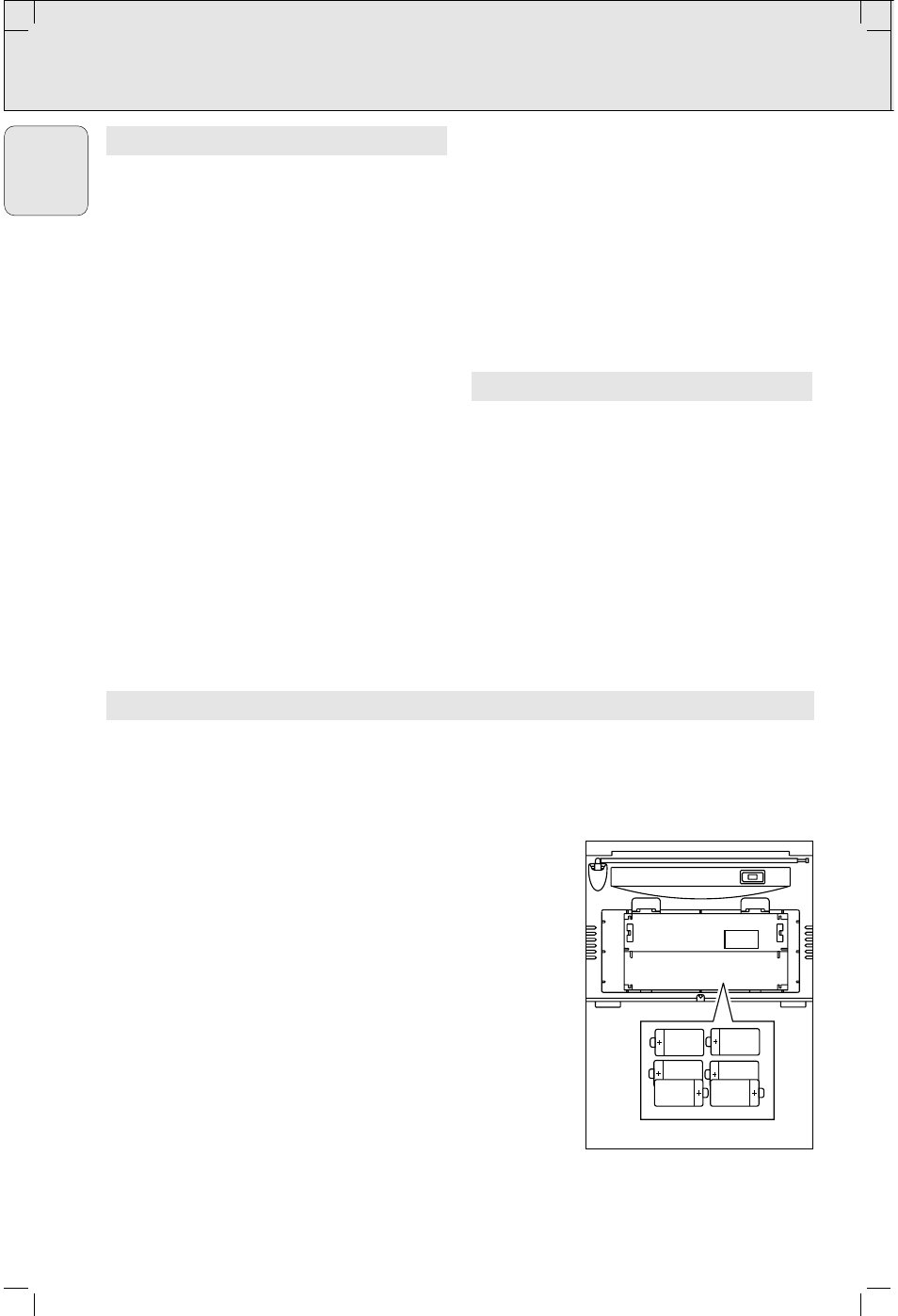

BATTERIES
Whenever convenient, use the mains supply if you want to
conserve battery life. The battery supply will be switched off when
the set is connected to the mains. Make sure you remove the plug
from the set and wall outlet before inserting batteries.
Batteries (optional)
1. Open the battery compartment and insert six batteries, type R20,
UM1 or D-cells (preferably alkaline) with the correct polarity as
indicated by the (
+ ) and ( - ) symbols inside the compartment.
2. Replace the compartment door, making sure the batteries are
firmly and correctly in place. The set is now ready to operate.
– Incorrect use of batteries can cause electrolyte leakage and will
corrode the compartment or cause the batteries to burst.
Therefore:
– Do not mix battery types, e.g. alkaline with carbon zinc.
Only use batteries of the same type for the set.
– When inserting new batteries, do not try to mix old batteries
with the new ones.
– Remove the batteries if the set is not to be used for a long
time.
Batteries contain chemical substances, so they should be
disposed of properly
6x R20/UM 1/D-CELL
