EXTERNAL DEVICE RECORDING
IN
OUT
VIDEO
OUT
Y
P
R
/C
R
P
B
/C
B
R
L
R
L
VIDEO
IN
S-VIDEO
S-VIDEO
AV IN
AV OUT
COMPONENT
VIDEO OUTPUT
IN
R
L
VIDEO
IN
S-VIDEO
AV IN
IN
OUT
VIDEO
OUT
Y
P
R
/C
R
P
B
/C
B
R
L
R
L
VIDEO
IN
S-VIDEO
S-VIDEO
COAXIAL
HDMI OUT
AV IN
AV OUT
COMPONENT
VIDEO OUTPUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
front of this unit
rear of this unit
3475
3475
AUDIO OUT
DV-OUT
L
R
VIDEO
OUT
S-VIDEO
OUT
AUDIO OUT
L
R
VIDEO
OUT
S-VIDEO
OUT
or
to E1 IN
external device
(camcorder, VCR etc.)
S-video
cable
RCA
video
cable
S-video
cable
DV cable
(4-pin)
RCA
video
cable
RCA
audio
cable
RCA
audio
cable
to E2 & E3 IN
or
or
or
E2
E1
E3
or

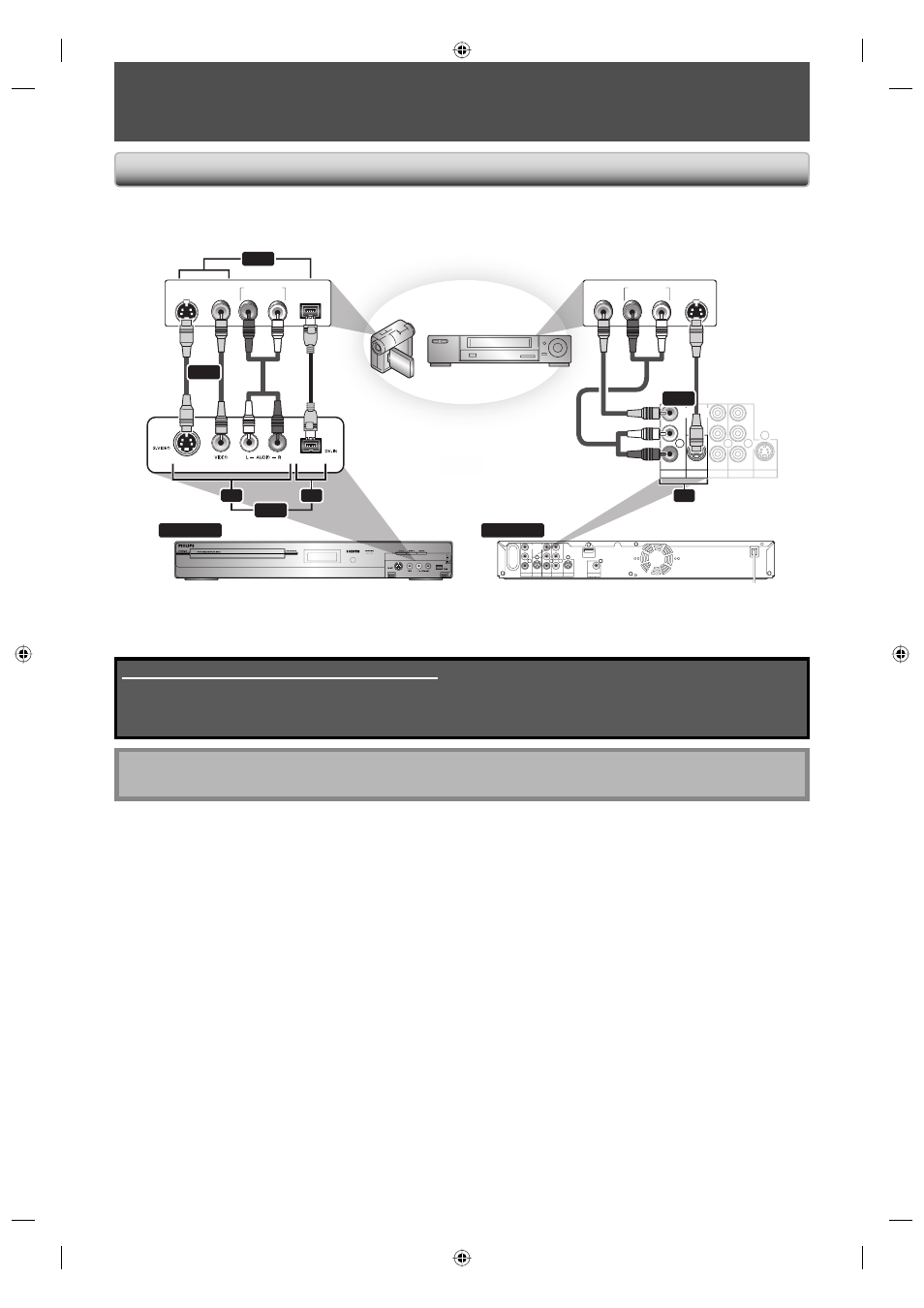

Connect the external device properly to either E2 (front) or E1 (rear) input jacks of this unit by using S-video or RCA
audio / video cables. If you are connecting a DV-camcorder, connect it to E3 (front) by using DV cable.
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
Note
• When connecting an external device of monaural output to this unit, use AUDIO L jack of E2 (Front).
If you used E2 or E1 connection, make sure to select the appropriate video input type by following the steps in
“SETTINGS FOR THE VIDEO INPUT” on page 14.
Connection to an External Device
