13 EN
Recording
Playback
Editing
Introduction
Connections
Basic Setup
Function Setup
Others
13 EN

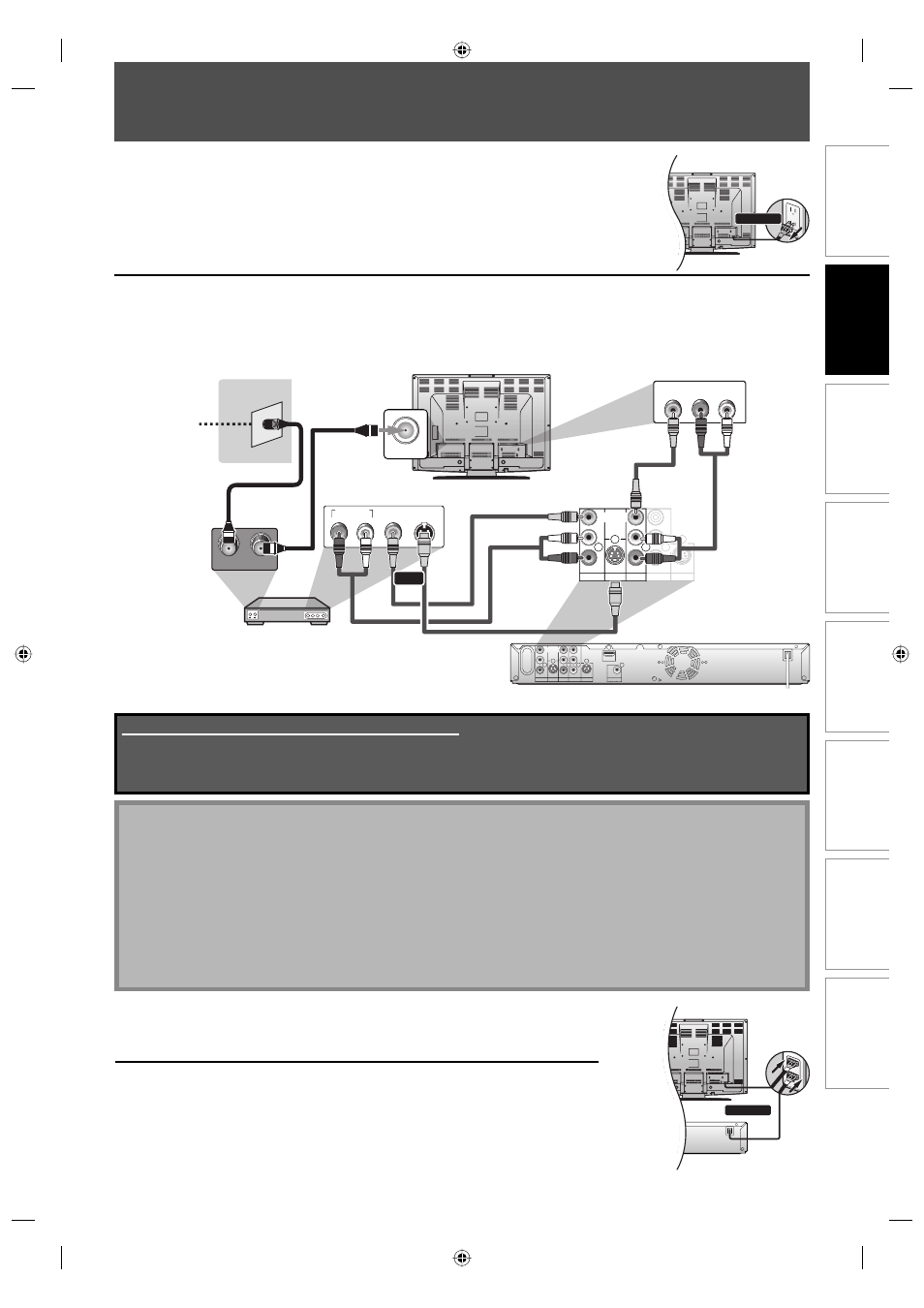

CONNECTION TO AN EXTERNAL TUNER
Note
• Required cables and connecting methods differ depending on the external tuner.
For more information, please contact your external tuner provider.
• Instead of using video out jack of this unit, you can also use S-video out jack, component video output jack, or
HDMI out jack (no audio out jack connection required) for connecting to your TV.
With this setup:
• You can record any unscrambled channel by selecting the channel on the external tuner. Be sure that the external
tuner is turned on.
• Signal from the external tuner can be output only on CVBS output even when the power of the unit is off.
• You cannot record one channel while watching another channel.
IN OUT
VIDEO OUT Y
P R /C R
P B /C B
R
L
R
L
VIDEO IN
S-VIDEO S-VIDEO
COAXIAL
HDMI OUT
AV IN AV OUT COMPONENT VIDEO OUTPUT DIGITAL AUDIO OUTPUT PCM / BITSTREAM
OUT IN
rear of your TV
external tuner
ANT. IN
rear of this unit
AUDIO IN
L R
VIDEO IN
AUDIO OUT
L R
VIDEO
OUT
S-VIDEO
OUT
RF coaxial cable
e.g.)
TV signal
IN OUT
VIDEO
OUT Y
P R /C R
P B /C B
R
L
R
L
VIDEO
IN
S-VIDEO S-VIDEO AV IN AV OUT COMPONENT VIDEO OUTPUT
IN
VIDEO
OUT
R
L
R
L
VIDEO
IN
S-VIDEO AV IN AV OUT
RCA audio cable
RCA audio cable
RCA video cable
RCA video cable
S-video cable
RF coaxial cable
or
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
IN
IN OUT OUT
VIDEO OUT Y
PR/CR
PB/CB R
L
R
L
VIDEO IN
S-VIDEO ANTENNA COAXIAL
HDMI OUT
AUDIO IN AUDIO OUT COMPONENT VIDEO OUTPUT DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
rear of this unit
rear of your TV
connect
ANT. IN
VHF / UHF
antenna
RF coaxial cable
Cable TV
company
or
rear of your TV
disconnect Disconnect
2
This section describes how to connect this unit to an external tuner such as cable/satellite box.
• When you change the connections, all devices should be turned off.
• Refer to the manual accompanying external devices for more information.
1 Disconnect the power cords of the devices from the AC outlet.
2 Make the connection as illustrated below.
4 After making the connection as described above, make
sure to select the appropriate video input type by
following the steps in “SETTINGS FOR THE VIDEO INPUT”
on page 14.
3 Plug in the power cords of the devices to the AC outlet.
