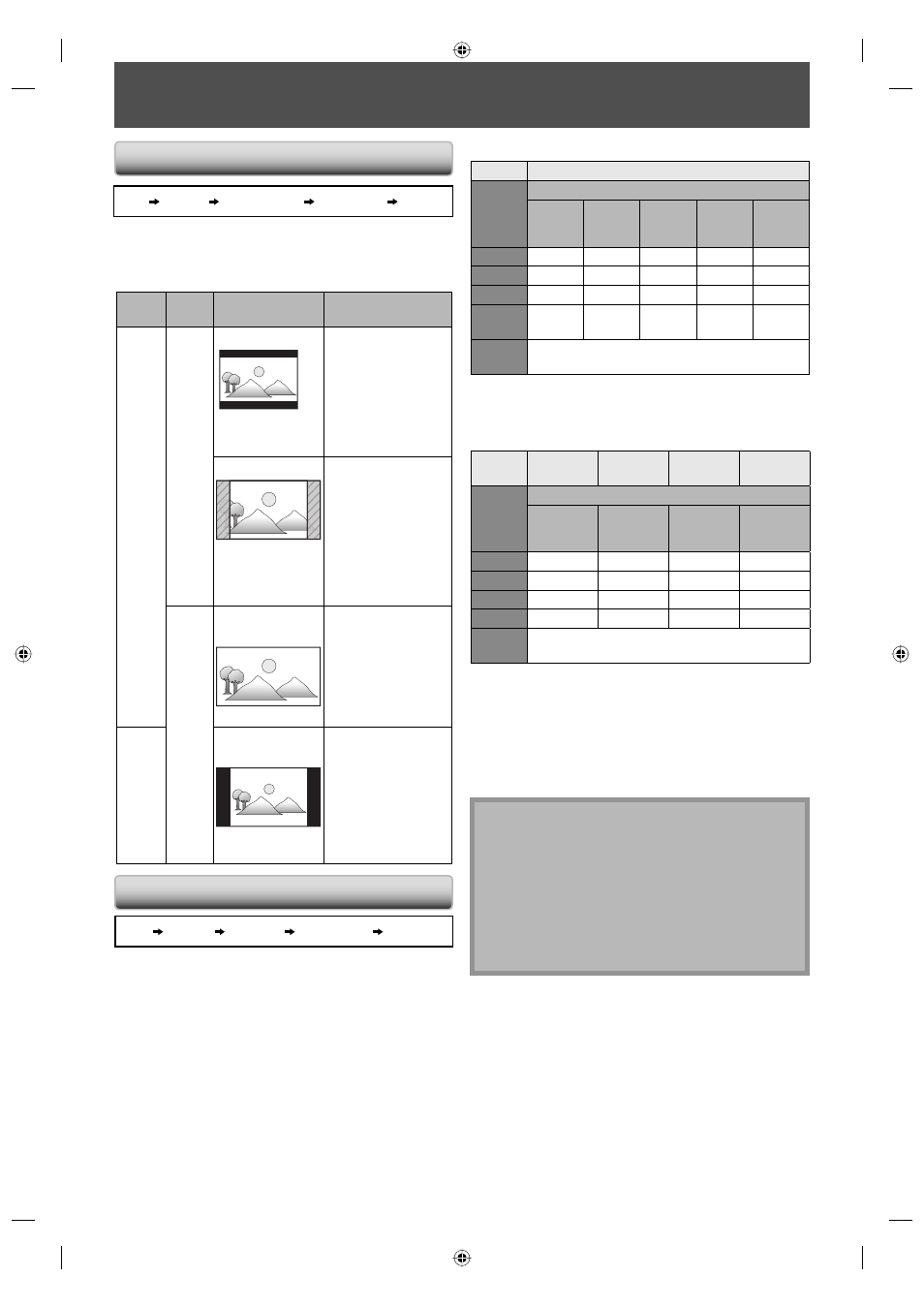

34 EN
SETUPS
Use this feature to adjust the aspect ratio of the video
source which is different from your TV’s ratio to fit your
TV monitor without distorting the picture. Descriptions
of each setting are as follows:
Video
source
Your
TV
Option Description
16:9
4:3
4:3 Letter Box To enjoy 16:9
picture on 4:3
monitor:
16:9 picture is
scaled down until
the both sides of
the picture fits the
4:3 TV.
4:3 Pan & Scan To enjoy 16:9
picture on 4:3
monitor:
Both sides of the
picture are trimmed
to fit the 4:3 TV
without distorting
the aspect ratio of
the picture.
16:9
16:9
Widescreen To enjoy 16:9
picture on 16:9
monitor:
Select this setting
when you want to
enjoy 16:9 picture
on the 16:9 TV.
4:3
16:9
Squeeze To enjoy 4:3 picture
on 16:9 monitor:
Use this setting to
display 4:3 picture
on the 16:9 TV
without distorting
the aspect ratio of
the picture.
HOME “Settings” “Advanced Setup” “Video Output” “TV Shape”
HOME “Settings”
“Advanced
Setup”
“Video Output”
“HDMI Video
Resolution”
Set the resolution of the video signal being output from
the HDMI OUT.
You can select the desired “HDMI Video Resolution”
among the settings listed below:
“Auto”,“480p”,“720p”,“1080i”,“1080p”
When you make a selection, the TV monitor temporarily
goes blank and then comes back again. If it does not,
press [OUTPUT] to change the resolution or press and
hold [B (PLAY)] on the front panel for 5 seconds to
change the setting back to its default. •
Actual Output Resolution by Media:
Media BD
Setting in
the “HDMI
Video
Resolution”
Source
480/60i 720/60p 1080/60i 720/24p 1080/24p
480p 480/60p 480/60p 480/60p 480/60p 480/60p
720p 720/60p 720/60p 720/60p 720/60p 720/60p
1080i 1080/60i 1080/60i 1080/60i 1080/60i 1080/60i
1080p
1080/60p 1080/60p 1080/60p 1080/60p
1080/24
or 60p (*1)
Auto The highest resolution supported by your
display device will be in effect automatically.
(*1) To output the video in 24Hz, the connected display
device must support 24Hz output, and “HDMI 1080p/24”
should be set to “Auto”.
Otherwise, the image will be output in 60Hz.
Media DVD DivX®
viewing
OSD-only
viewing
Setting in
the “HDMI
Video
Resolution”
Source
480/60i 60,30,other
480p 480/60p 480/60p 480/60p 480/60p
720p 720/60p 720/60p 720/60p 720/60p
1080i 1080/60i 1080/60i 1080/60i 1080/60i
1080p 1080/60p 1080/60p 1080/60p 1080/60p
Auto The highest resolution supported by your
display device will be in effect automatically.
When HDMI cable is connected, only “480i” and the
resolution selected in the “HDMI Video Resolution” will
be available for the “Component Output”.
Composite video out (VIDEO OUT) can only output
480i/60.
When outputting 24Hz signal from the HDMI OUT, no
signal will be output from the COMPONENT VIDEO OUT
and the VIDEO OUT.
Note
The selected resolution must also be supported by
your display device.
If your TV and the unit is connected by a DVI cable
and if you select “Auto”, “480p” will be in effect
automatically.
Pressing [B (PLAY)] on the front panel for 5 seconds
changes the setting back to its default. (“Component
Output” setting will also be reset to default (480i).)
Refer also to your TV’s manual. •
•
•
•
•
•
•
TV Shape
HDMI Video Resolution
