25

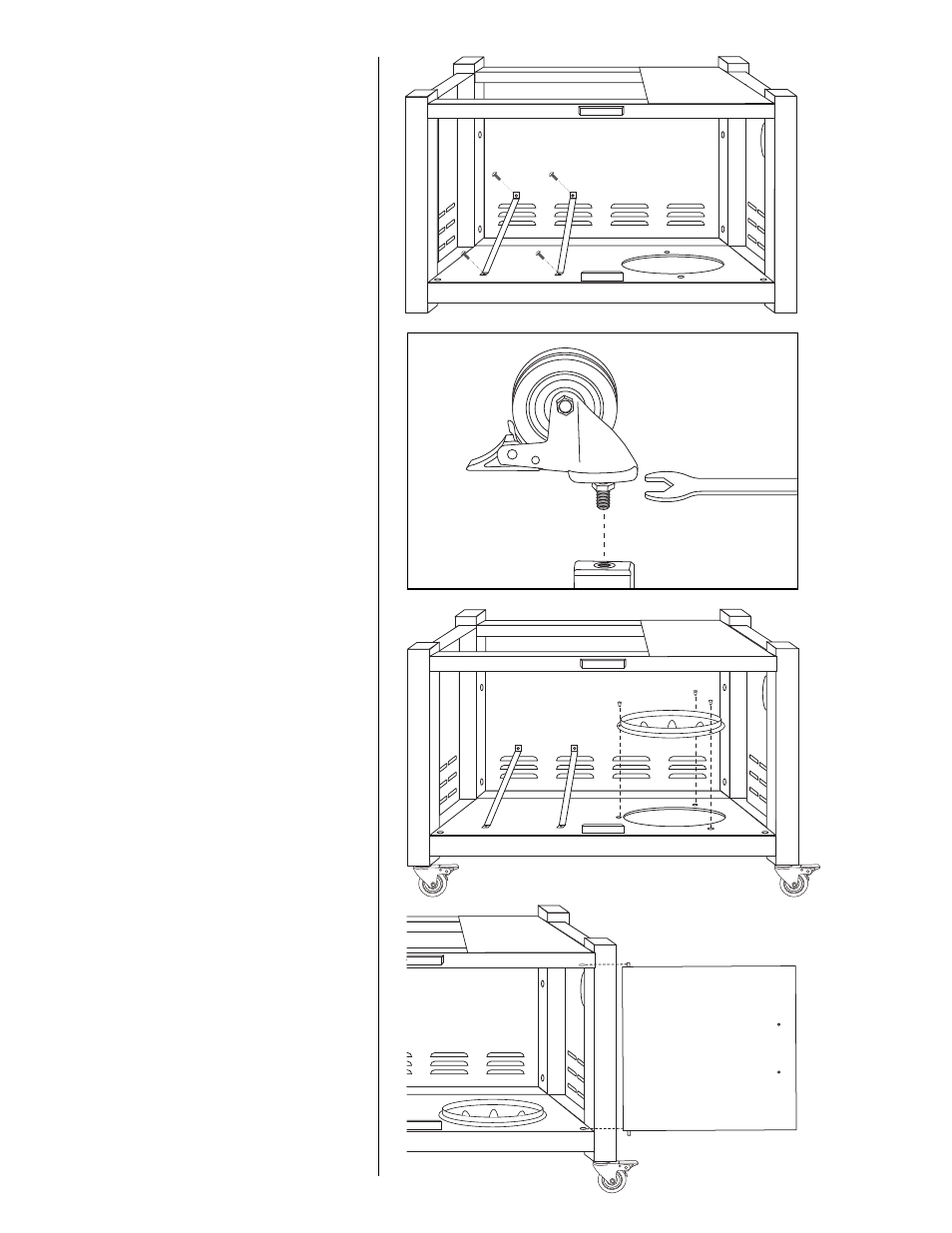

Step 5
Use four M6 X 12 mm bolts (black)
to attach two tank block bars to
bottom shelf and back cart panel
Note: With the help of a friend, turn
the cart over. Try to minimize
the stress to the legs.
Step 6
Attach four casters to legs. Tighten
with wrench
Note: With the help of a friend, turn
the cart to its upright position.
Try to minimize the stress to
the legs.
Step 7
Place the tank holder into the cart
base and secure with 3 plastic
rivets.
Step 8
Insert pin in bottom of right side
door into hole in base of cart. Then
align door with upper door bracket.
Depress spring pin located on top
edge of door and slide door toward
hole in upper door bracket until
spring pin locks into hole. Repeat for
other door.
