Brinkmann PRO SERIES 9620 User Manual
Page 25

Choose a good, cleared assembly
area and get a friend to help you put
your grill together. Lay cardboard
down to protect grill finish and
assembly area.
CAUTION! Some parts may contain
sharp edges. Wear
protective gloves if
necessary.

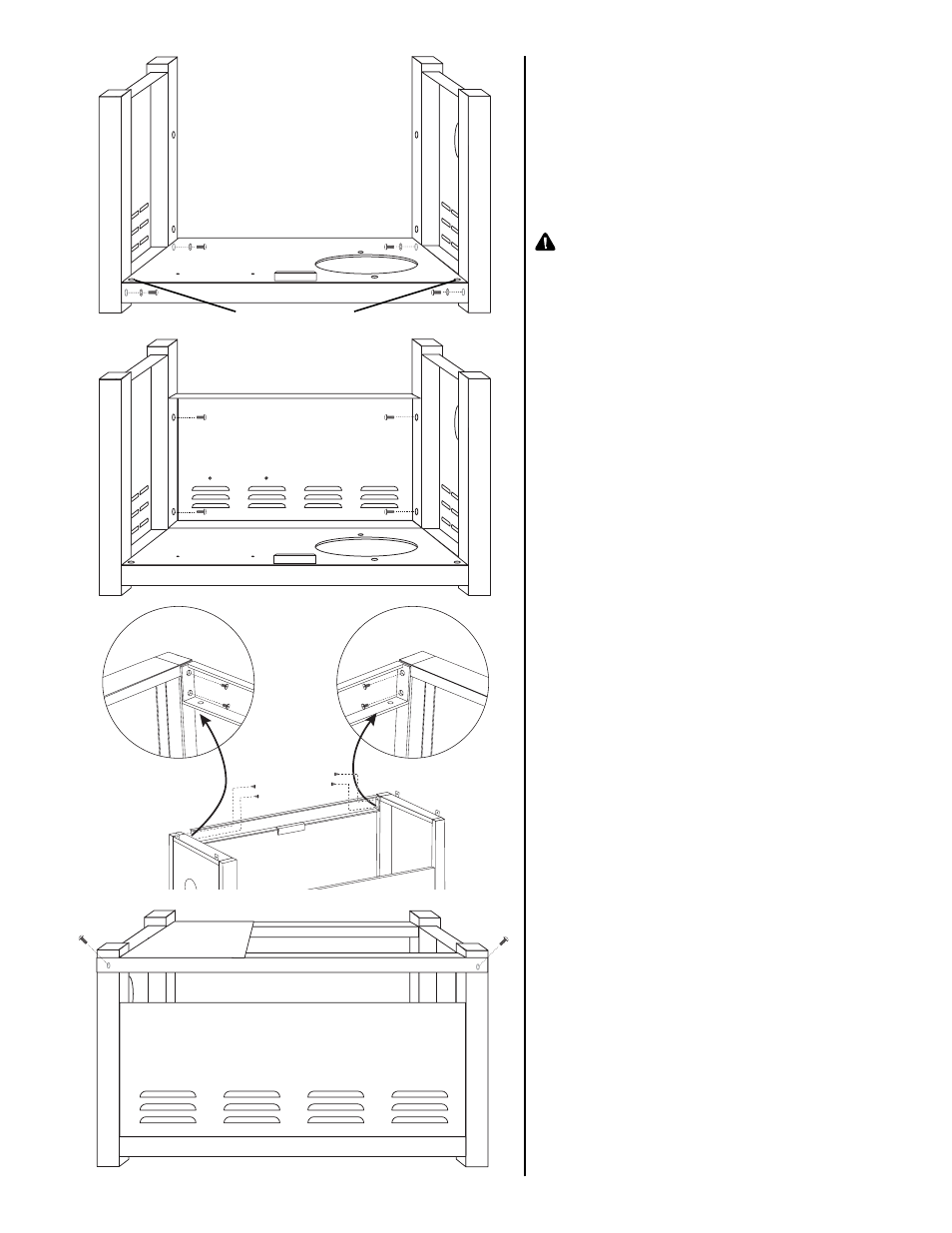

Step 1
Attach cart base to side panels. Insert
four M6 X 12 mm bolts (black) and
M6 star washers (black) through cart
base and into legs and tighten
securely. Be sure the door hinge pin
holes face forward.
Step 2
Attach back panel to legs using
four M6 X 12 mm bolts (black).
Step 3
Attach the upper door bracket using
four M6 X 12 mm bolts (black).
Step 4
Use two M4 self-tapping screws
(black) to attach the rear cart brace/
tank heat shield to rear legs. Heat
shield will rest on upper door bracket.
24
Door Hinge Pin Holes
Front
Back
