B101586-1-1011 Page 13
p
Atio
b
ASE
i
nStAllAtion

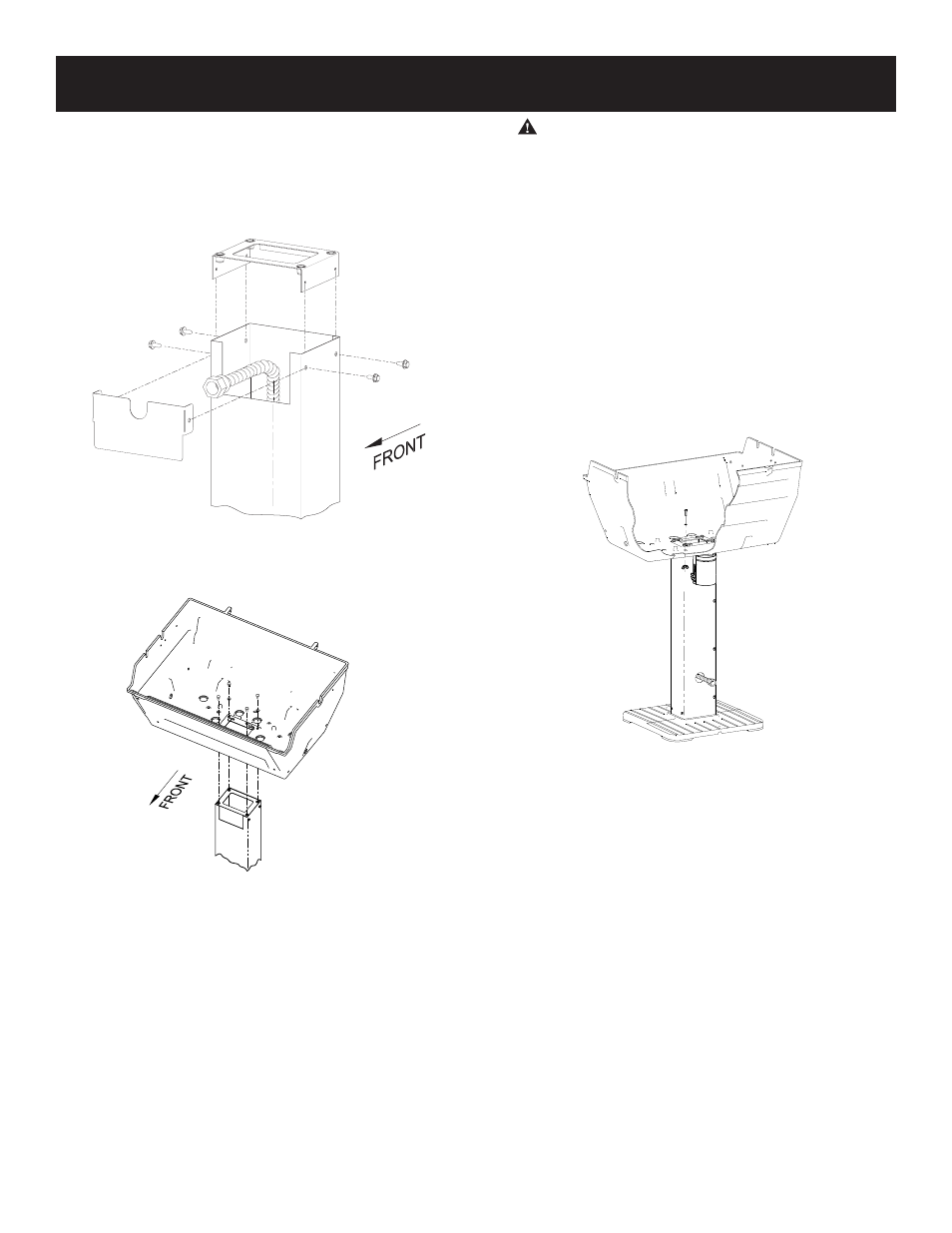

5. For R3 Series Grill Heads: Slide the Post Cover Plate onto the
front of the post. Slide the Upper Bracket onto the post. Secure
the Post Cover Plate and Upper Bracket to the top of the square
post using four #10 – ½ screws. See Figure 5.
For Grill Heads other than R3 Series: Slide the Upper
Bracket into the post. Secure the Upper bracket to the top of
the square post using four #10 – ½ screws. See Figure 5.
Figure 5
6. Position the grill head onto the post and fasten with ¼-20 x ¾
Hex Head and lock washers. See Figure 6.
Figure 6
7. Arrange with your local gas company or licensed contractor to
have a gas supply line connected to the inlet of the stainless
steel flex tube assembly. The gas supply must have a shutoff
valve that is close to the post in case of emergency and must
be shutoff when the grill is not in use.
Test for gas leaks as directed by the grill’s Owners Manual.
The grill and its individual shutoff valves must be disconnected
from the gas supply piping system during any pressure testing
of that system at test pressures in excess of 1/2 PSIG. The grill
must be isolated from the gas supply piping system by closing
its individual manual shutoff valves during any pressure testing
of the gas supply piping system at test pressures equal to or
less than 1/2 PSIG.
WARNING: DO NOT SUPPLY LP GAS TO A GRILL DE-
SIGNED FOR NATURAL GAS OR NATURAL GAS TO A GRILL
DESIGNED FOR LP GAS.
Gas leak tests should be completed as directed in the grill
owner’s manual.
8. Attach the grease cup bracket assembly to the bottom of the
grill casting and fasten with #10-24 x 3/4” bolt, 9/32 ID x 5/8 OD
washer, and #10-24 wing nut.
Note: Grill head comes assembled with the bottom casting. To
ease assembly remove grill top.
Loosen the wing nut and move the slide up or down to accept
the grease cup. Be sure to trap the rim of the cup as shown on
page 10. Use only the supplied grease cup or noncombustible
containers for the grease cup (aluminum or tin cans).
DO NOT use combustible containers such as Styrofoam or
paper cups.
Figure 7
9. Continue assembly as directed by the Owner’s Manual pack-
aged with the grill head.
