sezione
Installazione
Collegamento dei server allo Switch KVM CAT5 per
PMI (collegamento Sun Server con MiniDIN8):
Fase 1
Accertarsi che il server sia spento.
Fase 2
Utilizzando il modulo di interfaccia server Belkin OmniView per PMI per Legacy
Sun (F1DP101AeaAL), collegare il connettore VGA alla presa per il monitor

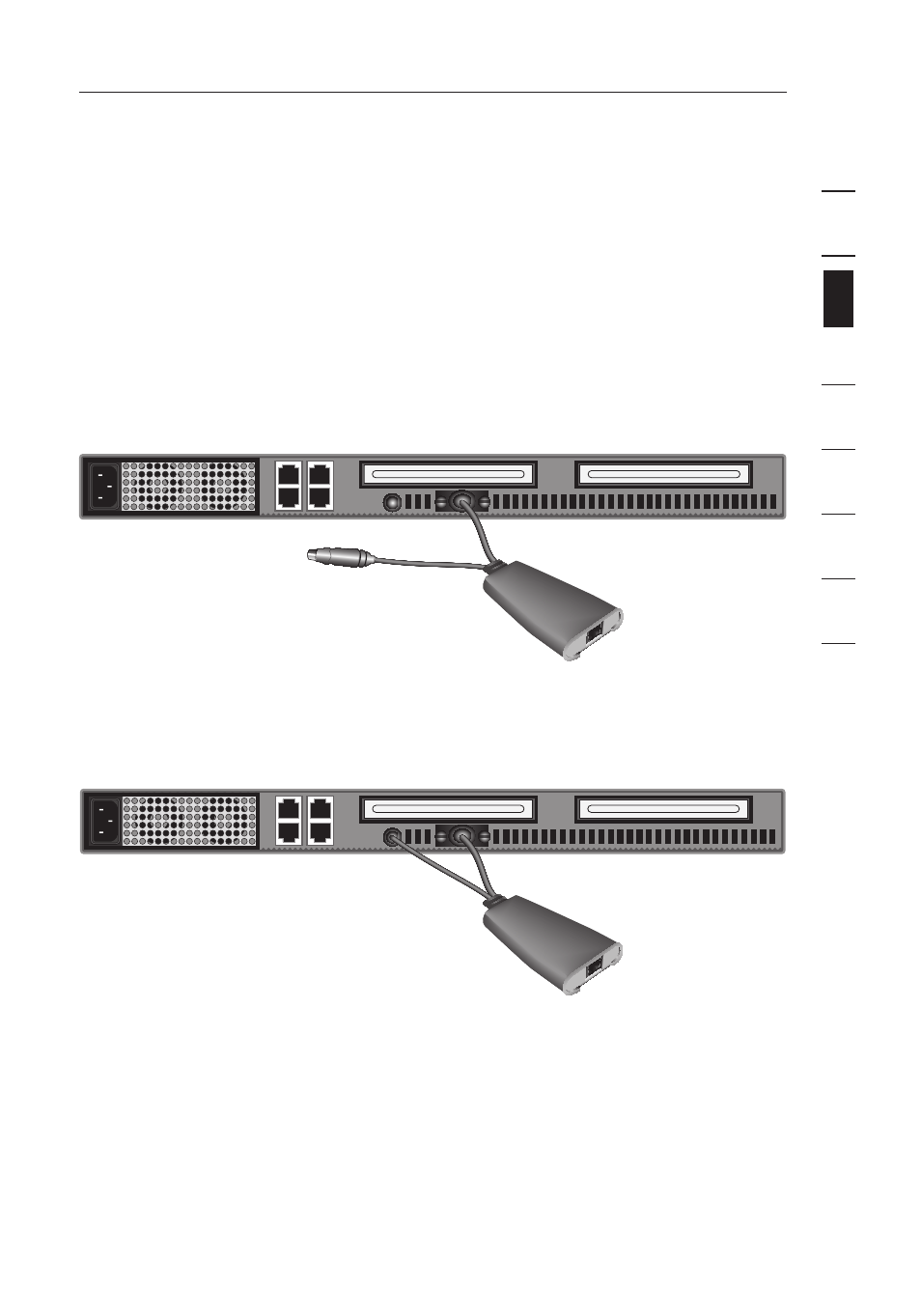

prevista sul server. (Vedere lo schema in basso.)
Fase 3
Collegare il connettore miniDIN8 ad una porta per tastiera miniDIN8 disponibile
del server. (Vedere lo schema in basso.)
