Step 3, Step 4 – Belkin F1DP108AEA User Manual
Page 19
16
Installation
Step 3

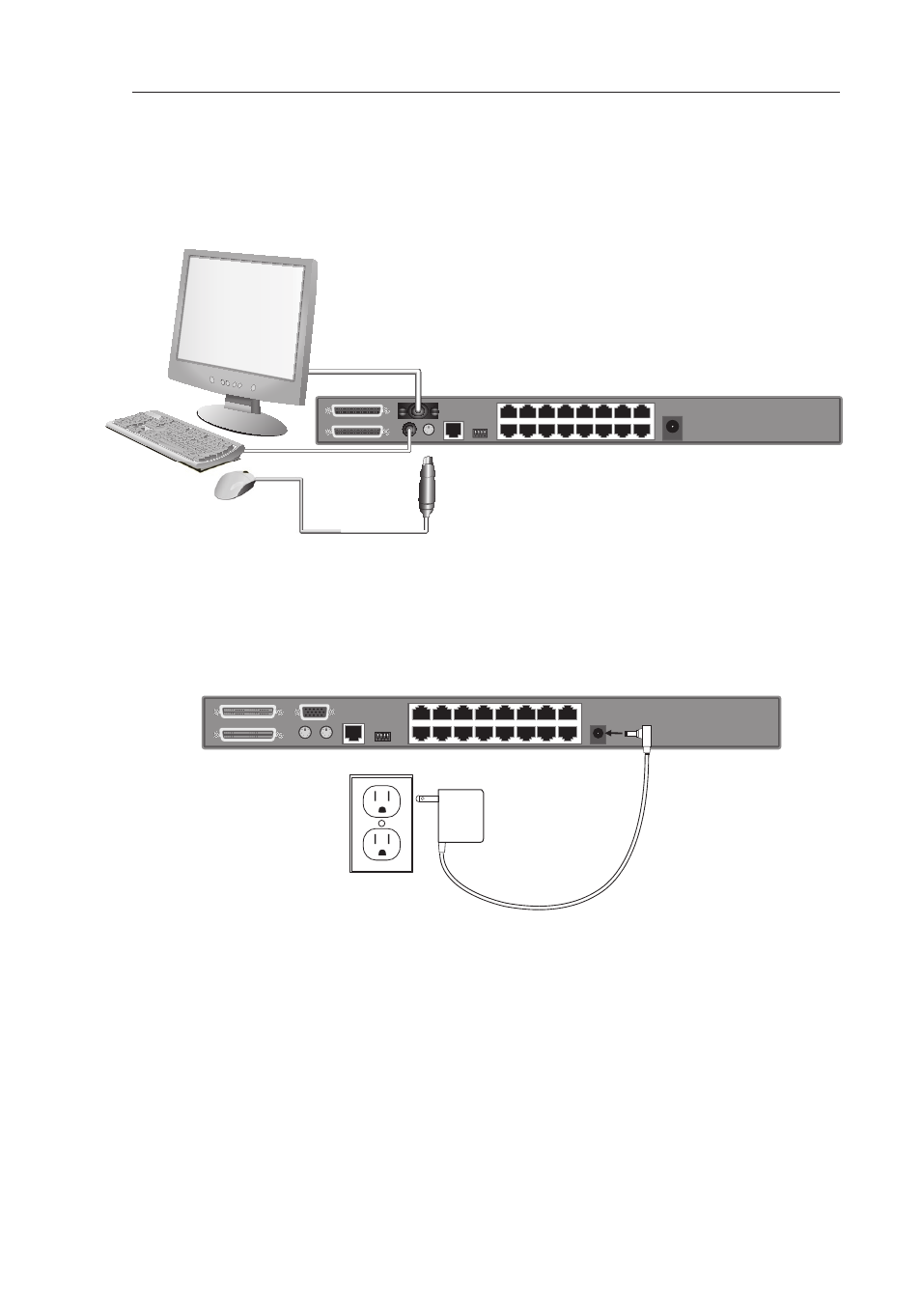

Connect the PS/2 mouse cable to the mouse port on the back of the SMB
CAT5 KVM Switch in the “Console” section. (Refer to diagram below.)
Step 4
Attach the power adapter to the DC power jack labeled “6VDC, 1A” located
on the rear panel of the SMB CAT5 KVM Switch. Only use the power adapter
supplied with the unit. (Refer to diagram below.)
Your SMB CAT5 KVM Switch is now installed and you are ready to
connect your servers.
(US power adapter shown)
