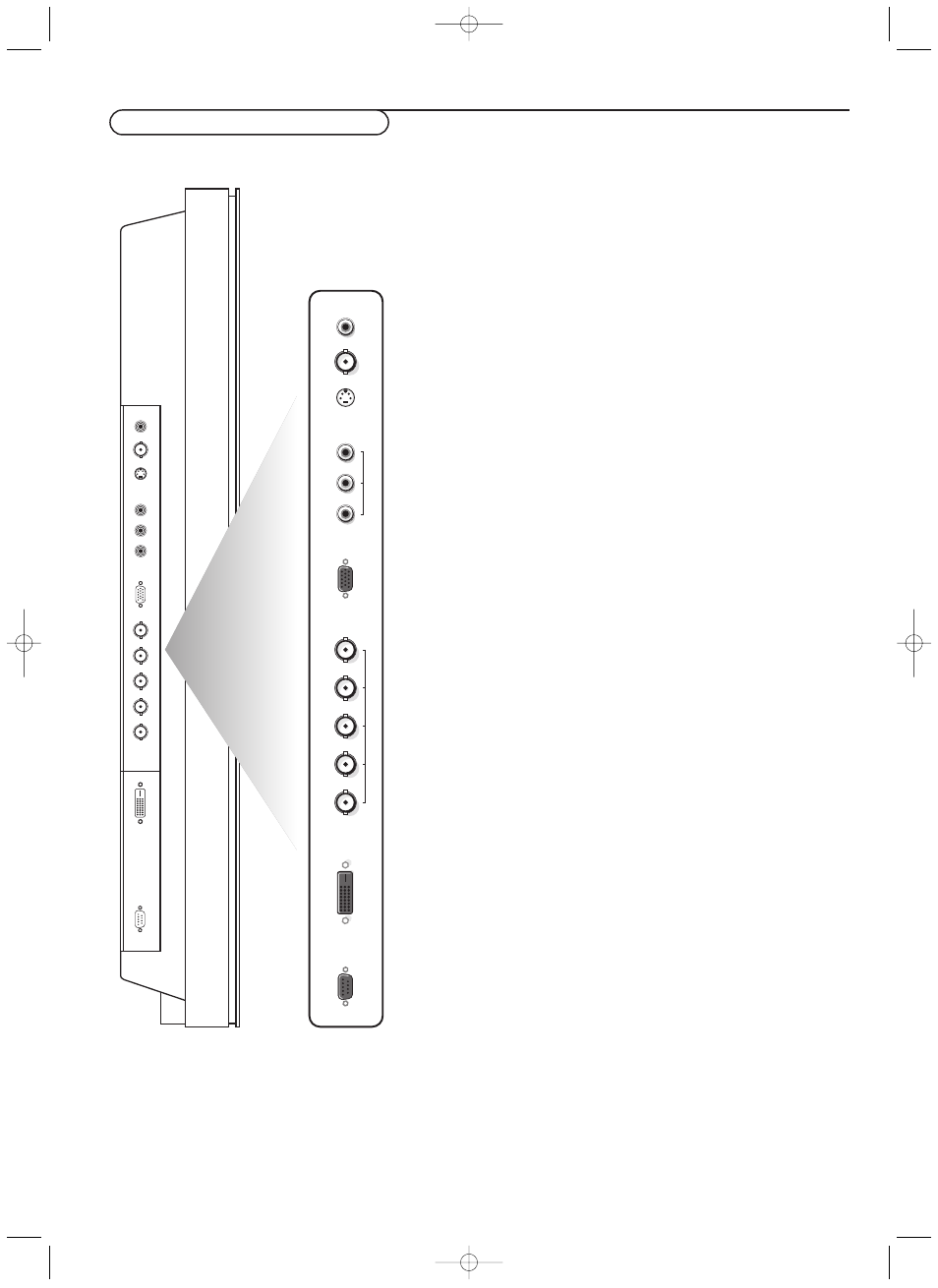

Connect Peripheral Equipment
You may connect 2 possible VGA sources ( RGB1 or RGB3 Digital ( DVI ) and
3 possible video sources ( AV1 , AV2 and AV3 ) to the left side of the
monitor.
AV1 Connect VCRs, DVDs or Laser Discs, etc. here.
CVBS 1 : cinch connector for Video CVBS
or CVBS 2 : BNC connector for Video CVBS
or Y/C 3 : S-Video connector for Y/C-SVHS video.
AV2 Connect DVD, HD, DTV or Laser Discs, etc. with YPbPr
connectors.
VGA Input for analog RGB signal of PC, etc.
AV3 Connect DVDs, HD or Laser Discs, etc. here.
Use the 5 BNC connectors for RGB input.
Use the R/PrG/YB/Pb connectors for component input.
Use the R/PrG/YB/Pb and HD connectors for RGB input with
composite sync (scart).
DVI Inputs a PC with a digital RGB signal.
RS 232c Serial I/O port
This connector allows you to control your monitor via external
equipment (e.g. PC) and a replacement of the remote control
CVBS 1
CVBS 2
Y/C
VGA
R/Cr/Pr
Y
Cb/Pb
Cr/Pr
DVD/HD1
RGB/DVD/HD2
G/Y
B/Cb/Pb
HD
DVI
EXTERNAL
CONTROL
