I f you cable signal uses a cable box or
decoder, follow the easy steps below to
complete the connection.
Cable Box (w/RF In/Outputs):
This connection will be mono.
1 Connect the Cable Company sup-
plied cable to the signal IN(put)
plug on the back of the Cable Box.
2 Using a separate round coaxial cable,
connect one end to the OUT(put)
(TO TV) plug on the back of the
Cable Box.
3 Connect the other end of the round
coaxial cable to the 75
Ω input on the
back of the television. Screw it down
finger tight.
NOTE: Set the OUTPUT CHANNEL
SWITCH on the back of the cable box to
CH 3 or 4. Tune the TV to the same chan-
nel and change channels at the cable box.

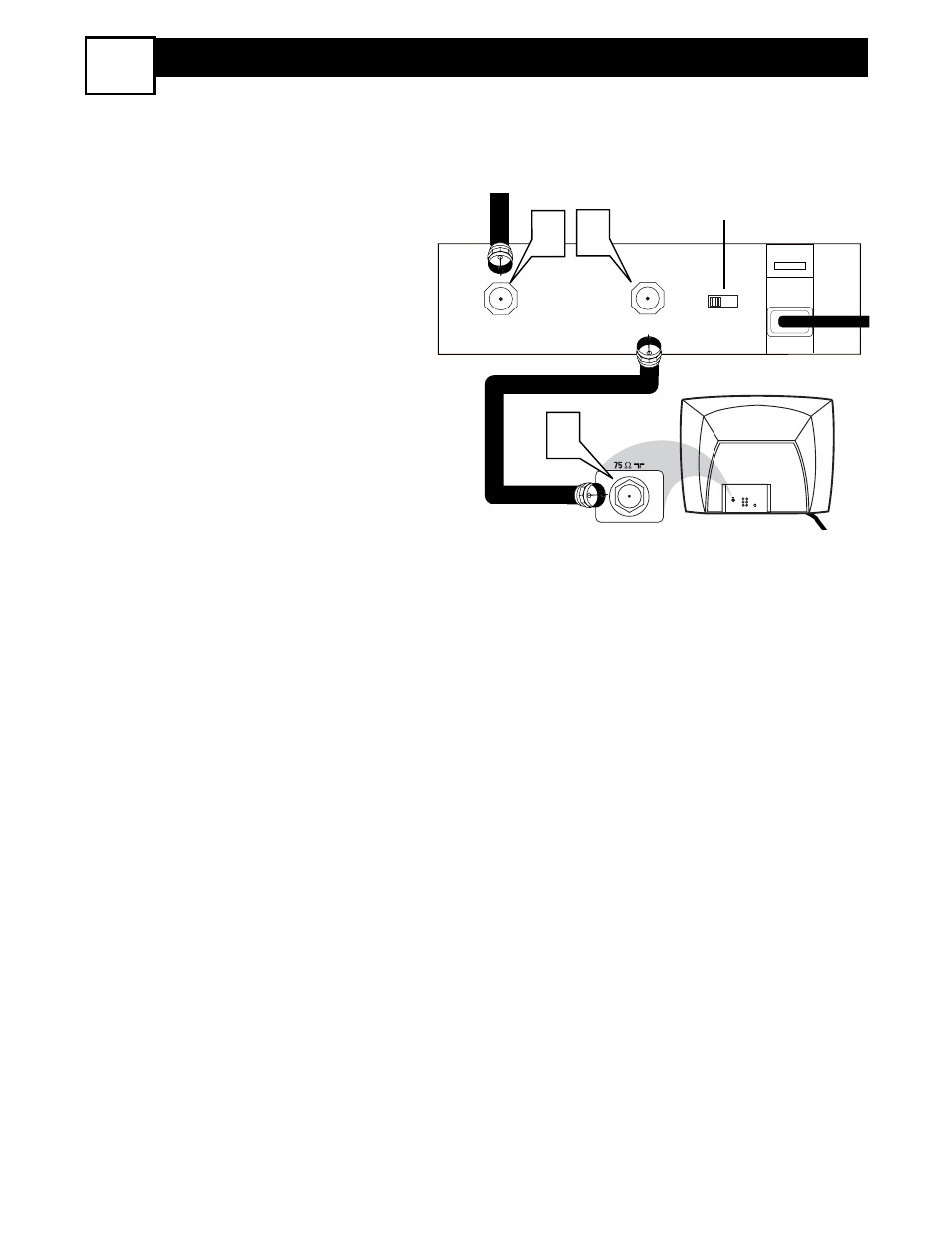

TO TV CABLE
IN
4
2 3
OUTPUT
CH
3 4
75 ⍀ VIDEO L AUDIO R
Monitor
out
S-VIDEO
AV1
in
Jack Panel Back of Cable Box
Cable Signal IN
from the Cable
Company
Round 75 Ω
Coaxial Cable
Jack Panel Back of TV
Output Channel Switch
