COMPOSER PRO MDX2200

Unbalanced use of
mono 1/4" jack plugs

Ring

Balanced use of
stereo 1/4" jack plugs

Balanced use with XLR connectors

Input

Output

Tip =
Signal

Tip =
hot (+ve)

Sleeve =
Ground / Shield

Tip

Sleeve

Strain relief clamp

Ring =
cold (-ve)

For connection of balanced and
unbalanced plugs, ring and sleeve have
to be bridged at the stereo plug.

1 = Ground / Shield
2 = hot (+ve)
3 = cold (-ve)

For unbalanced use pin 1 and pin 3 have to be bridged

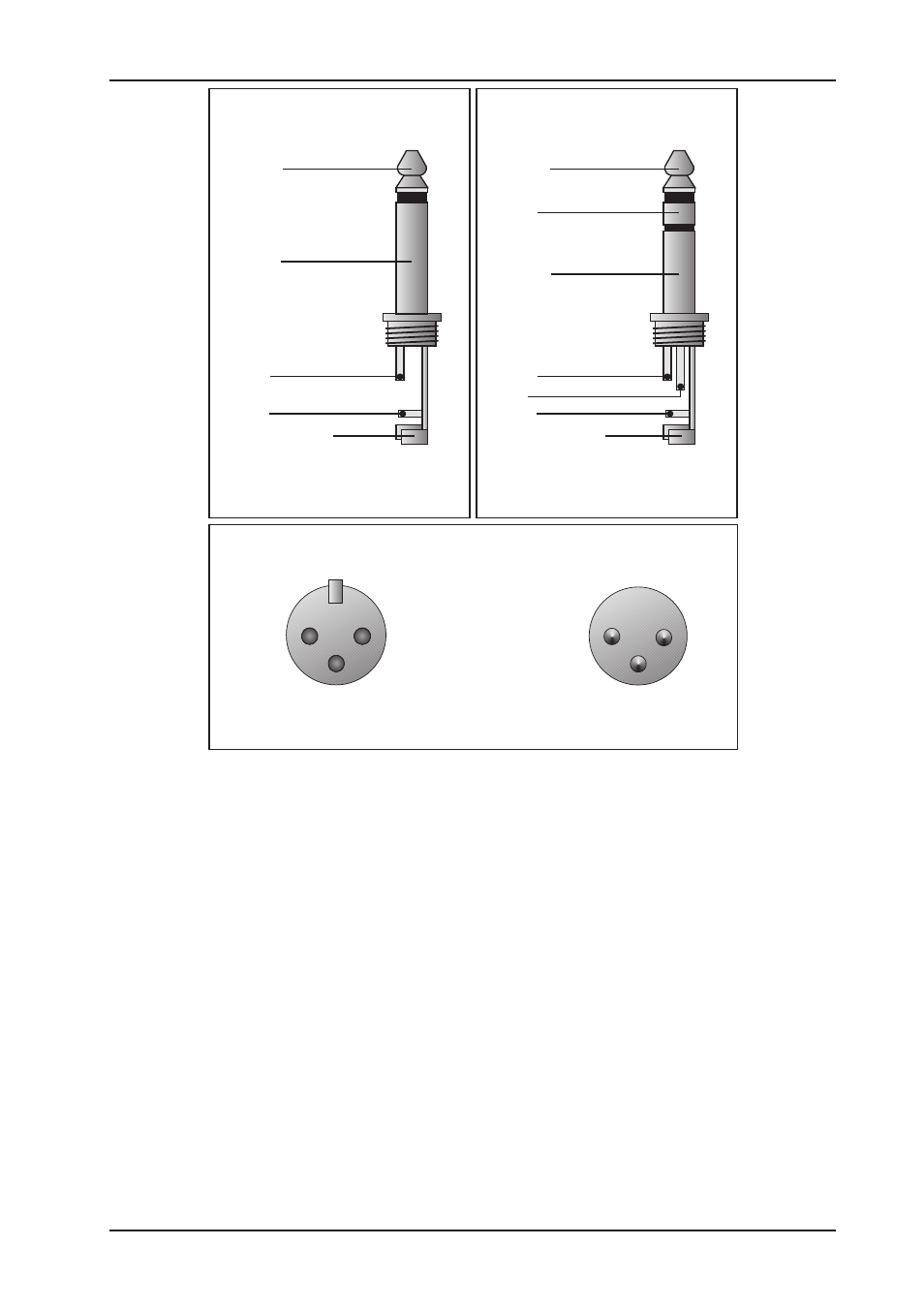

Fig. 7.2: Different plug types

7.3 Selecting the operating level

With the OPERATING LEVEL switch on the rear of the BEHRINGER COMPOSER PRO you can adjust the

internal operating level of the unit. Thus, the COMPOSER PRO can be adapted perfectly to various levels (e.g.

both the typical home recording level of -10 dBV and the professional level of +4 dBu). The level meters are

referenced automatically to the selected level, i.e. an optimum operating range of the meters will always be

ensured.

7. INSTALLATION
