Philips MX5600D-99 - Manual (Page 19)

17
English

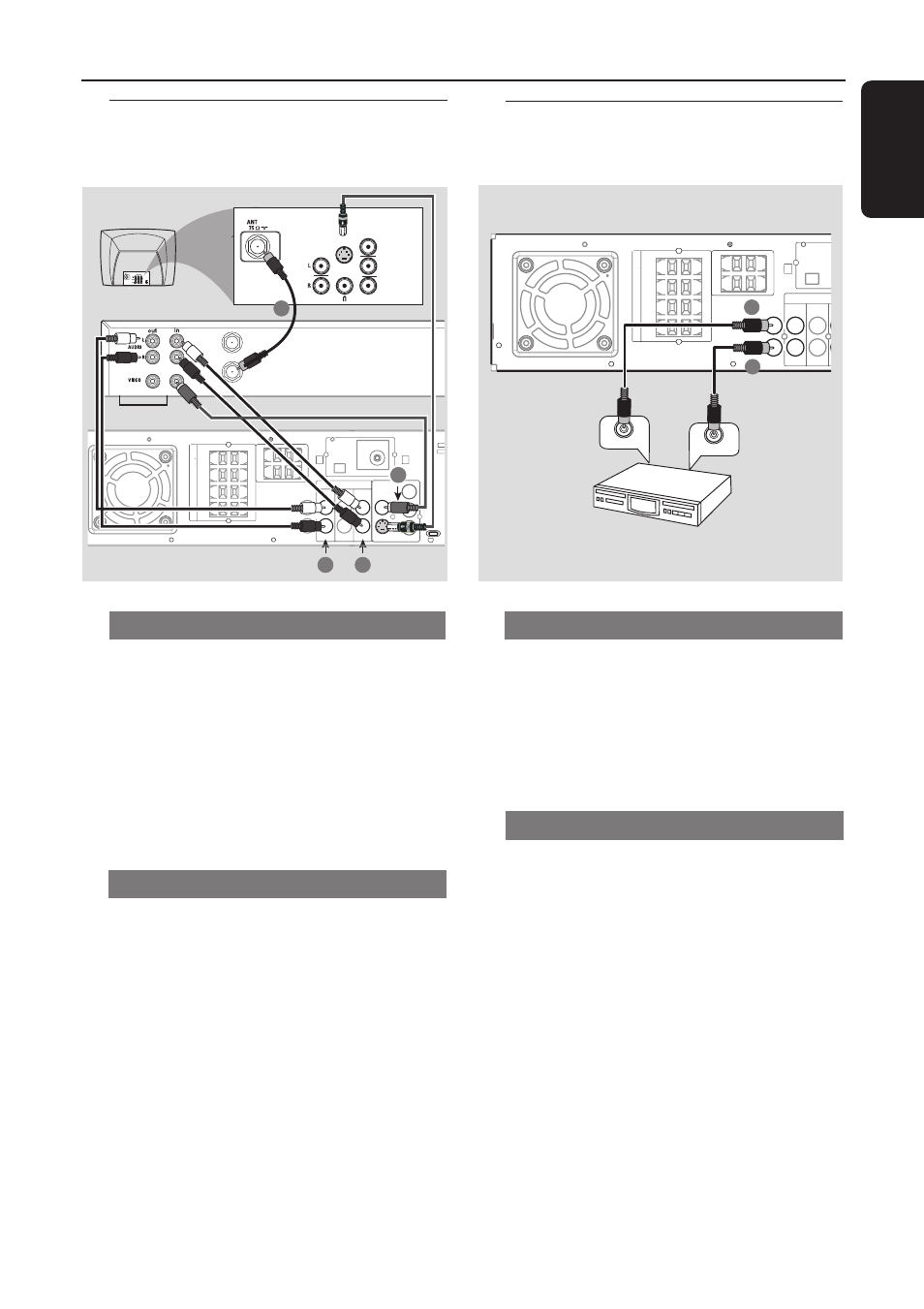

Connecting a VCR or
Cable/Satellite Box
DIGITAL
OUT
DIGITAL
IN
AUX
IN
TV
IN LINE
OUT
AUDIO VIDEO
OUT
CVBS
S-VIDEO
FM ANTENNA
AM
L
R
Pr
Y
Pb
AUDIO
OUT
Pr/Cr
Pb/Cb
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
2 4
3
1
SPEAKER SYSTEMS (8
Ω )
SURROUND
CENTER
FRONT
L
R
SL
SR
C
SUB-WOOFER
P-SCAN
ON OFF
ANT IN
TO TV
VCR or
Cable/Satellite
Box
Connections (optional)
Viewing and listening to the playback
1
Connect the VCR or Cable/Satellite Box to the
TV as shown.
2
Connect the DVD system’s AUX IN (R/L)
jacks to the AUDIO OUT jacks on the VCR or
cable/satellite box.
Before starting operation, press AUX/DI on
the remote to select “AUX” in order to activate
the input source.
Using the VCR for recording DVDs
Some DVDs are copy-protected. You cannot
record or dub protected discs using a VCR.
3
Connect the DVD system’s CVBS jack to the
VIDEO IN jack on the VCR.
4
Connect the DVD system’s LINE OUT (R/L)
jacks to the AUDIO IN jacks on the VCR.
This will allow you to make analog stereo (two
channel, right and left) recordings.
To view DVD playback while recording,
you must connect the DVD system to your TV
using the S-VIDEO (as shown above) or the
Component (Pr Pb Y) video connection.
Connecting digital audio
equipment
DIGITAL
OUT
DIGITAL
IN
AUX
IN
TV
IN
AUDIO
AM
L
R
DIGITAL IN
DIGITAL OUT
2
1
SPEAKER SYSTEMS (8
Ω )
SURROUND
CENTER
FRONT
L
R
SL
SR
C
SUB-WOOFER
(for example)
CD Recorder
Listening to the playback
1
Connect the DVD system’s DIGITAL IN jack
to the DIGITAL OUT jack on a digital audio
device.
Before starting operation, press AUX/DI on
the remote to select “DI” in order to activate
the input source.
Recording (digital)
2
Connect the DVD system’s DIGITAL OUT
jack to the DIGITAL IN jack on a digital
recording device (DTS-Digital Theater System
compatible, with a Dolby Digital decoder, for
example.)
Before starting operation, set the DIGITAL
OUTPUT according to the audio connection.
(See page 33 “Setting the digital output”.)
Notes:
– Some DVDs are copy-protected. You cannot
record the disc through a VCR or digital recording
device.
– Always refer to the owner’s manual of the other
equipment for complete connection and usage
details.
