• Two 75-ohm coaxial cables with F-type connectors
• If your TV does not have a VHF 75-ohm F-connector, you will also
need a 75-ohm-to-300-ohm matching transformer
• One video shielded cable with RCA Plugs and one audio (stereo)
cable with RCA Plugs OR Dubbing Cable for VCR/DVD with RCA
Plugs OR 3 shielded cables with RCA Plugs
• One S-Video cable
PARTS REQUIRED
continued

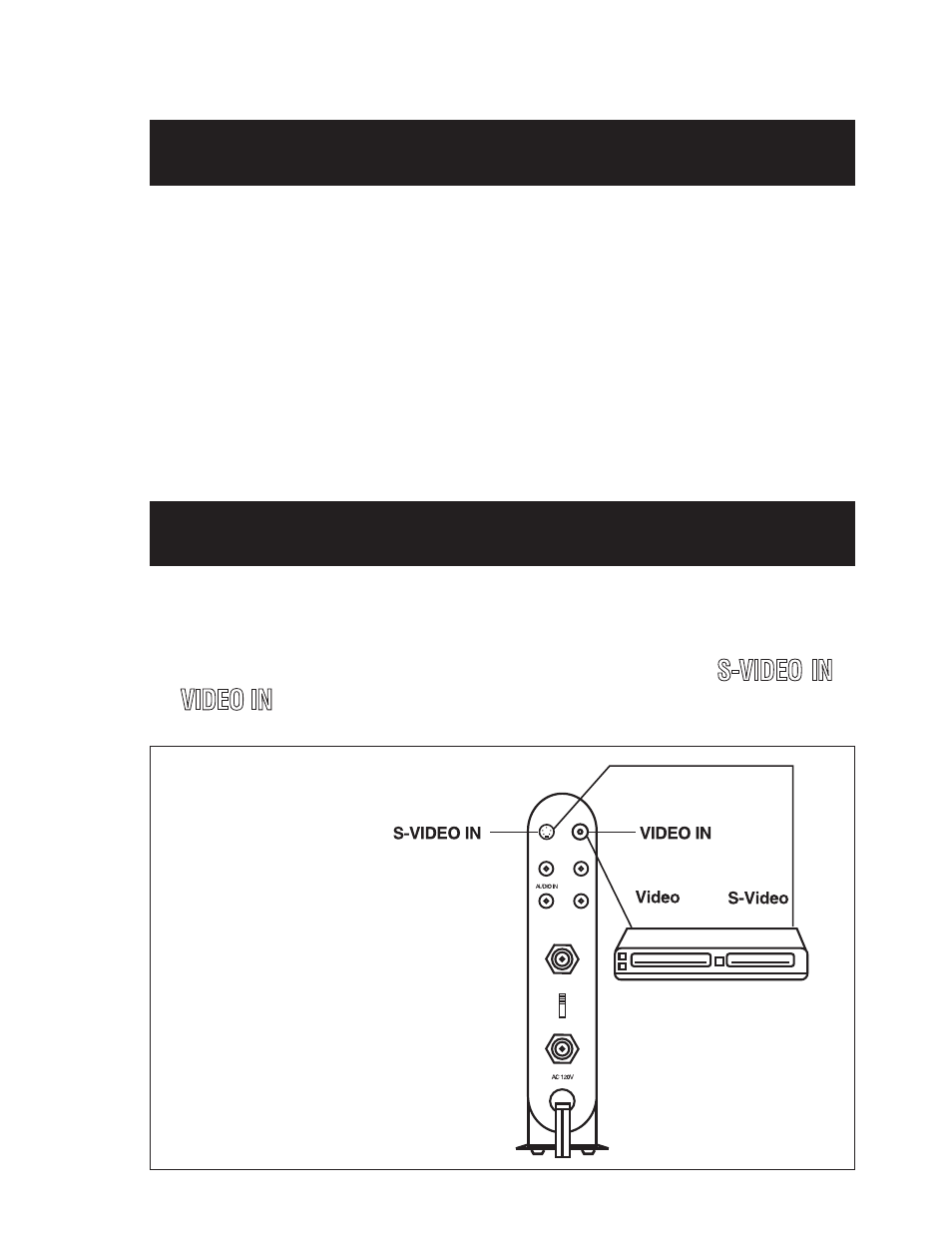

Follow these steps to connect your RF Modulator:
1. Connect an S-Video or video cable between the S-Video or video
output jack on your video source and the RF Modulator’s S-VIDEO IN
or VIDEO IN jack.
CONNECTIONS
Jack Jack
OR
Output
Video Source
Output
ANT IN
TO TV
4
3
Channel
AUDIO OUT
L
R
VIDEO S-VIDEO
60Hz/4.5W
Note: If both the
S-Video and standard
video are hooked up,
the S-Video will be
given priority
