2-10
Installation Instructions
Power Steering Conversion Kit
A
B

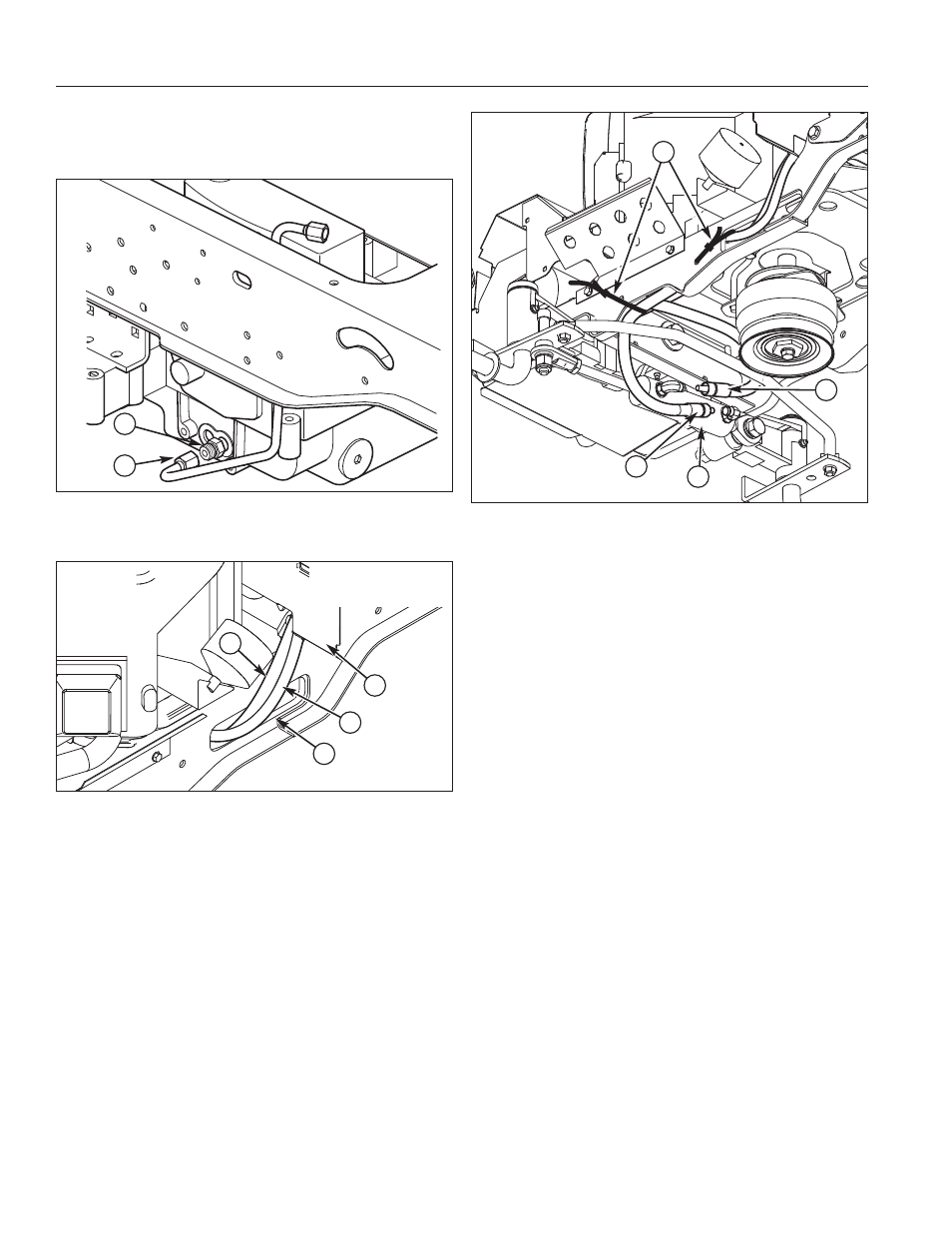

Figure 18 Hydraulic Tube to Transmission
A. Transmission Port
B. Hydraulic Tube
Figure 19 Hydraulic Hose Routing
A. Bulkhead Heatshield
B. Frame
C. Hydraulic Hose (labeled “Port R”)
D. Hydraulic Hose (labeled “Port L”)
D
C
B
A
D
B
A
C
Figure 20 Steering Hose Connection
A. Steering Cylinder
B. Hydraulic Hose (labeled “Port L”)
C. Hydraulic Hose (labeled “Port R”)
D. Tie Wraps
12. Route and attach hydraulic hose (B, Figure 20)
(labeled “Port L”) to hose fitting on left side of steer-
ing cylinder (A) as shown.
13. Route and attach hydraulic hose (C) (labeled “Port
R”) to hose fitting on right side of steering cylinder (A)
as shown.
14. Secure hydraulic hoses (B) and (C) to frame using
tie wraps (D) as shown.
NOTE: The hoses must be secured to the frame to
prevent any movement and prevent contact with the
steering or clutch.
11. Attach hydraulic tube (B, Figure 18) to transmission
(A) as shown.
