Installing Tailgate and Splashguard
Nomad:
1. Loop tie-down straps over corners of side panels and
join male buckle sections on straps to female buckle
sections inside trailer.
FIGURE 3 & PHOTO 8
2. To accommodate different sizes of cargo, tighten or
loosen the webbing straps as needed. PHOTO 8
Installing Roll Bar and Cover
Nomad:
1. Place cover over side panels, with “Nomad” logo at trailer
front. FIGURE 3
2. Slip one roll bar knob through a grommet on
cover. FIGURE 3
3. Slide roll bar through casing in divider, and match roll bar
end with its corresponding hole on side rail.
4. Thread roll bar knob through side rail, and tighten.
5. Repeat for knob on other side.
6. Loop O-rings on cover over trailer frame tube ends.
Make sure cover extends over top of side panels.
Installing Tow Bar
1. Slide tow bar through both tow bar mounts on left side.
2. Match rear tow bar hole with rear mount hole.
3. Insert the retaining pin through both holes, and lock
retaining hoop securely. PHOTO 9 & PHOTO 10
6 B U R L E Y N O M A D A N D F L A T B E D O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L

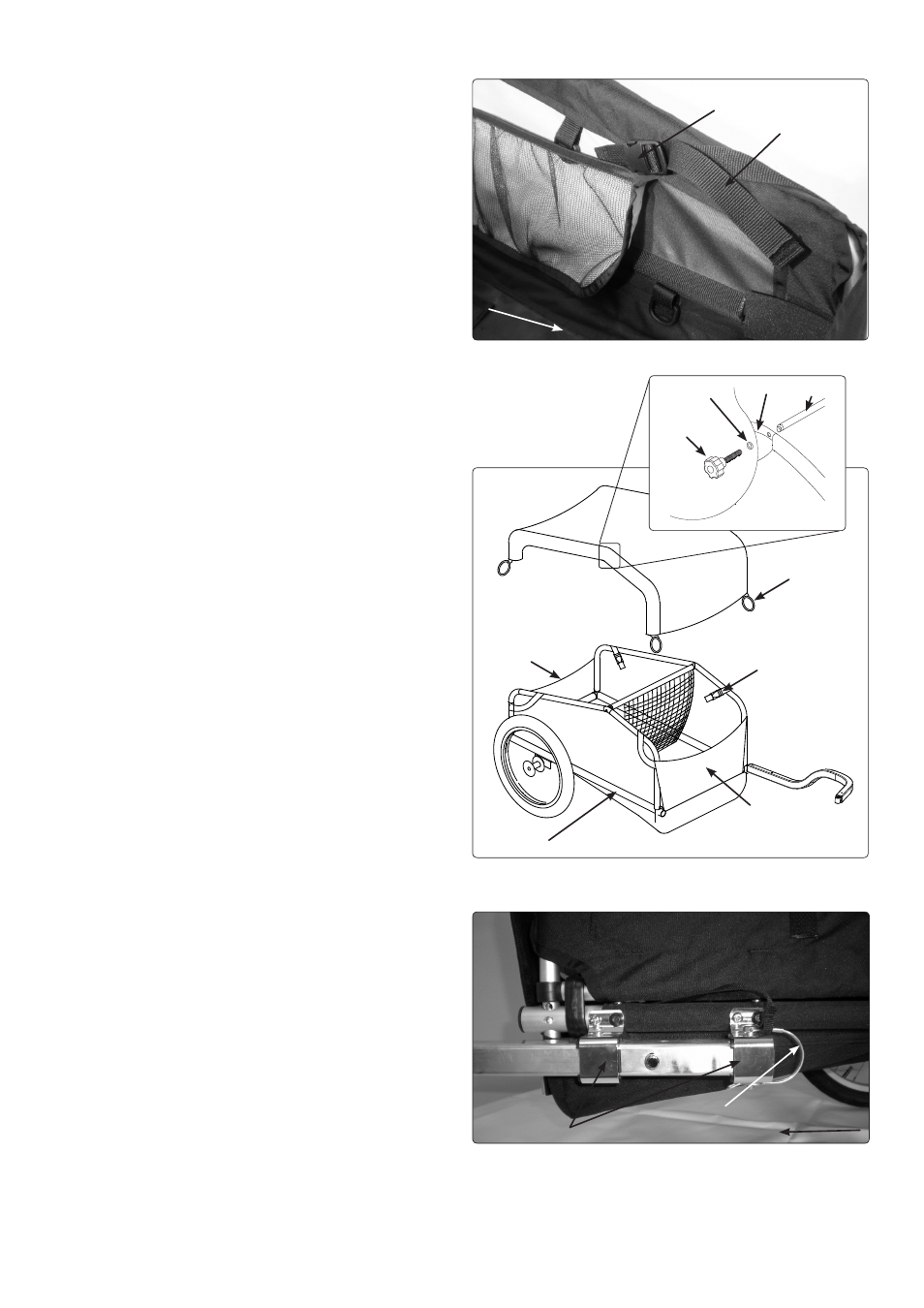

PHOTO 8
FIGURE 3: NOMAD
O-Ring
Splashguard
Trailer Frame
Tailgate
PHOTO 9: NOMAD TOW BAR INSTALLATION
Trailer Front
Retaining Pin
Tow Bar Mounts
Webbing Strap
Webbing Strap
Buckle
Trailer
Rear
Roll Bar
Roll Bar Knob
Cover Grommet
Side Rail
