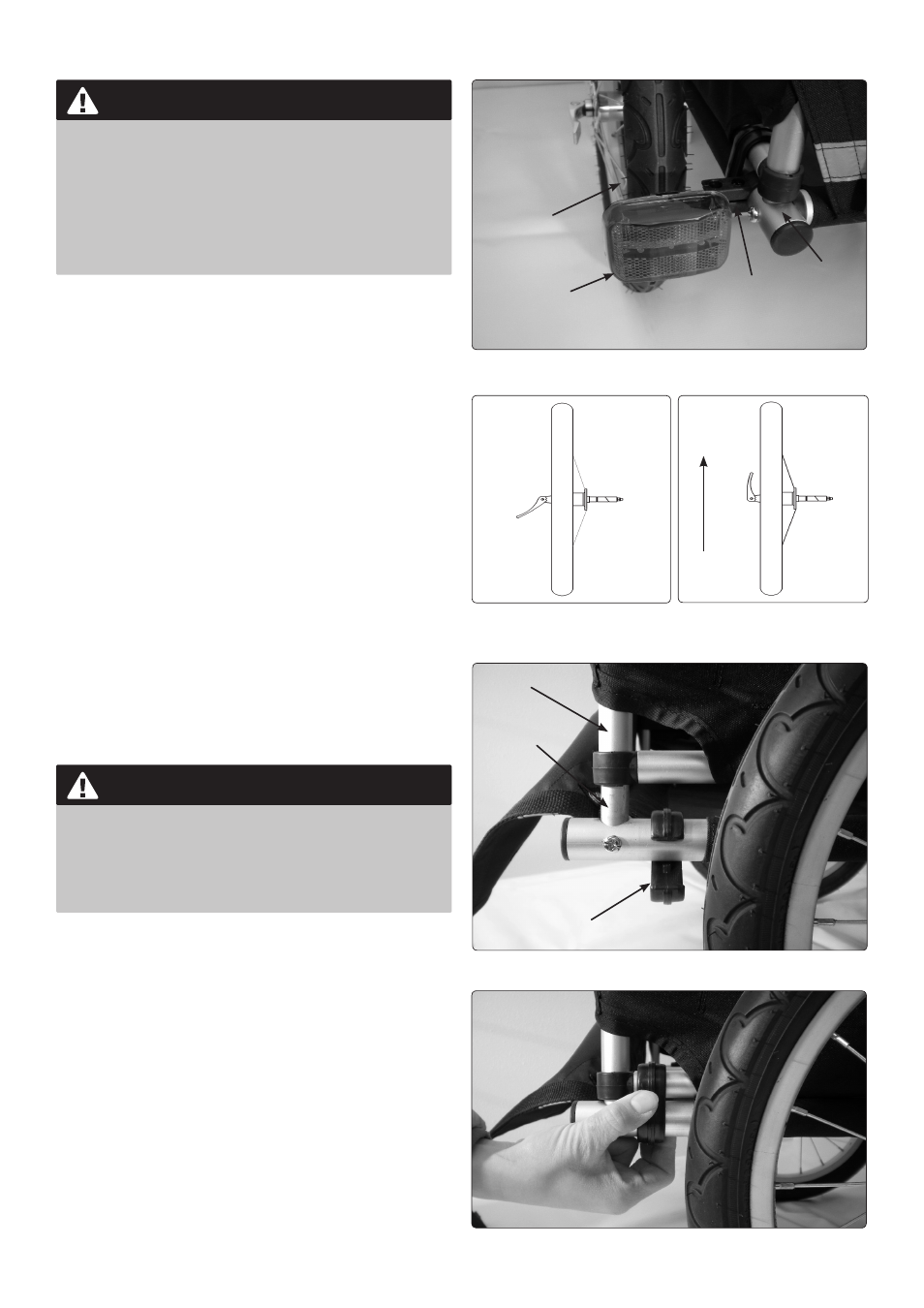

Burley Cargo - Manual (Page 4)

4 B U R L E Y N O M A D A N D F L A T B E D O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L
WARNING
TRAILERS CAN TIP OVER, CAUSING DAMAGE TO TRAILER AND
SERIOUS INJURY TO CYCLIST. AVOID CAUSES OF TIP OVER,
ESPECIALLY:
• HITTING POTHOLES, CURBS, OTHER ROAD OBSTRUCTIONS
• TAKING TURNS TOO FAST
• SUDDEN SWERVING
• IMPROPER WHEEL INSTALLATION OR TIRE INFLATION
Mounting the Light
Nomad:
1. Insert batteries into light.
2. Screw light and bracket together.
3. Mount light/bracket horizontally on rear corner of
main frame tube, on side closest to traffic. PHOTO 1
Attaching Wheels
1. Insert wheel axle assembly completely into trailer
axle. FIGURE 1
2. Close quick release lever, with lever aimed at trailer rear.
A properly adjusted quick release lever should leave an
imprint on your palm when the lever is rotated to the
closed position.
FIGURE 2
3. Verify that tires are inflated to pressure marked on tire
side wall.
4. To remove wheel from trailer axle, open quick
release lever.
WARNING
MAKE SURE WHEELS ARE HELD SECURELY, WITH WHEEL
SHAFT FULLY INSERTED INTO HOLLOW AXLE. YOU SHOULD NOT
BE ABLE TO ROCK OR SHIFT WHEELS. IMPROPERLY INSTALLED
WHEELS CAN FALL OFF, CAUSING AN ACCIDENT OR
SERIOUS INJURY.
Installing Side Rails
Nomad:
1. On trailer sides, flip the four C-shaped side panel
hold-downs to outside of trailer frame. PHOTO 2
2. Slide vertical side rails down over side rail guides on
trailer sides, with narrower end of side panels to the rear
and “Burley” logo facing outward.
PHOTOS 2 & 4
3. Snap all four side panel hold-downs over side panel
tubing. PHOTO 3
PHOTO 1: Nomad light/bracket mounted on rear corner of main frame tube
FIGURE 1: Quick release lever in unlocked
“open” position (Top View)
PHOTO 2
Wheel
Main
Frame
Tube Red Light
Bracket
FIGURE 2: Quick release lever in locked
“closed” position (Top View)
Trailer
Rear
Side Rail Guide
Side Rail
C-Shaped Hold-down
PHOTO 3: Hold-down locked over side panel tubing
