Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
! WARNING
Maximum capacities:
Material Size Material Size
Wood 2-3/8" (60mm) Mild steel 3/8" (10mm)
Plastic 1-1/4" (32mm) Stainless steel 1/8" (3mm)
Aluminum 3/4" (20mm) Alloy steel 1/8" (3mm)
Non-ferrous metal 3/4" (20mm)

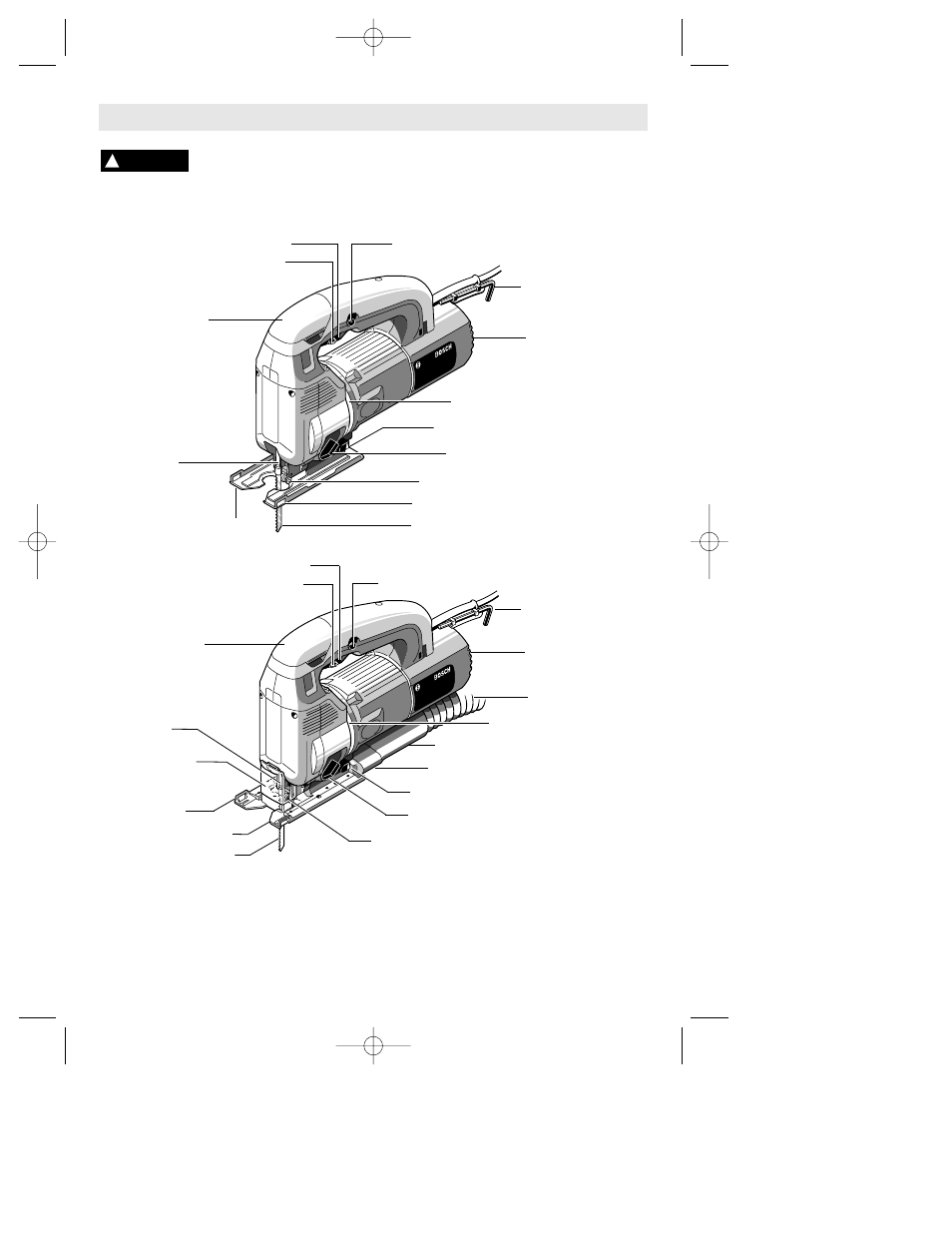

BLADE CHANGE
KNOB
"LOCK-ON" BUTTON
TRIGGER PRESET SPEED
ADJUSTING DIAL
TRIGGER SWITCH
ALLEN WRENCH
5 MM
VENTILATION
OPENINGS
CHIP BLOWER LEVER
BLADE ROLLER GUIDE
BLADE ORBIT SELECTOR LEVER
CUTTING GUIDE SLOTS
BLADE
BLADE
PLUNGER
BASE
VENTILATION
OPENINGS
BLADE CHANGE
KNOB
"LOCK-ON"
BUTTON
TRIGGER PRESET SPEED
ADJUSTING DIAL
TRIGGER SWITCH
ALLEN WRENCH
5 MM
VENTILATION OPENINGS
CHIP BLOWER LEVER
BLADE ROLLER GUIDE
BLADE ORBIT SELECTOR LEVER
CUTTING
GUIDE SLOTS
BLADE
BLADE
PLUNGER
BASE
VENTILATION
OPENINGS
Jigsaws
VACUUM HOSE
DUST PORT CONNECTOR (1587DVS)
DUST PORT (1587DVS)
DUST COVER
(1587DVS)
