**LOOP BYPASS OPTION
**LOOP BYPASS OPTION
Internal switch toggles between two bypass modes: Loop Bypass or Loop
On. When in Loop Bypass mode, the Send/Return effects loop is bypassed
when the pedal is off. In Loop On mode, the Send/Return effects loop is
active while the pedal is off. This can be accessed by removing the back
plate of the pedal.
Up - Loop On (factory setting)
Down - Loop Bypass
M195 NOISE CLAMP
DESCRIPTION
• Eliminates hiss and excess noise
from your effects chain
• A single Trigger knob sets the
volume threshold
• Capable of reducing noise up
to 26 dB
• Maintains riff definition at extreme
gain levels
POWER
The MXR Noise Clamp can be
powered by one 9 volt battery
(accessed by removing the bottom
plate of the pedal), a Dunlop
ECB003 AC adapter (ECB003E in
Europe) or a Dunlop DCB10 DC
Brick power supply.

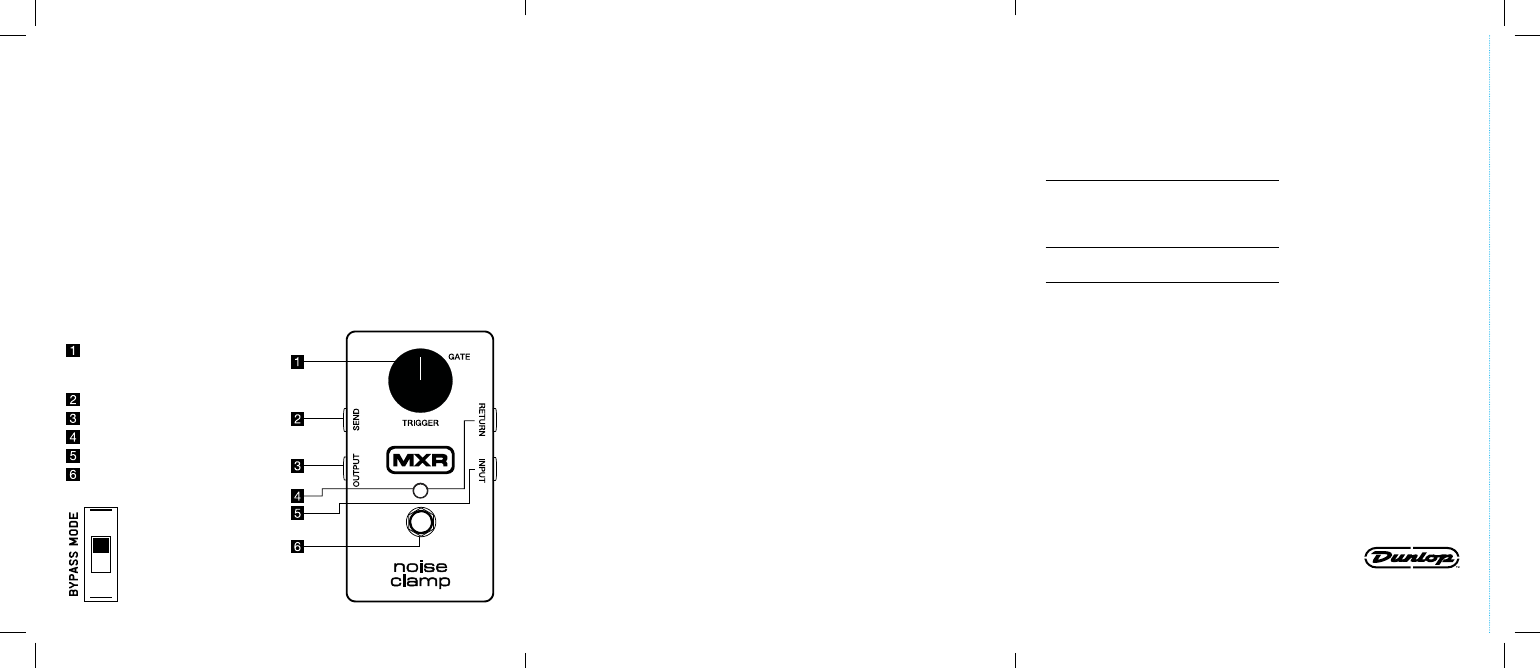

CONTROLS
TRIGGER knob sets volume
threshold for when the Clamp
is active
SEND Front of FX loop
OUTPUT Goes to amp
RETURN End of effects loop
INPUT To guitar
FOOTSWITCH toggles effect
on/bypass
DIRECTIONS
• Run a cable from your guitar to
your Noise Clamp’s Input jack
and run another cable from the
Noise Clamp’s output jack to
your amplifier.
• Run a cable from the Noise
Clamp’s Send jack to the input
of the first pedal in your effects
chain. Run another cable from the
Noise Clamp’s Return jack to the
output jack of the last pedal in
your effects chain.
• Turn the effect on by depressing
the footswitch.
SPECIFICATIONS
IMPEDANCE
Input, Return
1 MΩ
Output, Send 1 kΩ
Max Level 10 dBV
Gate Attenuation -26 dBV
Signal to Noise 99.5 dBA
THD* 0.01%
Attack Time 3 ms
Release Time 10 ms
Bypass Buffered
Current Draw 13 mA
Power Supply DC 9 volts
0 dBV = 1 Vrms
* Measured at 1 kHz, -10 dBV
• The volume threshold is the
minimum level required to turn off
the noise clamp.
• Rotating the Trigger knob
clockwise raises the Noise
Clamp’s volume threshold for
hard clamping, while rotating
it counterclockwise lowers its
volume threshold to let through
quieter notes.
