4. Input modules
Technical info:
• HDSDI data in (SMPTE292M).
• HDSDI loop through (SMPTE292M).
• Coax (75 Ohm).
• When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the
system acknowledges the module.
• Supported HDSDI standards:
- Progressive:
o 1280x720/60/1:1/ (SMPTE 296M)
o 1280x720/59.94/1:1/ (SMPTE 296M)
o 1920x1080/30/1:1/ (SMPTE 274M)
o 1920x1080/29.97/1:1/ (SMPTE 274M)
o 1920x1080/25/1:1/ (SMPTE 274M)
o 1920x1080/24/1:1/ (SMPTE 274M)
o 1920x1080/23.98/1:1/ (SMPTE 274M)
- Interlaced:
o 1920x1035/60/2:1/ (SMPTE 260M)
o 1920x1035/59.94/2:1/ (SMPTE 260M)
o 1920x1080/60/2:1/ (SMPTE 274M)
o 1920x1080/59.94/2:1/ (SMPTE 274M)
o 1920x1080/50/2:1/ (SMPTE 274M)
o 1920/1080/50/2:1 (1250)/ (SMPTE 295M)
o 1920x1080/24/Segmented/ (SMPTE 274M)
o 1920x1080//23.98/Segmented/ (SMPTE 274M)

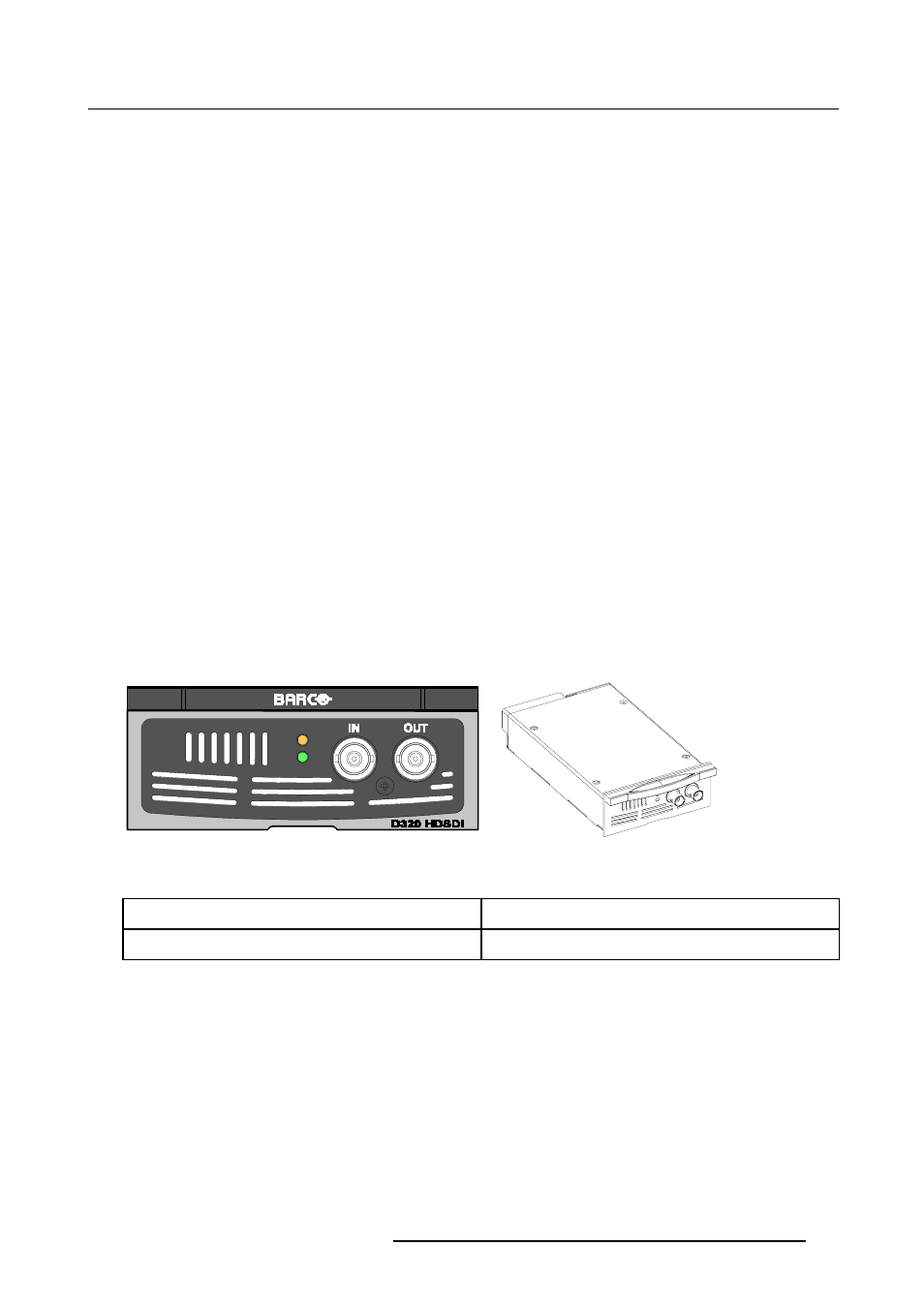

Image 4-5
Image 4-6
Order info:
Article No. Description
R9850980 D320PL Digitizer HDSDI input module
R5976470 D320PL DIGITIZER 13122002 17
