4. Input modules
4. INPUT MODULES
Overview
• DVI input module
• SDI input module
• HDSDI input module
• CVBS / S-VID input module
• YUV / RG(s)B input module
• RGB analog input module
• Dummy input module
4.1 DVI input module
Technical info:
• Computer generated graphical source.
• DVI data in.
• 162 MHz pixel clock.
• Resolution from VGA to UXGA/60 Hz.
• DVI compliant.
• DVI loop through.
• Amber LED (upper LED on the front side) will be lit indicating module start up.
• When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the
system acknowledges the module.

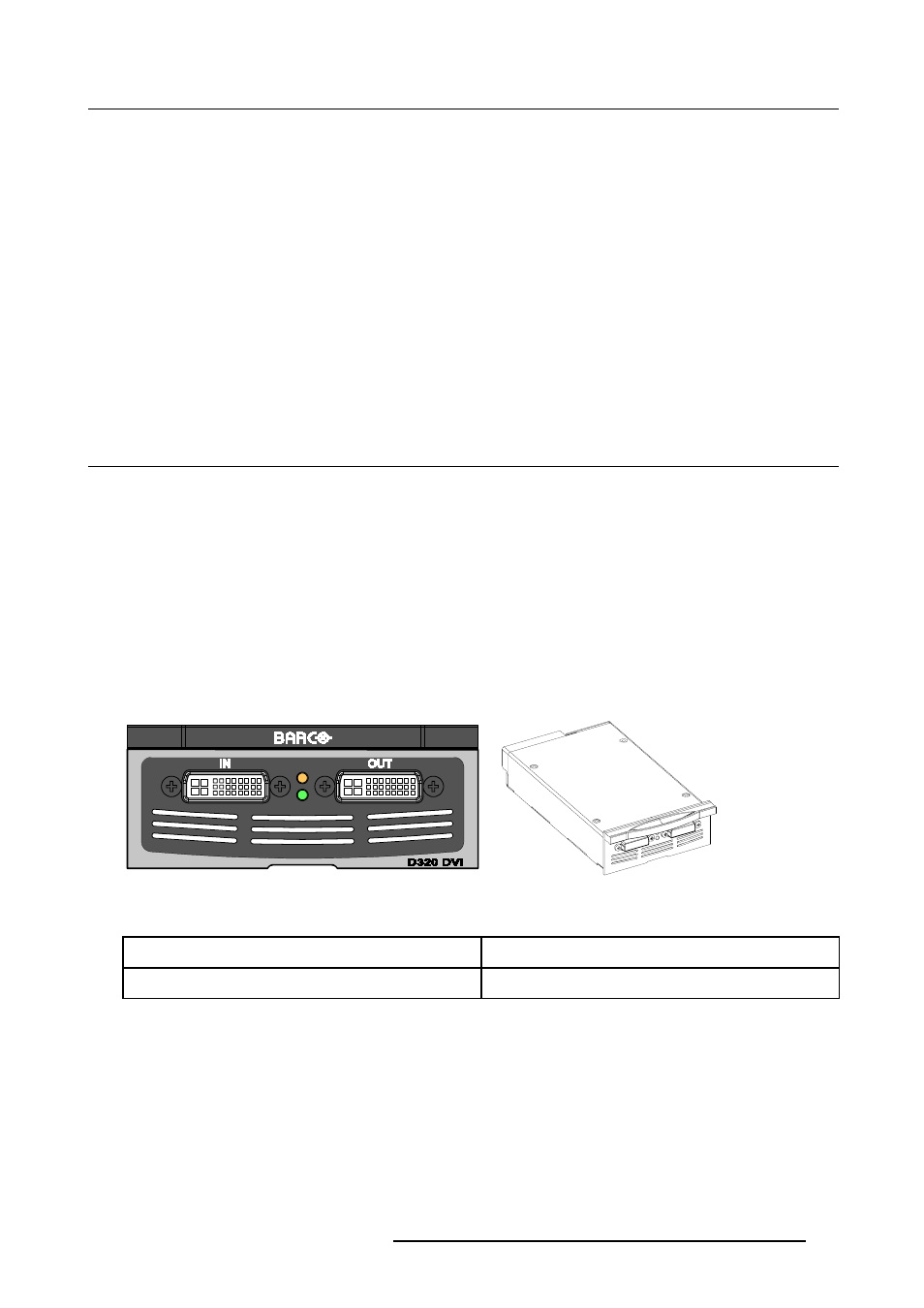

Image 4-1
Image 4-2
Order info:
Article No. Description
R9850960 D320PL Digitizer DVI input module
R5976470 D320PL DIGITIZER 13122002 15
