1. Standard Equipment and Specifications
Specifications will vary with tractor, tire size, hydraulic system and bucket used. The specifications are given
for a loader equipped with 72” material bucket operated with an average tractor hydraulic system of 10.8 GPM
with engine operating at 1950 RPM and control valve relief setting of 2750 PSI.
Horsepower Range
30-90 HP
System pressure/flow rate
2750 PSI/ 10.8 GPM
Lift Capacity to maximum height at pivot pin
2720 lbs.
Breakout force at pivot pin
6530 lbs.
Rollback force at ground line
2600 lbs.
Total weight with bucket (approx.)
1550 lbs.
Raising time to full height
6.83 seconds
Lower time
4.88 seconds
Attachment dump time (regen.)
4.92 (3.40) seconds
Attachment rollback time
3.65 seconds
Hydraulic system flow
10.8 GPM
System pressure at rated flow
2750 PSI

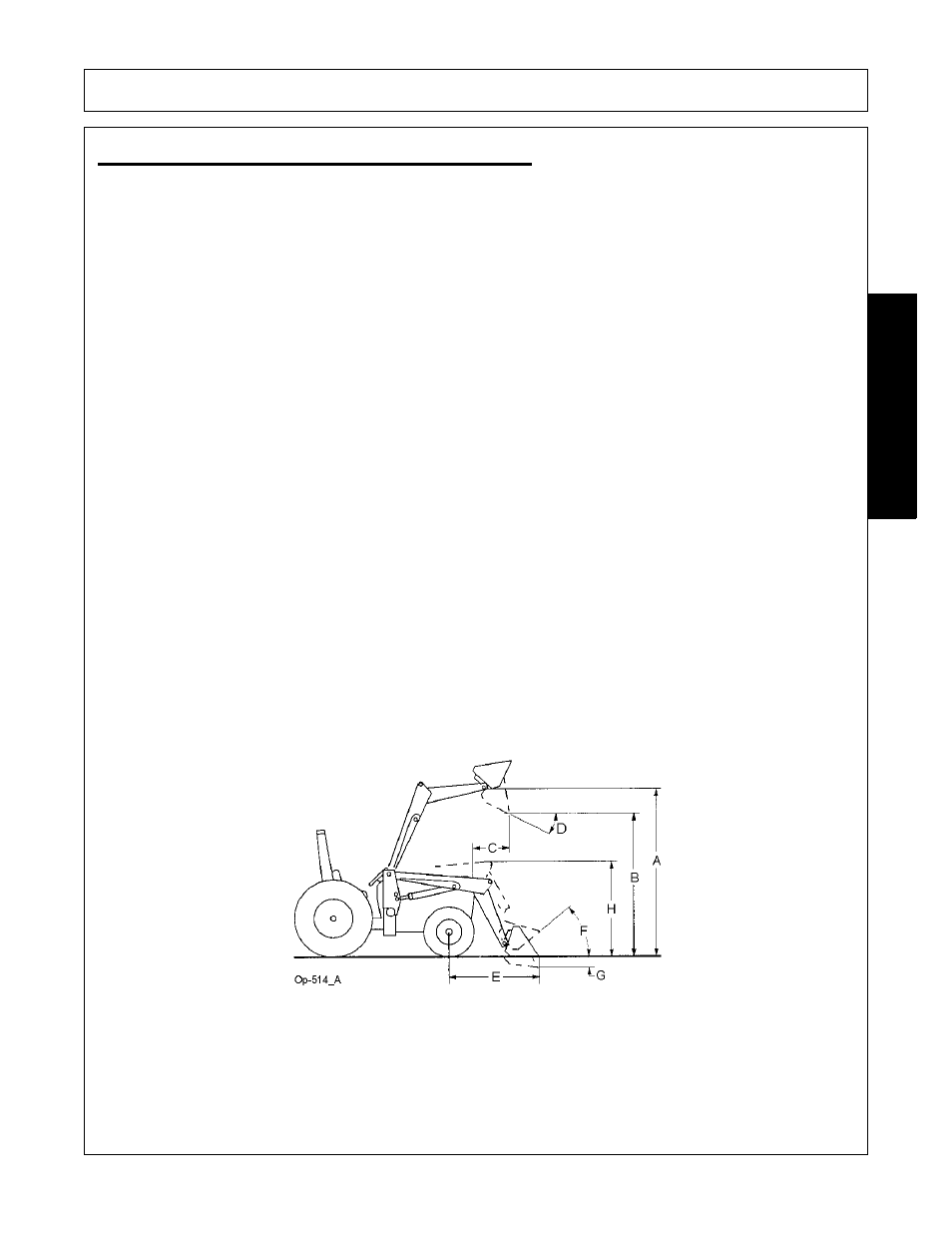

(A)
Maximum Lift Height at Pivot Pin
119”
(B)
Clearance with Bucket Dumped
93”
(C)
Reach at Maximum Height
33”
(D)
Maximum Dump Angle
44°
(E)
Reach with Attachment on Ground
69”
(F)
Attachment Rollback Angle
23°
(G)
Digging Depth
2”
(H)
Overall Height in Carry Position
65”
(Manufacturers estimated specifications and design subject to change without notice.)
