ITEM # PART # DESCRIPTION
1 See Centerfire Spec Sheet Nozzle Assy
2 See Centerfire Spec Sheet Contact Tip
3 See Centerfire Spec Sheet Gas Diffuser
4 See Centerfire Spec Sheet Cap
5 See Neck Spec Sheet Neck
6 See Jump Liner Spec Sheet Jump Liner
7 2660001 Terminal, Quick Disconnect (2 req’d)
8 1780062 Handle Half, Upper
9 2620054 Switch Assy, Handle Half, Lower
10 4207 Post Fastener (2 Req'd)
11 4209 Handle Screw (2 Req'd)
12 1880194 Handle Kit - (Includes: (1) #8, (1) #9,
(2) #10, (2) #11)
13 4932 Butt Connector (2 Req'd)
14 2520007 Cap, Rigid Strain Relief
15 2520048 Spring, Strain Relief
16 Rigid Strain Relief
2520073 Strain Relief with Installed Gas Pin
(Bernard Direct Plug)
2520047 Strain Relief (Euro Direct Plug)
2520047E Strain Relief with Trigger Cable
Adapter (OXO, Tweco 4 w/Twist Lock)
2520047H Strain Relief with Trigger Cable
Adapter (L-Tec, Hobart Direct Plug)
2520047L Strain Relief with Trigger Cable
Adapter (Lincoln Direct Plug)
2520047T Strain Relief with Trigger Cable
Adapter (National, Tweco Direct Plug)
2520047M Strain Relief with Trigger Cable
Adapter (All Other Direct Plugs)
17 See Direct Plug Spec Sheet Direct Plug Components
18 See Liner Spec Sheet Liner
19 1010027 Adapter Block (Not Req'd on Bernard
or Euro Direct Plug)
20 W11127-002 Screw, Strain Relief (Not Req'd on
Bernard Direct Plug)
©2008 Bernard Printed in U.S.A.
AM P
1
2
4
5
6
7
8
9
10
11
12
14
15
16
13
3
16
17
17
18
18
19
20

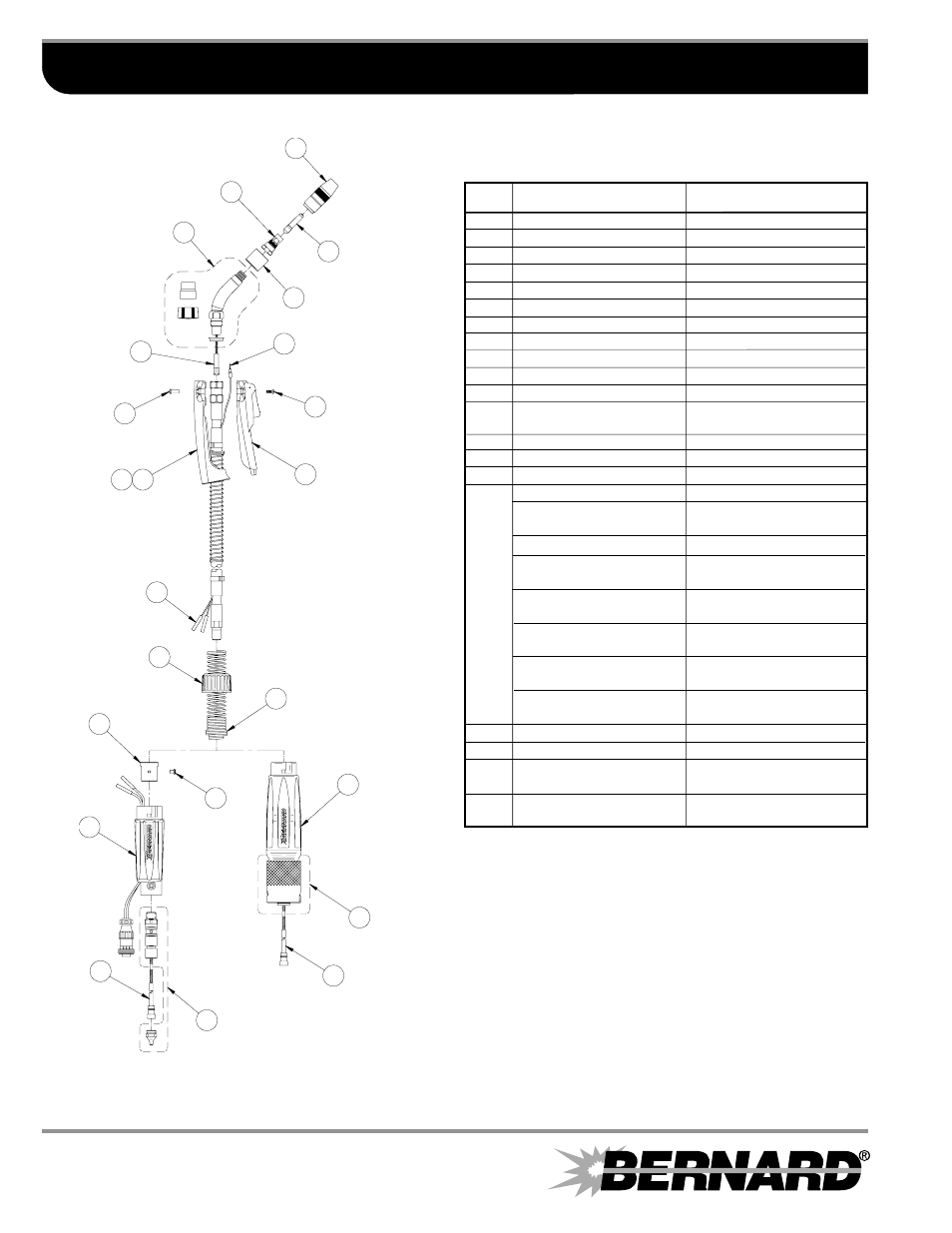

Replacement Parts List
